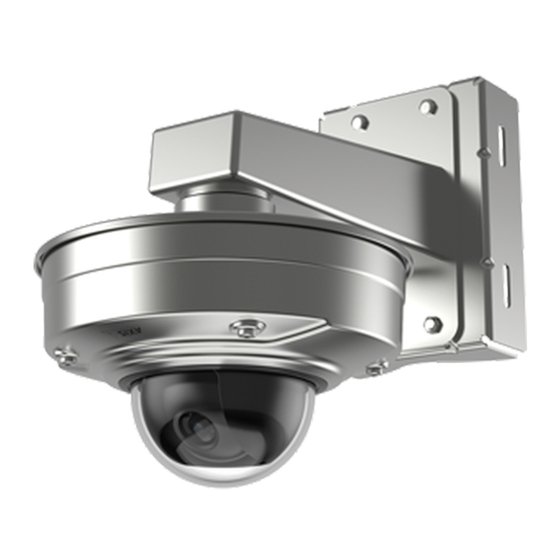

AXIS Q3505-SVE Mk II Fixed Dome Network Camera
User Manual

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für Axis Q3505-SVE

Inhaltszusammenfassung für Axis Q3505-SVE

  • Seite 1 AXIS Q3505-SVE Mk II Fixed Dome Network Camera User Manual...
  • Seite 1 AXIS Q3505-SVE Mk II Fixed Dome Network Camera User Manual...
  • Seite 2 This manual is intended for administrators and users of • Low Voltage (LVD) Directive 2014/35/EU. See Safety on page 2 . AXIS Q3505-SVE Mk II Fixed Dome Network Camera, and is applicable • Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU.
  • Seite 2 This manual is intended for administrators and users of • Low Voltage (LVD) Directive 2014/35/EU. See Safety on page 2 . AXIS Q3505-SVE Mk II Fixed Dome Network Camera, and is applicable • Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU.
  • Seite 3 For information about Axis’ product warranty and thereto related information, go to www.axis.com/warranty/ Battery The Axis product uses a 3.0 V CR2032 lithium battery as the power Learn more! supply for its internal real-time clock (RTC). Under normal conditions Visit Axis learning center www.axis.com/academy/ for useful trainings, this battery will last for a minimum of five years.
  • Seite 3 For information about Axis’ product warranty and thereto related information, go to www.axis.com/warranty/ Battery The Axis product uses a 3.0 V CR2032 lithium battery as the power Learn more! supply for its internal real-time clock (RTC). Under normal conditions Visit Axis learning center www.axis.com/academy/ for useful trainings, this battery will last for a minimum of five years.

  • Seite 4: Inhaltsverzeichnis

    Application Considerations ........AXIS Video Motion Detection ....... . .

  • Seite 4: Inhaltsverzeichnis

    Application Considerations ........AXIS Video Motion Detection ....... . .
  • Seite 5 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Table of Contents Set Up Recurrences ..........
  • Seite 5 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Table of Contents Set Up Recurrences ..........

  • Seite 6: Safety Information

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera Safety information Safety information Hazard levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Seite 6: Safety Information

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera Safety information Safety information Hazard levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Seite 7: Hardware Overview

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera Hardware overview Hardware overview For specifications of the hardware components, see Technical specifications on page 71. Mounting bracket Unit casing Cable gasket, network cable Cable gasket, multicable Camera unit View protection Dome cover...

  • Seite 7: Hardware Overview

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera Hardware overview Hardware overview For specifications of the hardware components, see Technical specifications on page 71. Mounting bracket Unit casing Cable gasket, network cable Cable gasket, multicable Camera unit View protection Dome cover...
  • Seite 8 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Hardware overview 3. Carefully rinse with clean hot water. 4. Dry thoroughly with a chamois or a cellulose sponge to prevent water stains. NOTICE TICE TICE • Never use abrasive cleaners, squeegees and/or other cleaning implements that may scratch or gouge the coating.
  • Seite 8 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Hardware overview 3. Carefully rinse with clean hot water. 4. Dry thoroughly with a chamois or a cellulose sponge to prevent water stains. NOTICE TICE TICE • Never use abrasive cleaners, squeegees and/or other cleaning implements that may scratch or gouge the coating.

  • Seite 9: Access The Product

    To view streaming video in Internet Explorer, allow installation of AXIS Media Control (AMC) when prompted. The Axis product includes one (1) H.264 decoder license for viewing video streams and one (1) AAC audio license. The licenses are automatically installed with AMC. The administrator can disable the installation of the decoders to prevent installation of unlicensed copies.

  • Seite 9: Access The Product

    To view streaming video in Internet Explorer, allow installation of AXIS Media Control (AMC) when prompted. The Axis product includes one (1) H.264 decoder license for viewing video streams and one (1) AAC audio license. The licenses are automatically installed with AMC. The administrator can disable the installation of the decoders to prevent installation of unlicensed copies.

  • Seite 10: Set The Root Password

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 65) or by resetting the product to factory default.

  • Seite 10: Set The Root Password

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 65) or by resetting the product to factory default.

  • Seite 11: The Live View Page

    Manual Trigger on page 12. Click Snapshot to save a snapshot of the video image. This button is primarily intended for use when the AXIS Media Control viewer toolbar is not available. Enable this button from Live View Config > Action Buttons.

  • Seite 11: The Live View Page

    Manual Trigger on page 12. Click Snapshot to save a snapshot of the video image. This button is primarily intended for use when the AXIS Media Control viewer toolbar is not available. Enable this button from Live View Config > Action Buttons.
  • Seite 12 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 15 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Seite 12 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 15 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Seite 13 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Access the product Use the slider to control the volume of the speakers and the microphone. Half-duplex mode The Talk/Listen button is used to switch between sending and receiving audio. The button can be configured from the Audio tab in the AMC Control panel: •...
  • Seite 13 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Access the product Use the slider to control the volume of the speakers and the microphone. Half-duplex mode The Talk/Listen button is used to switch between sending and receiving audio. The button can be configured from the Audio tab in the AMC Control panel: •...

  • Seite 14: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 10 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Seite 14: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 10 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Seite 15: Axis Media Control (Amc)

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Seite 15: Axis Media Control (Amc)

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.
  • Seite 16 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Media Streams • Windows Media Player supports simplex audio. The following paths can be used: Unicast via RTP: axrtpu://<ip>/axis-media/media.amp Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp Multicast: axrtpm://<ip>/axis-media/media.amp •...
  • Seite 16 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Media Streams • Windows Media Player supports simplex audio. The following paths can be used: Unicast via RTP: axrtpu://<ip>/axis-media/media.amp Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp Multicast: axrtpm://<ip>/axis-media/media.amp •...

  • Seite 17: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Seite 17: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Seite 18: Video And Audio

    Use the mouse to move and resize the rectangle, or enter the number of pixels in the Width and Height fields and click Apply. • When accessing the Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle. Image...

  • Seite 18: Video And Audio

    Use the mouse to move and resize the rectangle, or enter the number of pixels in the Width and Height fields and click Apply. • When accessing the Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle. Image...
  • Seite 19 Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.
  • Seite 19 Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.
  • Seite 20 Image details that are important for forensic video analysis, for example faces and license plates, are preserved with enough number of bits. Axis’ Zipstream Technology for H.264 conforms to the H.264 standard and is compatible with third-party clients and VMS solutions that decode H.264 video.
  • Seite 20 Image details that are important for forensic video analysis, for example faces and license plates, are preserved with enough number of bits. Axis’ Zipstream Technology for H.264 conforms to the H.264 standard and is compatible with third-party clients and VMS solutions that decode H.264 video.

  • Seite 21: About Stream Profiles

    About capture modes Capture mode defines the maximum resolution and maximum frame rate available in the Axis product. A capture mode with a large maximum resolution has a reduced maximum frame rate and vice versa. The capture mode setting also affects the camera’s field of view as the effective size of the image sensor differs between capture modes.

  • Seite 21: About Stream Profiles

    About capture modes Capture mode defines the maximum resolution and maximum frame rate available in the Axis product. A capture mode with a large maximum resolution has a reduced maximum frame rate and vice versa. The capture mode setting also affects the camera’s field of view as the effective size of the image sensor differs between capture modes.
  • Seite 22 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Video and Audio 2. Select the new capture mode. 3. Click Save. Note When the capture mode is changed, the camera needs to reboot for the changes to take effect. About scene profiles A scene profile is a set of predefined image appearance settings including color level, brightness, sharpness, contrast and local contrast.
  • Seite 22 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Video and Audio 2. Select the new capture mode. 3. Click Save. Note When the capture mode is changed, the camera needs to reboot for the changes to take effect. About scene profiles A scene profile is a set of predefined image appearance settings including color level, brightness, sharpness, contrast and local contrast.

  • Seite 23: White Balance

    To change this setting go to Setup > Video & Audio > Camera Settings White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Seite 23: White Balance

    To change this setting go to Setup > Video & Audio > Camera Settings White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Seite 24: View Area

    The shutter and gain settings affect the amount of motion blur and noise in the image. To adapt to different lighting, available storage space and bandwidth, it is often necessary to prioritize either low motion blur or low noise. The Axis product allows different prioritization in normal light and in low light.

  • Seite 24: View Area

    The shutter and gain settings affect the amount of motion blur and noise in the image. To adapt to different lighting, available storage space and bandwidth, it is often necessary to prioritize either low motion blur or low noise. The Axis product allows different prioritization in normal light and in low light.

  • Seite 25: About Overlays

    To modify a view area, select the view area in the list and modify the settings as required. Click Save. To remove a view area, select the view area and click Remove. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. Note View areas will be disabled if Optical zoom for monitoring is selected.

  • Seite 25: About Overlays

    To modify a view area, select the view area in the list and modify the settings as required. Click Save. To remove a view area, select the view area and click Remove. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. Note View areas will be disabled if Optical zoom for monitoring is selected.

  • Seite 26: How To Include Overlay Text In An Action Rule

    An overlay image is a static image superimposed over the video stream. The image, for example a company logo, is first uploaded to the Axis product and then used to provide extra information or to mask a part of the image.

  • Seite 26: How To Include Overlay Text In An Action Rule

    An overlay image is a static image superimposed over the video stream. The image, for example a company logo, is first uploaded to the Axis product and then used to provide extra information or to mask a part of the image.

  • Seite 27: How To Include An Overlay Image

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video & Audio > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Seite 27: How To Include An Overlay Image

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video & Audio > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Seite 28: Set Up Audio

    The Axis product supports the following audio modes: • Full duplex – Simultaneous two-way audio allowing the Axis product to transmit and receive audio at the same time. There is no echo cancellation; if feedback loops appear, try moving the microphone or the speaker.

  • Seite 28: Set Up Audio

    The Axis product supports the following audio modes: • Full duplex – Simultaneous two-way audio allowing the Axis product to transmit and receive audio at the same time. There is no echo cancellation; if feedback loops appear, try moving the microphone or the speaker.

  • Seite 29: Audio Input

    • Half-duplex – Audio can be transmitted to and from the Axis product but only in one direction at a time. To transmit audio using the Live View page, use the Talk and Listen buttons, see AMC Audio Controls on page 12.

  • Seite 29: Audio Input

    • Half-duplex – Audio can be transmitted to and from the Axis product but only in one direction at a time. To transmit audio using the Live View page, use the Talk and Listen buttons, see AMC Audio Controls on page 12.

  • Seite 30: Audio Output

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events on page 45.

  • Seite 30: Audio Output

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events on page 45.

  • Seite 31: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...

  • Seite 31: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...

  • Seite 32: User Defined Links

    Defining the link as a web link will open the link in a new window. Output Buttons External I/O devices connected to the Axis product’s output ports can be controlled directly from the Live View page. To display output buttons in the Live View page: 1.

  • Seite 32: User Defined Links

    Defining the link as a web link will open the link in a new window. Output Buttons External I/O devices connected to the Axis product’s output ports can be controlled directly from the Live View page. To display output buttons in the Live View page: 1.

  • Seite 33: Ptz (Pan Tilt Zoom)

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) PTZ (pan, tilt and zoom) is available if you have enabled digital PTZ in the selected view area. For more information on view areas, see View Area on page 24.

  • Seite 33: Ptz (Pan Tilt Zoom)

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) PTZ (pan, tilt and zoom) is available if you have enabled digital PTZ in the selected view area. For more information on view areas, see View Area on page 24.

  • Seite 34: About Guard Tours

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera PTZ (Pan Tilt Zoom) It is also possible to, for example, record video or save images (take a snapshot) while the Gatekeeper is active. Go to Events and set up an action rule with PTZ Preset Reached as trigger.

  • Seite 34: About Guard Tours

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera PTZ (Pan Tilt Zoom) It is also possible to, for example, record video or save images (take a snapshot) while the Gatekeeper is active. Go to Events and set up an action rule with PTZ Preset Reached as trigger.
  • Seite 35 AXIS Q3505-SVE Mk II Fixed Dome Network Camera PTZ (Pan Tilt Zoom) • Pan control • Tilt control • Zoom control To disable specific controls, deselect the options under Enable/Disable controls. If using multiple view areas, deselecting a control will only disable the control in the selected view area.
  • Seite 35 AXIS Q3505-SVE Mk II Fixed Dome Network Camera PTZ (Pan Tilt Zoom) • Pan control • Tilt control • Zoom control To disable specific controls, deselect the options under Enable/Disable controls. If using multiple view areas, deselecting a control will only disable the control in the selected view area.

  • Seite 36: Detectors

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Seite 36: Detectors

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.
  • Seite 37 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Detectors 2. Set the audio alarm level and click Save. 3. Go to Events > Action Rules and set up an action rule, see Set Up Action Rules on page 45. Detected audio is indicated by colored peaks in the Activity indicator. An event is triggered when detected audio rises above or falls...
  • Seite 37 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Detectors 2. Set the audio alarm level and click Save. 3. Go to Events > Action Rules and set up an action rule, see Set Up Action Rules on page 45. Detected audio is indicated by colored peaks in the Activity indicator. An event is triggered when detected audio rises above or falls...

  • Seite 38: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...

  • Seite 38: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Seite 39 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Applications If the Axis product is reset to factory default, uploaded applications and their settings are removed. For information about factory default, see Reset to factory default settings on page 66.
  • Seite 39 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Applications If the Axis product is reset to factory default, uploaded applications and their settings are removed. For information about factory default, see Reset to factory default settings on page 66.

  • Seite 40: Axis Video Motion Detection

    AXIS Video Motion Detection is an application that detects moving objects in the camera’s field of view. When a moving object is detected, AXIS Video Motion Detection sends an alarm that can be used by the Axis product or by third-party software to for example, record video or send a notification.

  • Seite 40: Axis Video Motion Detection

    AXIS Video Motion Detection is an application that detects moving objects in the camera’s field of view. When a moving object is detected, AXIS Video Motion Detection sends an alarm that can be used by the Axis product or by third-party software to for example, record video or send a notification.
  • Seite 41 Note To add and modify exclude areas, Internet Explorer and AXIS Media Control (AMC) must be used. To add an exclude area, click Add. The default exclude area is a rectangle placed in the center of the image. Use the mouse to move, reshape and resize the area so that it covers the desired part of the image.
  • Seite 41 Note To add and modify exclude areas, Internet Explorer and AXIS Media Control (AMC) must be used. To add an exclude area, click Add. The default exclude area is a rectangle placed in the center of the image. Use the mouse to move, reshape and resize the area so that it covers the desired part of the image.
  • Seite 42 • Enabling visual confirmation may introduce video latency. Ignore Filters If AXIS Video Motion Detection 3 detects too many unwanted objects, start by modifying the include and exclude areas. If too many objects are still detected, use one or more of the ignore filters.
  • Seite 42 • Enabling visual confirmation may introduce video latency. Ignore Filters If AXIS Video Motion Detection 3 detects too many unwanted objects, start by modifying the include and exclude areas. If too many objects are still detected, use one or more of the ignore filters.

  • Seite 43: Using The Application In An Action Rule

    The following example shows how to configure the Axis product to record video when AXIS Video Motion Detection 3 detects motion. 1. Insert an SD card in the Axis product, or go to Setup > System Options > Storage in the Axis product’s webpages and configure the product to use a network share.

  • Seite 43: Using The Application In An Action Rule

    The following example shows how to configure the Axis product to record video when AXIS Video Motion Detection 3 detects motion. 1. Insert an SD card in the Axis product, or go to Setup > System Options > Storage in the Axis product’s webpages and configure the product to use a network share.
  • Seite 44 AXIS Q3505-SVE Mk II Fixed Dome Network Camera AXIS Video Motion Detection 4. From the Trigger drop-down list, select Applications and then select VMD 3. 5. Configure other settings as required. For example, to only record video during certain time periods, select a Schedule.
  • Seite 44 AXIS Q3505-SVE Mk II Fixed Dome Network Camera AXIS Video Motion Detection 4. From the Trigger drop-down list, select Applications and then select VMD 3. 5. Configure other settings as required. For example, to only record video during certain time periods, select a Schedule.

  • Seite 45: Events

    Events The Event pages allow you to configure the Axis product to perform actions when different events occur. For example, the product can start a recording or send an email notification when motion is detected. The set of conditions that defines how and when the action is triggered is called an action rule.

  • Seite 45: Events

    Events The Event pages allow you to configure the Axis product to perform actions when different events occur. For example, the product can start a recording or send an email notification when motion is detected. The set of conditions that defines how and when the action is triggered is called an action rule.
  • Seite 46 Live Stream Accessed – Trigger the rule when any stream is accessed and during edge storage playback. This can for example be used to send notifications. Shock Detection – Trigger the rule when the Axis product detects it has been tilted or hit. See Shock Detection on page 36.
  • Seite 46 Live Stream Accessed – Trigger the rule when any stream is accessed and during edge storage playback. This can for example be used to send notifications. Shock Detection – Trigger the rule when the Axis product detects it has been tilted or hit. See Shock Detection on page 36.

  • Seite 47: Add Recipients

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera Events Actions Available actions include: • Day/Night Vision Mode – Set day mode (IR cut filter on) or night mode (IR cut filter off). • Defog Mode– Set Defog Mode to On or Off. This action may be used to change between the modes automatically.

  • Seite 47: Add Recipients

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera Events Actions Available actions include: • Day/Night Vision Mode – Set day mode (IR cut filter on) or night mode (IR cut filter off). • Defog Mode– Set Defog Mode to On or Off. This action may be used to change between the modes automatically.
  • Seite 48 Secure (HTTPS). Send Notification Specify login information for the HTTPS server and validate Send Video Clip the server’s certificate. If there is a proxy between the Axis product and the HTTPS server, also specify the proxy settings. Network Share Send Images A network share can also be used as a storage device for recorded video.
  • Seite 48 Secure (HTTPS). Send Notification Specify login information for the HTTPS server and validate Send Video Clip the server’s certificate. If there is a proxy between the Axis product and the HTTPS server, also specify the proxy settings. Network Share Send Images A network share can also be used as a storage device for recorded video.

  • Seite 49: Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see About certificates on page 55.

  • Seite 49: Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see About certificates on page 55.

  • Seite 50: Recordings

    Note The recording’s start date and time is set according to the Axis product’s date and time settings. If the Axis product is configured to use a time zone different from the local time zone, make sure to configure the Recording time filters according to the product’s time zone.

  • Seite 50: Recordings

    Note The recording’s start date and time is set according to the Axis product’s date and time settings. If the Axis product is configured to use a time zone different from the local time zone, make sure to configure the Recording time filters according to the product’s time zone.

  • Seite 51: Export Video Clip

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 61. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Seite 51: Export Video Clip

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 61. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Seite 52: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Seite 52: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Seite 53: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.

  • Seite 53: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Seite 54 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.
  • Seite 54 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.

  • Seite 55: Date & Time

    Authority (CA). A self-signed certificate offers limited protection and can be used before a CA-issued certificate has been obtained. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Seite 55: Date & Time

    Authority (CA). A self-signed certificate offers limited protection and can be used before a CA-issued certificate has been obtained. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Seite 56: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.

  • Seite 56: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Seite 57 5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup Note •...
  • Seite 57 5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup Note •...
  • Seite 58 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Seite 58 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Seite 59 (LAN) from the public network (Internet). Use NAT traversal when the Axis product is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.
  • Seite 59 (LAN) from the public network (Internet). Use NAT traversal when the Axis product is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.
  • Seite 60 Note All AXIS Video MIB traps are enabled when SNMP v1/v2c traps are enabled. It is not possible to turn on or off specific traps. SNMP v3 provides encryption and secure passwords. To use traps with SNMP v3, an SNMP v3 management application is required.
  • Seite 60 Note All AXIS Video MIB traps are enabled when SNMP v1/v2c traps are enabled. It is not possible to turn on or off specific traps. SNMP v3 provides encryption and secure passwords. To use traps with SNMP v3, an SNMP v3 management application is required.

  • Seite 61: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.

  • Seite 61: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.
  • Seite 62 Formatting the SD card will remove all data and recordings stored on the card. The Axis product can be configured to automatically format SD cards that are inserted into the product. If autoformat is enabled and an SD card is inserted, the product will check if the SD card has the ext4 file system. If the card has a different file system, the card will automatically be formatted to ext4.
  • Seite 62 Formatting the SD card will remove all data and recordings stored on the card. The Axis product can be configured to automatically format SD cards that are inserted into the product. If autoformat is enabled and an SD card is inserted, the product will check if the SD card has the ext4 file system. If the card has a different file system, the card will automatically be formatted to ext4.

  • Seite 63: Network Share

    6. Click Connect. To clear all recordings and data from the Axis product’s folder on the designated share, click Clear under Storage Tools. To avoid filling the share, it is recommended to remove recordings continuously. Under Recording Settings, select Remove recordings older than and select the number of days or weeks.

  • Seite 63: Network Share

    6. Click Connect. To clear all recordings and data from the Axis product’s folder on the designated share, click Clear under Storage Tools. To avoid filling the share, it is recommended to remove recordings continuously. Under Recording Settings, select Remove recordings older than and select the number of days or weeks.

  • Seite 64: Maintenance

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Seite 64: Maintenance

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Seite 65: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Seite 65: Advanced

    For more information, see www.axis.com/developer File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Seite 66: Reset To Factory Default Settings

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera System Options To open Plain Config, go to System Options > Advanced > Plain Config. Axis Support does not provide assistance with this feature. Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default will reset all settings, including the IP address, to the factory default values.

  • Seite 66: Reset To Factory Default Settings

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera System Options To open Plain Config, go to System Options > Advanced > Plain Config. Axis Support does not provide assistance with this feature. Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default will reset all settings, including the IP address, to the factory default values.

  • Seite 67: Troubleshooting

    The latest version may contain a correction that fixes your particular problem. The current firmware version in the Axis product is displayed in the page Setup > Basic Setup and in Setup > About.

  • Seite 67: Troubleshooting

    The latest version may contain a correction that fixes your particular problem. The current firmware version in the Axis product is displayed in the page Setup > Basic Setup and in Setup > About.
  • Seite 68 Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the...
  • Seite 68 Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the...
  • Seite 69 Set a Capture Mode that prioritizes frame rate. Changing the capture mode to prioritize frame rate might lower the maximum resolution depending on the product used and capture modes available. The maximum frames per second is dependent on the utility frequency (60/50 Hz) of the Axis product.
  • Seite 69 Set a Capture Mode that prioritizes frame rate. Changing the capture mode to prioritize frame rate might lower the maximum resolution depending on the product used and capture modes available. The maximum frames per second is dependent on the utility frequency (60/50 Hz) of the Axis product.
  • Seite 70 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Troubleshooting Video cannot be recorded Check that the SD card is not write protected (that is, read only). SD card cannot be mounted Reformat the SD card and then click Mount. NOTICE...
  • Seite 70 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Troubleshooting Video cannot be recorded Check that the SD card is not write protected (that is, read only). SD card cannot be mounted Reformat the SD card and then click Mount. NOTICE...

  • Seite 71: Technical Specifications

    Resetting the product to factory default settings. See page 66. • Connecting to an AXIS Video Hosting System service. See page 57. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...

  • Seite 71: Technical Specifications

    Resetting the product to factory default settings. See page 66. • Connecting to an AXIS Video Hosting System service. See page 57. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...

  • Seite 72: Connectors

    • Risk of data loss and corrupted recordings. Do not remove the SD card while the product is running. Disconnect power or unmount the SD card from the Axis product’s webpages before removal. This product supports microSD/microSDHC/microSDXC cards (not included).

  • Seite 72: Connectors

    • Risk of data loss and corrupted recordings. Do not remove the SD card while the product is running. Disconnect power or unmount the SD card from the Axis product’s webpages before removal. This product supports microSD/microSDHC/microSDXC cards (not included).

  • Seite 73: Network Connector

    For information about regulatory requirements, see Electromagnetic Compatibility (EMC) on page 2 . Multicable (sold separately) The multicable can be purchased from an Axis reseller for connecting external equipment to the Axis product. The cable provides the following connectors: I/O connector - See Connectors on page 72.

  • Seite 74: Performance Considerations

    AXIS Q3505-SVE Mk II Fixed Dome Network Camera Technical specifications Power connector - Connector for AC and DC power for connection to the AXIS T8051 Power Converter AC/DC to DC (not included) wires. Wires Specifications + DC or AC Black –...
  • Seite 75 User Manual Ver. M1.8 AXIS Q3505-SVE Mk II Fixed Dome Network Camera Date: October 2016 © Axis Communications AB, 2016 Part No. 1496630...

Inhaltsverzeichnis
