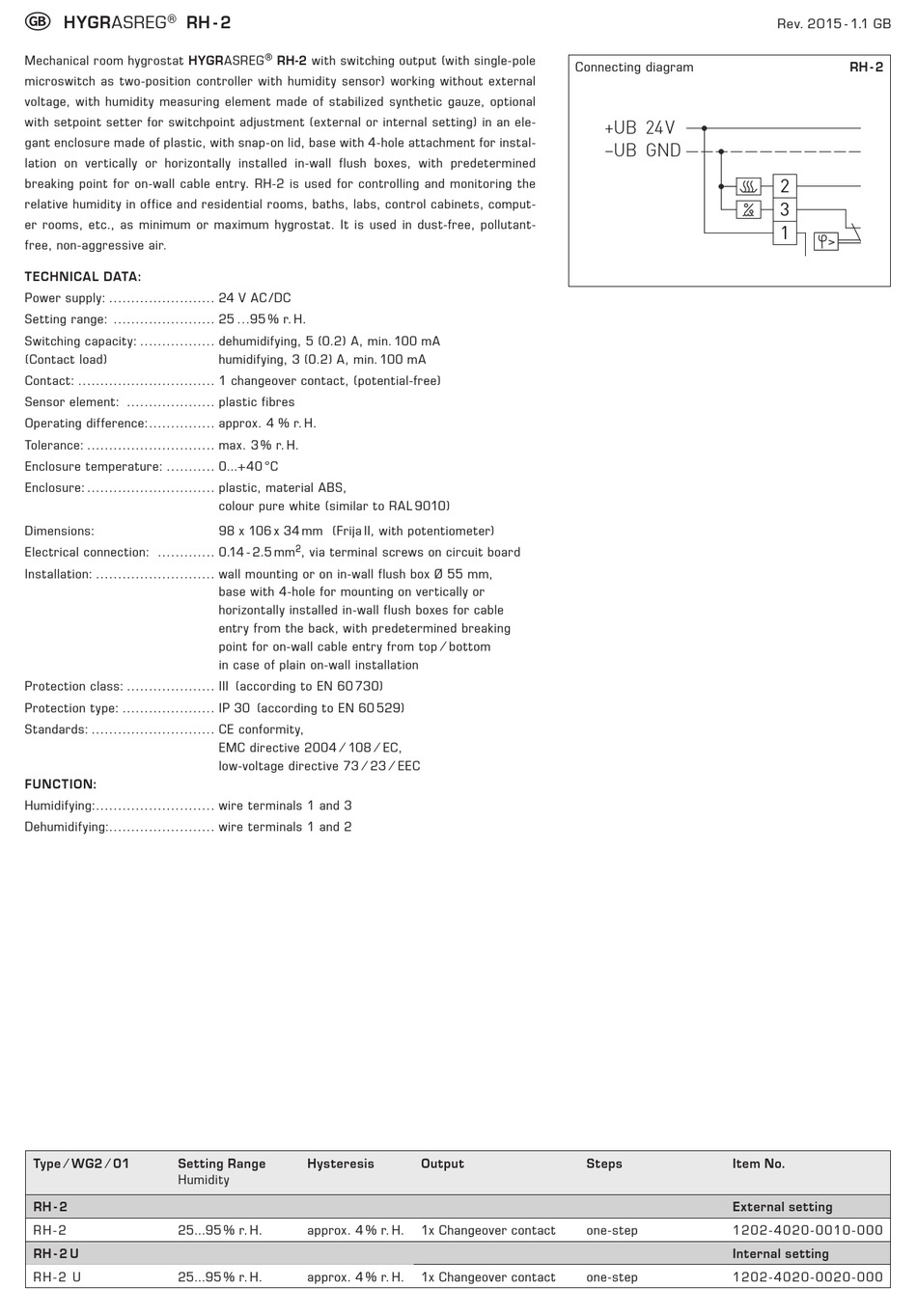

HYGRASREG RH - 2
Mechanical room hygrostat HYGRASREG
microswitch as two-position controller with humidity sensor) working without external
voltage, with humidity measuring element made of stabilized synthetic gauze, optional
with setpoint setter for switchpoint adjustment (external or internal setting) in an ele-
gant enclosure made of plastic, with snap-on lid, base with 4-hole attachment for instal-
lation on vertically or horizontally installed in-wall flush boxes, with predetermined
breaking point for on-wall cable entry. RH-2 is used for controlling and monitoring the
relative humidity in office and residential rooms, baths, labs, control cabinets, comput-
er rooms, etc., as minimum or maximum hygrostat. It is used in dust-free, pollutant-
free, non-aggressive air.
TECHNICAL DATA:
Power supply: ........................ 24 V AC /DC
Setting range: ....................... 25 ...95 % r. H.
Switching capacity: ................. dehumidifying, 5 (0.2) A, min. 100 mA
(Contact load)
Contact: ............................... 1 changeover contact, (potential-free)
Sensor element: .................... plastic fibres
Operating difference: ............... approx. 4 % r. H.
Tolerance: ............................. max. 3 % r. H.
Enclosure temperature: ........... 0...+40 °C
Enclosure: ............................. plastic, material ABS,
Dimensions:
Electrical connection: ............. 0.14 - 2.5 mm
Installation: ........................... wall mounting or on in-wall flush box Ø 55 mm,
Protection class: .................... III (according to EN 60 730)
Protection type: ..................... IP 30 (according to EN 60 529)
Standards: ............................ CE conformity,
FUNCTION:
Humidifying: ........................... wire terminals 1 and 3
Dehumidifying:........................ wire terminals 1 and 2
Type ⁄ WG2 ⁄ 01 Setting Range
Humidity
RH - 2
R H - 2 25...95 % r. H.
RH - 2 U
R H - 2 U 25...95 % r. H.
® RH-2 with switching output (with single-pole
humidifying, 3 (0.2) A, min. 100 mA
colour pure white (similar to RAL 9010)
98 x 106 x 34 mm (Frija II, with potentiometer)
2
, via terminal screws on circuit board
base with 4-hole for mounting on vertically or
horizontally installed in-wall flush boxes for cable
entry from the back, with predetermined breaking
point for on-wall cable entry from top ⁄ bottom
in case of plain on-wall installation
EMC directive 2004 ⁄ 108 ⁄ EC,
low-voltage directive 73 ⁄ 23 ⁄ EEC
Hysteresis
approx. 4 % r. H.
approx. 4 % r. H.
Connecting diagram
Output Steps
1x Changeover contact one-step
1x Changeover contact one-step
Rev. 2015 - 1.1 GB
+UB 24 V
–UB GND
Item No.
External setting
1202 -4 020-00 10-000
Internal setting
1202 -4 020-00 20-000
RH - 2
2
3
1
