Only qualified personnel should connect equipment to an electric power supply. Before con-
necting, ensure that the voltage and frequency in the power supply network correspond to the
values in table 2.1. The permissible voltage variation is ±10%.
4.

Usage

4.1 Control panel

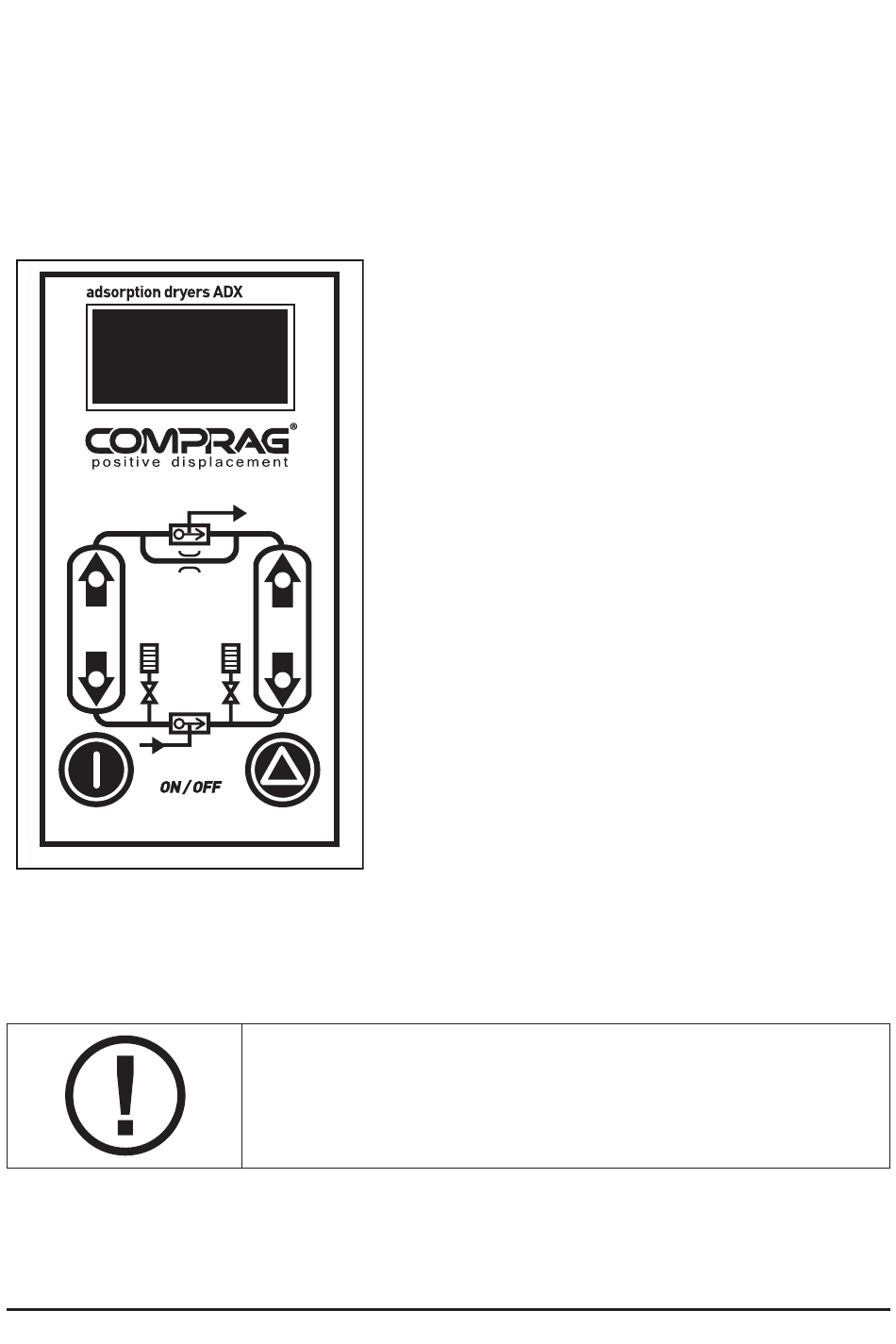

Fig. 4.1. Control panel
4.2

Switching on/off of equipment

If the equipment is delivered in winter, keep the equipment at room temperature for no fewer
than eight hours after unpacking and before turning it on. This is to ensure that the compo-
nents are warm and avoids condensate forming.
COMPRAG Heatless adsorption compressed air dryers
On/off – turning on/off of automatic tower switching.
Red indicator is lit – drying process occurring in tower.
Green indicator is lit – regeneration process occur-
ring in tower.
Screen displays time until cycle switch.
The dryer operates entirely in automatic mode as
far as the control panel is concerned and does not
require any adjustment.
Ensure that the operating parameters correspond to the nominal
values given in table 2.1 (power frequency and voltage, pressure
and temperature of compressed air, ambient temperature etc.).
ADX Series
15
