2.3

Functionality.

1. Bypass valve.
2. Right tower.
3. Check valve.
4. Left tower.
5. Solenoid valve (PV)
6. Silencer
7. Injector

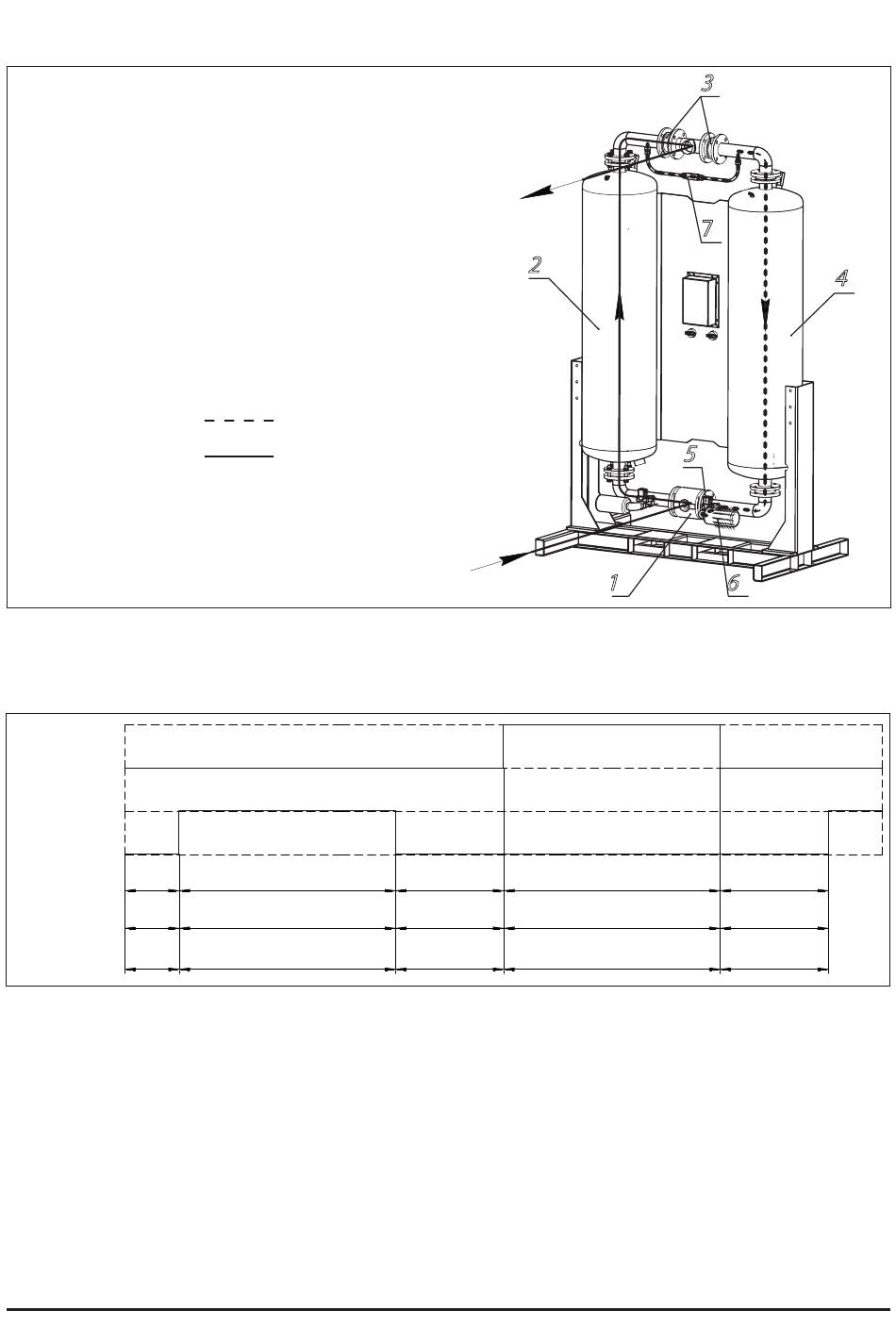

Fig.
2.3 Flow chart of air dryer
Cyclogram for the opening and closing of electromagnetic pneumatic valves (PV) 5.
PV4 PV4
PV2 PV2
AD X 20 - AD X 90 AD X 20 - AD X 90
1 5ñåê 1 5 sec
AD X 1 25 - AD X 250 AD X 1 25 - AD X 250
30ñåê 30 sec
D elay D elay
PV4 – solenoid valve of left tower
PV2 – solenoid valve of right tower
Both solenoid valves, PV2 and PV4, are closed during start-up.
Phase A. Solenoid valve PV2 is actuated and the pressure falls in tower 2 to atmospheric
pressure. Bypass valve 1 switches to closing tower 2 (as there is no pressure in this tower).
The inflow of compressed air is fed into tower 4, where adsorbent material adsorbs the
moisture to the required set amount.
Some of the dry air passes through the injector 7 from tower 4 to tower 2, where it expands.
10
Air for drying
Dry compressed air
270 sec 270ñåê 30 sec 30ñåê
240sec 240ñåê 60 sec 60ñåê
A A
2
1
270 sec 270ñåê
240 sec 240ñåê
B B C C
3
7
4
5
6
30 sec 30ñåê
60 sec 60ñåê
D D
