Instruction Sheet - 3B SCIENTIFIC PHYSICS U8531401 Bedienungsanleitung

3B SCIENTIFIC ® PHYSICS

Instruction sheet

02/08 SP/ALF

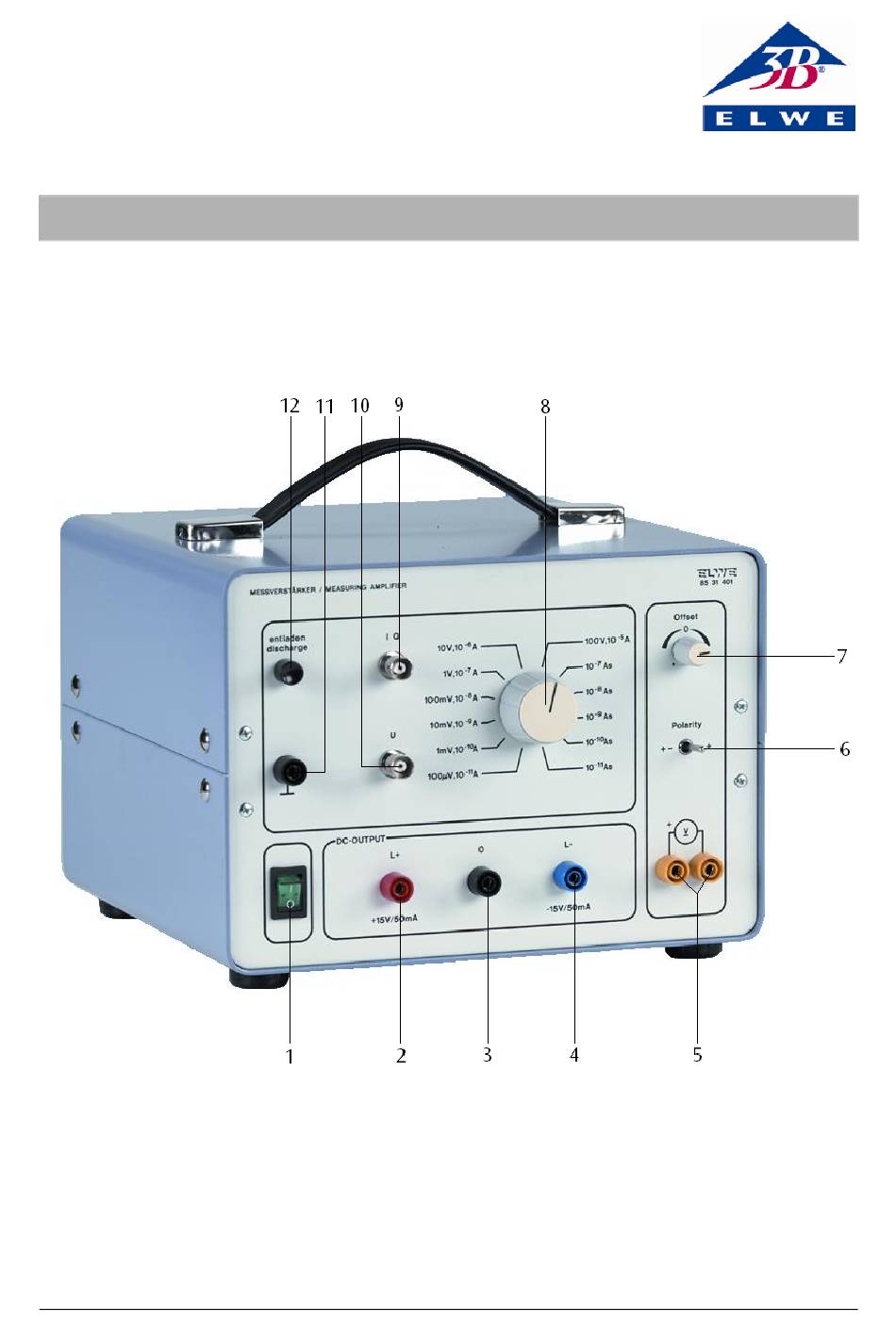

1 Mains switch
2 Voltage output +15 V
3 Voltage output reference point
4 Voltage output -15 V
5 Voltmeter terminals
6 Polarity reversal switch
Measurement Amplifier U8531401
7 Offset calibration knob
8 Range switch
9 Current/charge input, BNC
10 Voltage input, BNC
11 Ground terminal
12 "Discharge" button
