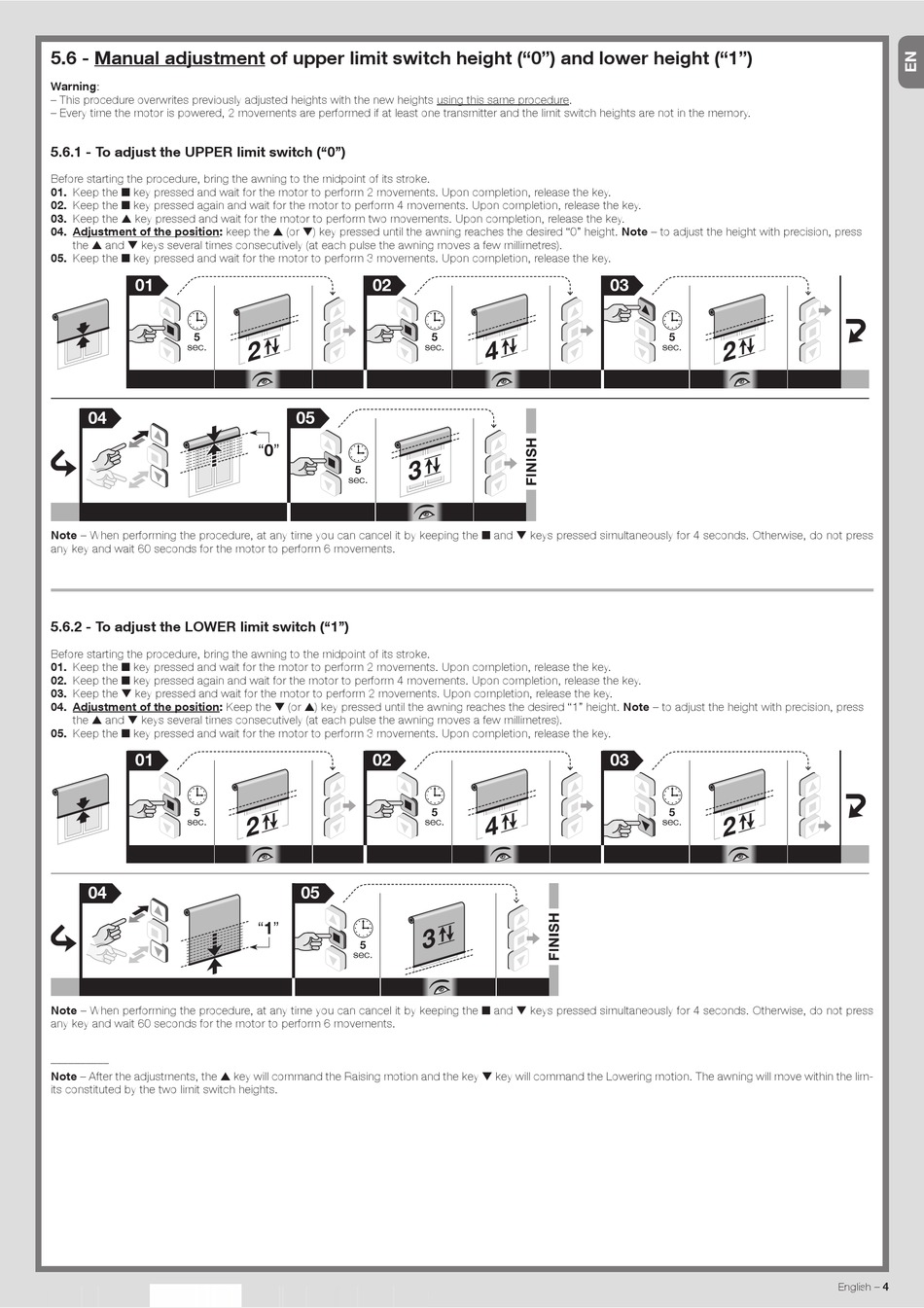

5.6 - Manual adjustment of upper limit switch height ("0") and lower height ("1")
Warning:
– This procedure overwrites previously adjusted heights with the new heights using this same procedure.
– Every time the motor is powered, 2 movements are performed if at least one transmitter and the limit switch heights are not in the memory.
5.6.1 - To adjust the UPPER limit switch ("0")
Before starting the procedure, bring the awning to the midpoint of its stroke.
01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
02. Keep the n key pressed again and wait for the motor to perform 4 movements. Upon completion, release the key.
03. Keep the s key pressed and wait for the motor to perform two movements. Upon completion, release the key.
04. Adjustment of the position: keep the s (or t) key pressed until the awning reaches the desired "0" height. Note – to adjust the height with precision, press
the s and t keys several times consecutively (at each pulse the awning moves a few millimetres).
05. Keep the n key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
01
5
sec.
04
Note – When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press
any key and wait 60 seconds for the motor to perform 6 movements.
5.6.2 - To adjust the LOWER limit switch ("1")
Before starting the procedure, bring the awning to the midpoint of its stroke.
01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
02. Keep the n key pressed again and wait for the motor to perform 4 movements. Upon completion, release the key.
03. Keep the t key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
04. Adjustment of the position: Keep the t (or s) key pressed until the awning reaches the desired "1" height. Note – to adjust the height with precision, press
the s and t keys several times consecutively (at each pulse the awning moves a few millimetres).
05. Keep the n key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
01
5
sec.
04
Note – When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press
any key and wait 60 seconds for the motor to perform 6 movements.
––––––––––
Note – After the adjustments, the s key will command the Raising motion and the key t key will command the Lowering motion. The awning will move within the lim-
its constituted by the two limit switch heights.
02
2
05
"0"
3
5
sec.
02
2
05
"1"
5
sec.
5
4
sec.
5
4
sec.
3
03
5
2
sec.
03
5
2
sec.
English – 4
