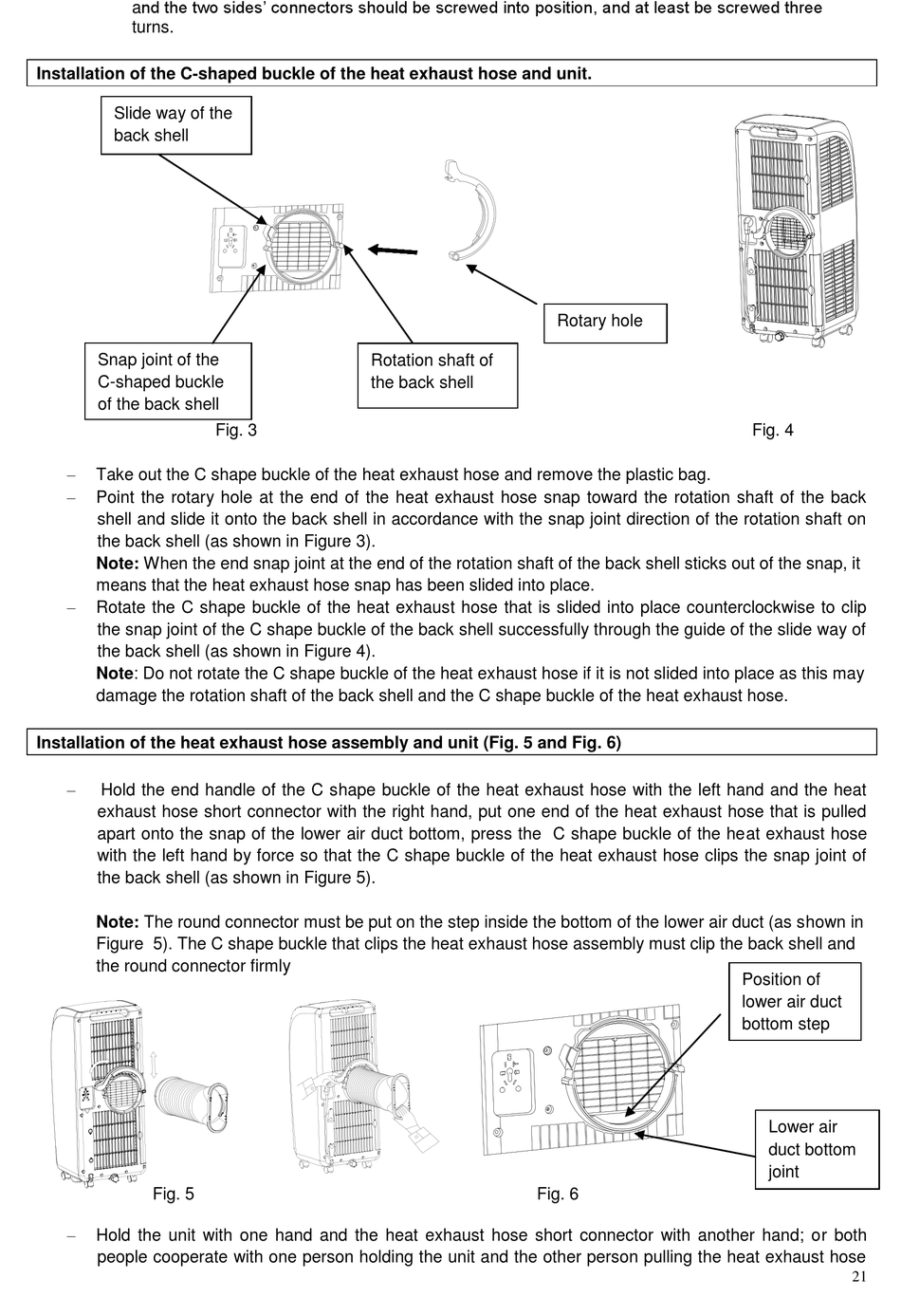

SUNTEC KLIMATRONIC SUMMIT plus Bedienungsanleitung Seite 21

and the two sides' connectors should be screwed into position, and at least be screwed three
turns.
Installation of the C-shaped buckle of the heat exhaust hose and unit.
Slide way of the
back shell
Snap joint of the
C-shaped buckle
of the back shell

Take out the C shape buckle of the heat exhaust hose and remove the plastic bag.

Point the rotary hole at the end of the heat exhaust hose snap toward the rotation shaft of the back
shell and slide it onto the back shell in accordance with the snap joint direction of the rotation shaft on
the back shell (as shown in Figure 3).
Note: When the end snap joint at the end of the rotation shaft of the back shell sticks out of the snap, it
means that the heat exhaust hose snap has been slided into place.

Rotate the C shape buckle of the heat exhaust hose that is slided into place counterclockwise to clip
the snap joint of the C shape buckle of the back shell successfully through the guide of the slide way of
the back shell (as shown in Figure 4).
Note: Do not rotate the C shape buckle of the heat exhaust hose if it is not slided into place as this may
damage the rotation shaft of the back shell and the C shape buckle of the heat exhaust hose.
Installation of the heat exhaust hose assembly and unit (Fig. 5 and Fig. 6)

Hold the end handle of the C shape buckle of the heat exhaust hose with the left hand and the heat
exhaust hose short connector with the right hand, put one end of the heat exhaust hose that is pulled
apart onto the snap of the lower air duct bottom, press the C shape buckle of the heat exhaust hose
with the left hand by force so that the C shape buckle of the heat exhaust hose clips the snap joint of
the back shell (as shown in Figure 5).
Note: The round connector must be put on the step inside the bottom of the lower air duct (as shown in
Figure 5). The C shape buckle that clips the heat exhaust hose assembly must clip the back shell and
the round connector firmly
Fig. 5

Hold the unit with one hand and the heat exhaust hose short connector with another hand; or both
people cooperate with one person holding the unit and the other person pulling the heat exhaust hose
Rotation shaft of
the back shell
Fig. 3
Rotary hole
Fig. 6
Fig. 4
Position of
lower air duct
bottom step
Lower air
duct bottom
joint
