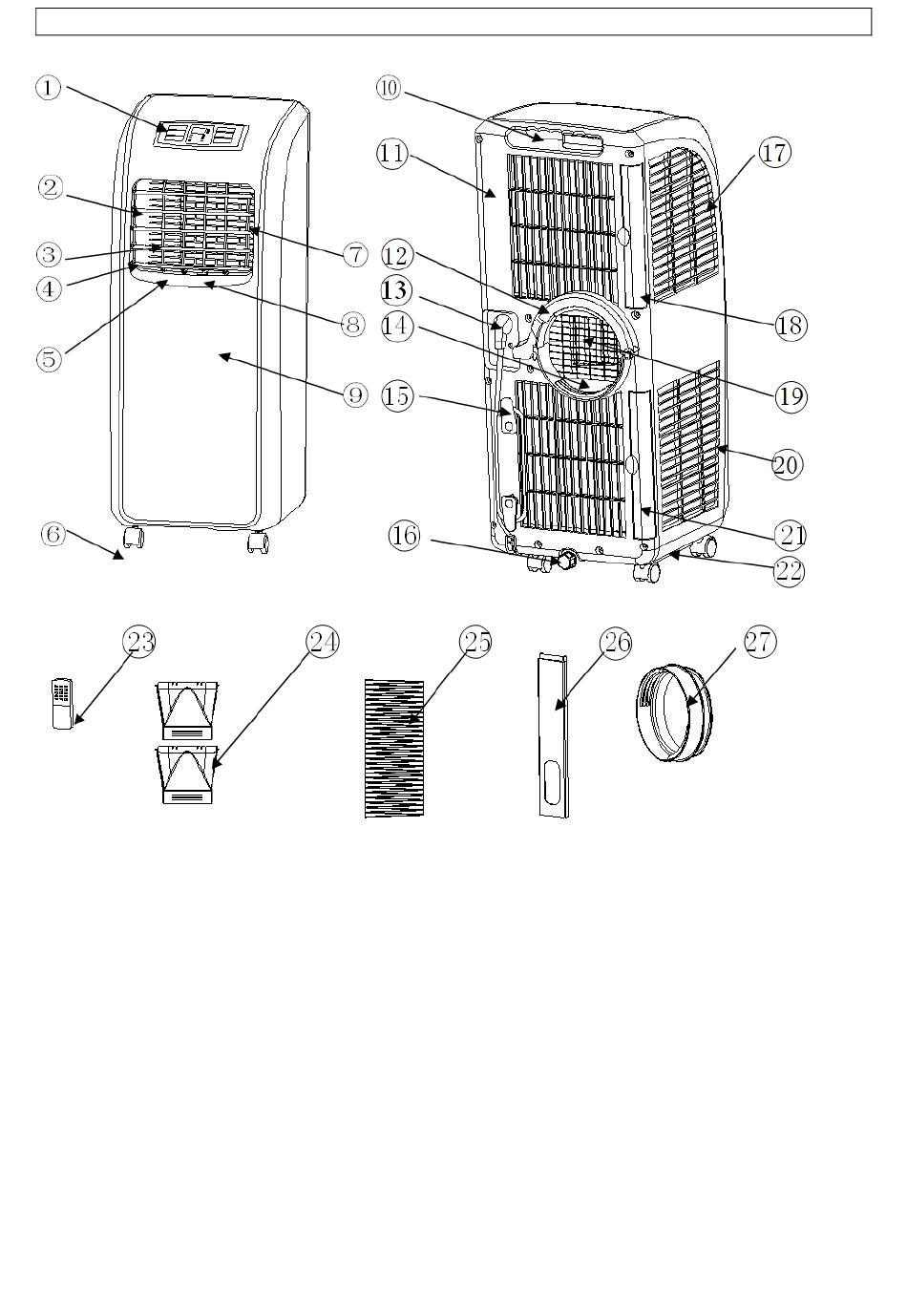

Components
1. Control panel
2. Horizontal louver
3. Vertical louver
4. Air outlet frame
5. Vertical louver connecting lever
6. Caster
7. Horizontal louver connecting lever
8. Main vertical louver
9. Front shell
10. Handle
11. Back shell
12. C-shaped buckle
13. Power cord
14. Lower air duct bottom
15. Wire-winding post
16. Drain cap
17. Evaporator filter mesh
18. Evaporator filter frame
19. Outlet fine mesh
20. Condenser filter mesh
21. Condenser filter frame
22. Base plate (Right side: remote control
storage area)
23. Remote control
24. Exhaust hose outer connector
25. Exhaust hose exhaust hose snap
26. Window sealing board assembly
27. Round connector
