Installation; Preparation For The Installation: Install Extraction Spigot - Helios SlimVent SVV 80 Montage- Und Betriebsvorschrift

Installation and Operating Instructions
CHAPTER 3

INSTALLATION

WARNING
Slim centrifugal fan box – SVV 80
3.0 Installation
Leave the fan in its box until installation. Check that the fan is in good condition and has not been damaged in transit.
3.1

Preparation for the installation: Install extraction spigot

All work must be carried out with the equipment fully isolated from the power supply.

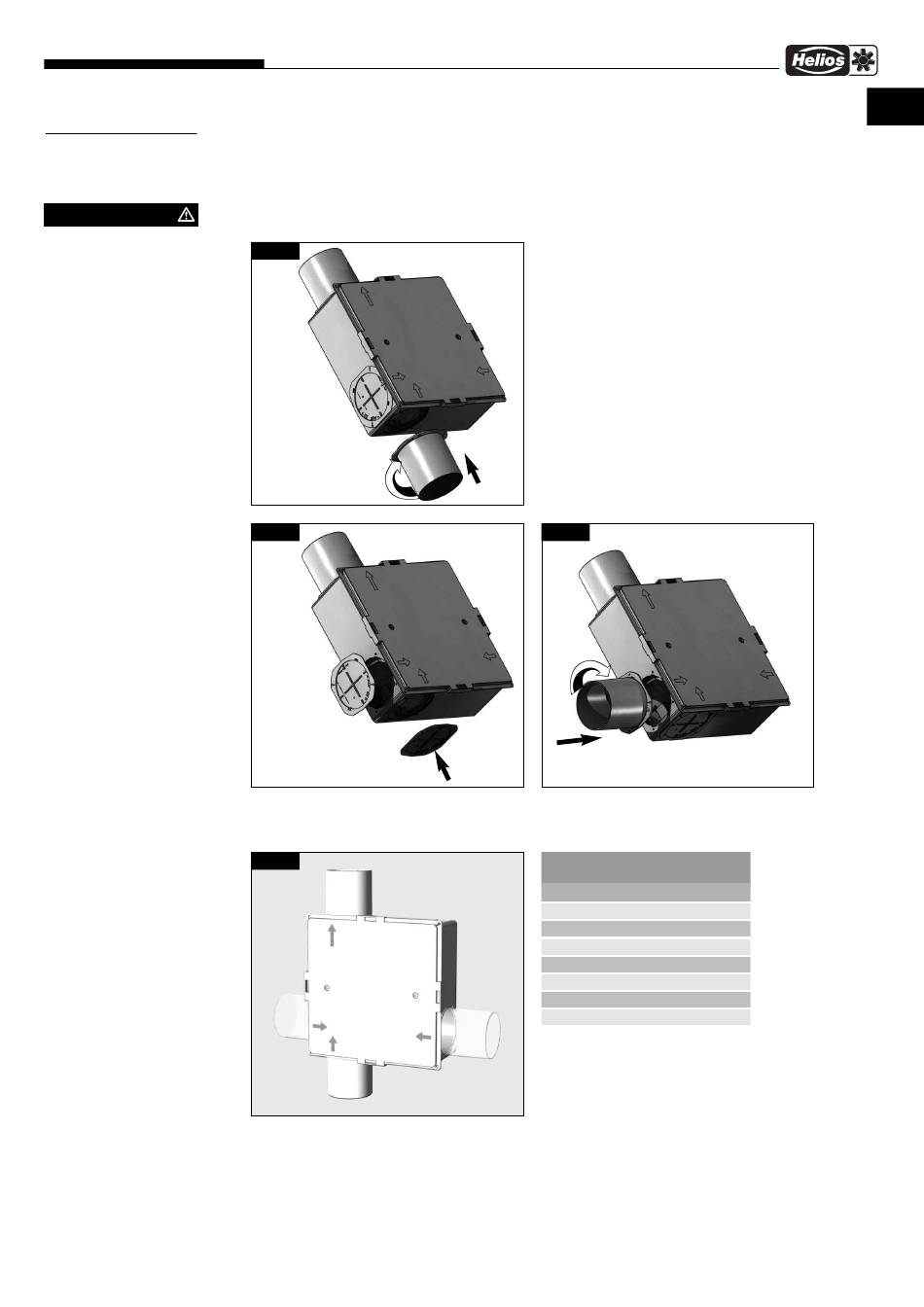

fig.1
—
Install extraction
spigot ˜
below
fig.2
—
™
1. Remove cap ™
sidewise
2. Insert cap ™ below
Up to three extraction spigots can be installed (see fig.4).
fig.4
No. 2
No. 1
˜
fig.3
™
Extraction spigot 90°
Install left (picture) respectively right
Discharge position
No. 1
V · m
3
/h
35
65
zu
50
110
zu
zu
No. 3
Performance in dependence of the
number of extraction spigots and posi-
tion.
* Air flow volume on speed step 1/2/3
35/65/110 m³/h
11
—
˜
Total
No. 2 No. 3 performance
V · m V · m V · m
3 3 3
/h /h /h
45 45 125
zu 60 125
45 75 120
60 zu 110*
zu zu 110
zu 110
110
100 zu
100
