Choose Run Mode
MENU
RUN MODE
PERSON
The operating mode is set in menu RUN. For operation on a DMX-controller DMX needs to be
set. SLAVE sets the fixture into slave mode.

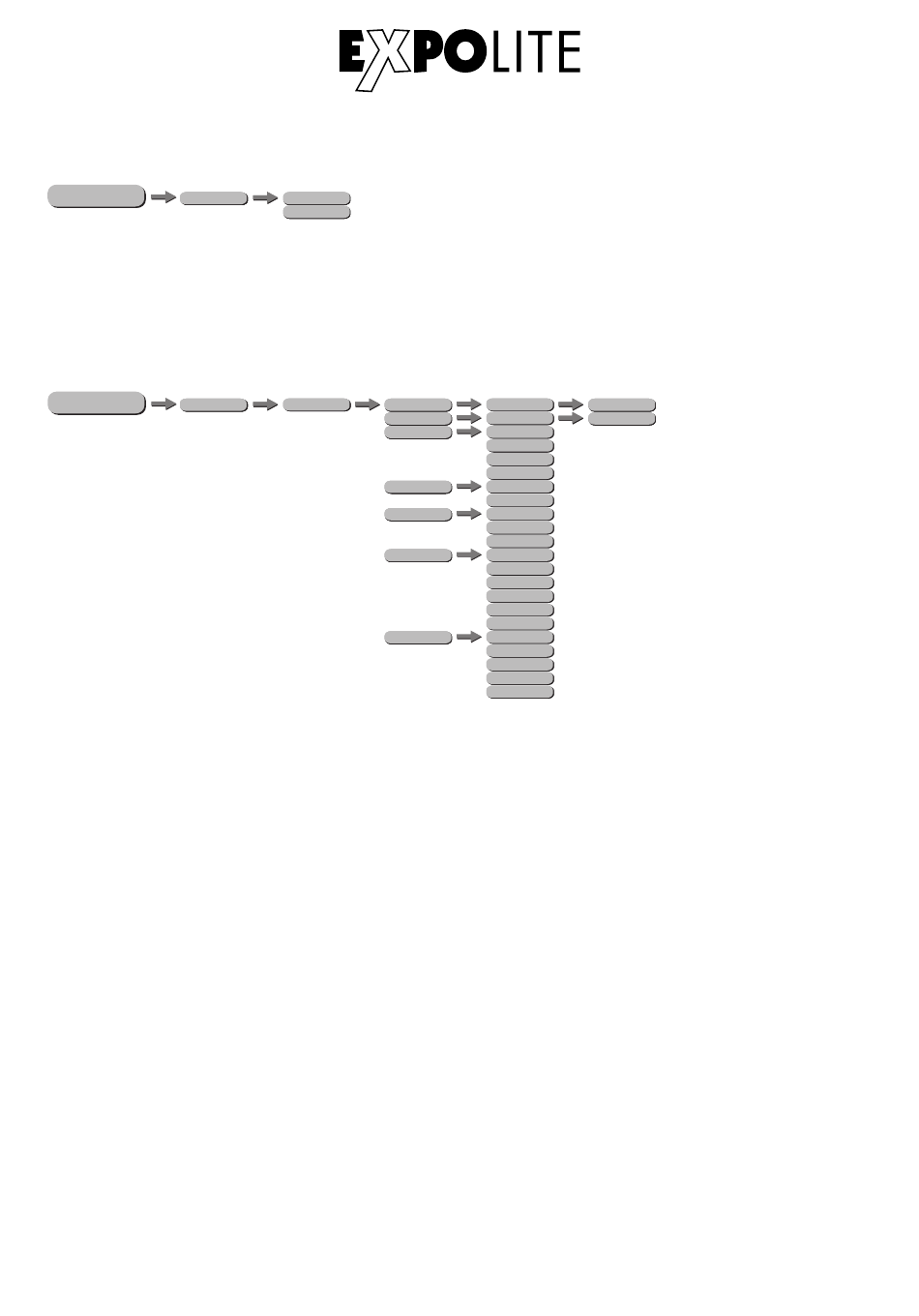

Miscellaneous Settings
MENU
PERSON SETTING
The default password is: UP - DOWN - UP - DOWN - ENTER
UPLD: sends the user settings to connected slave fixtures.
RESET: sets all editable settings back to factory default.
DIMMER: controls different dimming speeds to simulate a halogen bulb (DIM4/DIM3/DIM2/DIM1/
OFF).
DMX ERROR: sets how the fixture responses if DMX-signal gets lost. Set SAVE to hold the last
received value or BLACK for blackout.
PERFORMANCE: gives the user the opportunity to change the performance of the fan between
LIVE, STUDIO and POWER. In STUDIO mode the fan is run on low noise. In case of overheat the
intensity of the led module is regulated down. In LIVE mode, fan speed and the intensity of the led
module is balanced with each other to reach the best output with as low fan speed as possible. In
POWER mode the temperature of the fixture is primary regulated by the fan, to keep a high intensity
as long as possible.
PWM: gives the user the possibility to adjust the PWM frequency of the leds (600Hz/1200Hz/2000Hz/
4000Hz/6000Hz/25000Hz).
FULL POWER CCT: sets the colour temperature at maximum output. 3200K/4200K/5600K/10000K
and NORMAL can be set.
HSIC DMX
HSIC SLAVE
UPLOAD
****
HSIC RESET
DIMMER HSIC
DMX ERROR HSIC
PERFORMANCE HSIC
PWM_RATE HSIC
HSIC
FULL POWER CCT
E-27
HSIC SEND
****
HSIC RESET
****
DIM4
DIM3
DIM2
DIM1
SAVE OFF
BLACK
LIVE
STUDIO
POWER
600HZ
1200HZ
2000HZ
4000HZ
6000HZ
25000HZ
3200K
4200K
5600K
10000K
NORMAL
