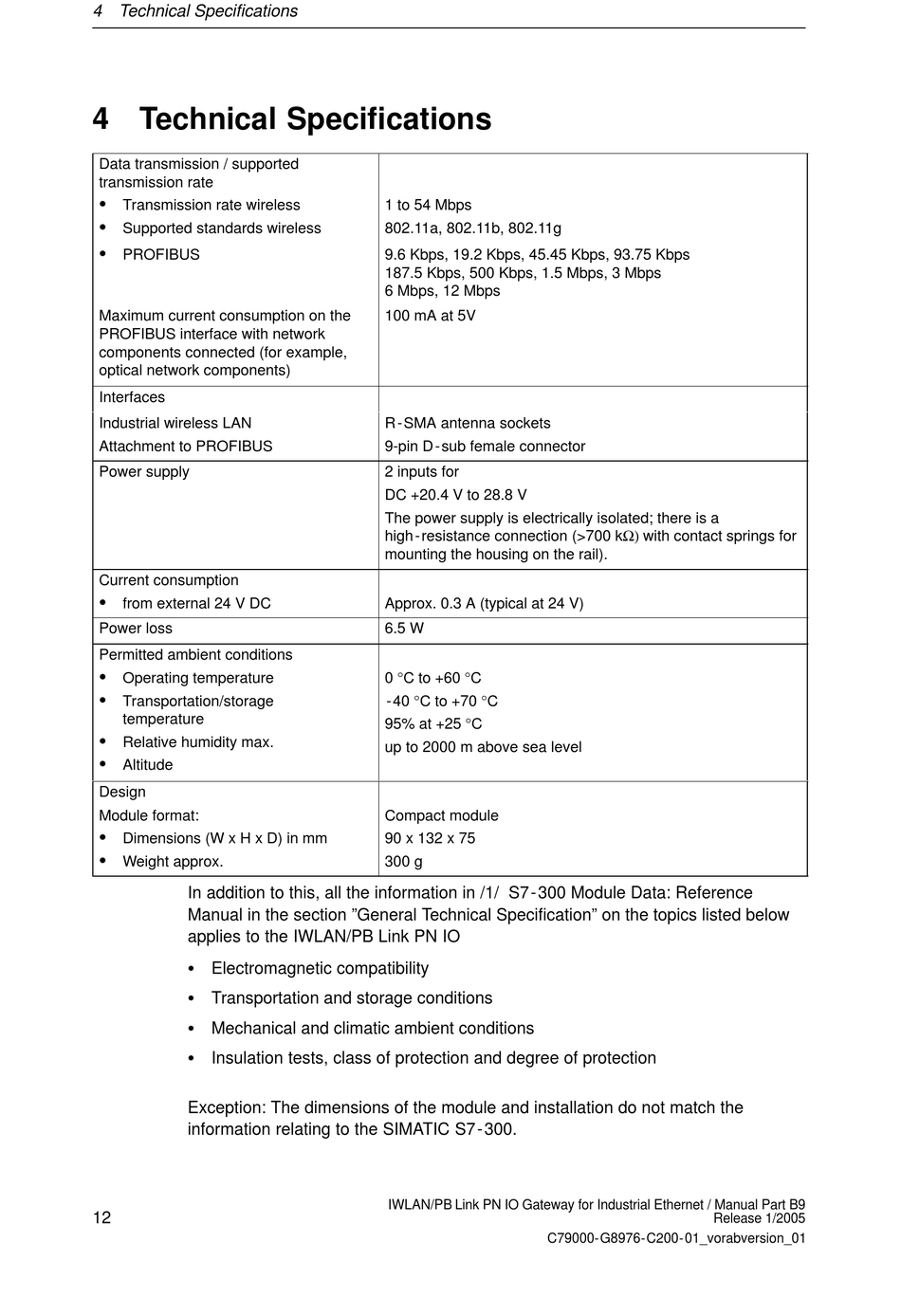

4 Technical Specifications

4 Technical Specifications
Data transmission / supported
transmission rate
S
Transmission rate wireless
S
Supported standards wireless
S
PROFIBUS
Maximum current consumption on the
PROFIBUS interface with network
components connected (for example,
optical network components)
Interfaces
Industrial wireless LAN
Attachment to PROFIBUS
Power supply
Current consumption
S
from external 24 V DC
Power loss
Permitted ambient conditions
S
Operating temperature
S
Transportation/storage
temperature
S
Relative humidity max.
S
Altitude
Design
Module format:
S
Dimensions (W x H x D) in mm
S
Weight approx.
In addition to this, all the information in /1/ S7-300 Module Data: Reference
Manual in the section "General Technical Specification" on the topics listed below
applies to the IWLAN/PB Link PN IO
S Electromagnetic compatibility
S Transportation and storage conditions
S Mechanical and climatic ambient conditions
S Insulation tests, class of protection and degree of protection
Exception: The dimensions of the module and installation do not match the
information relating to the SIMATIC S7-300.
12
1 to 54 Mbps
802.11a, 802.11b, 802.11g
9.6 Kbps, 19.2 Kbps, 45.45 Kbps, 93.75 Kbps
187.5 Kbps, 500 Kbps, 1.5 Mbps, 3 Mbps
6 Mbps, 12 Mbps
100 mA at 5V
R -SMA antenna sockets
9-pin D -sub female connector
2 inputs for
DC +20.4 V to 28.8 V
The power supply is electrically isolated; there is a
high -resistance connection (>700 kΩ) with contact springs for
mounting the housing on the rail).
Approx. 0.3 A (typical at 24 V)
6.5 W
0 °C to +60 °C
-40 °C to +70 °C
95% at +25 °C
up to 2000 m above sea level
Compact module
90 x 132 x 75
300 g
IWLAN/PB Link PN IO Gateway for Industrial Ethernet / Manual Part B9
C79000-G8976-C200-01_vorabversion_01
Release 1/2005
