2 Installation and Commissioning

2.1

How to...

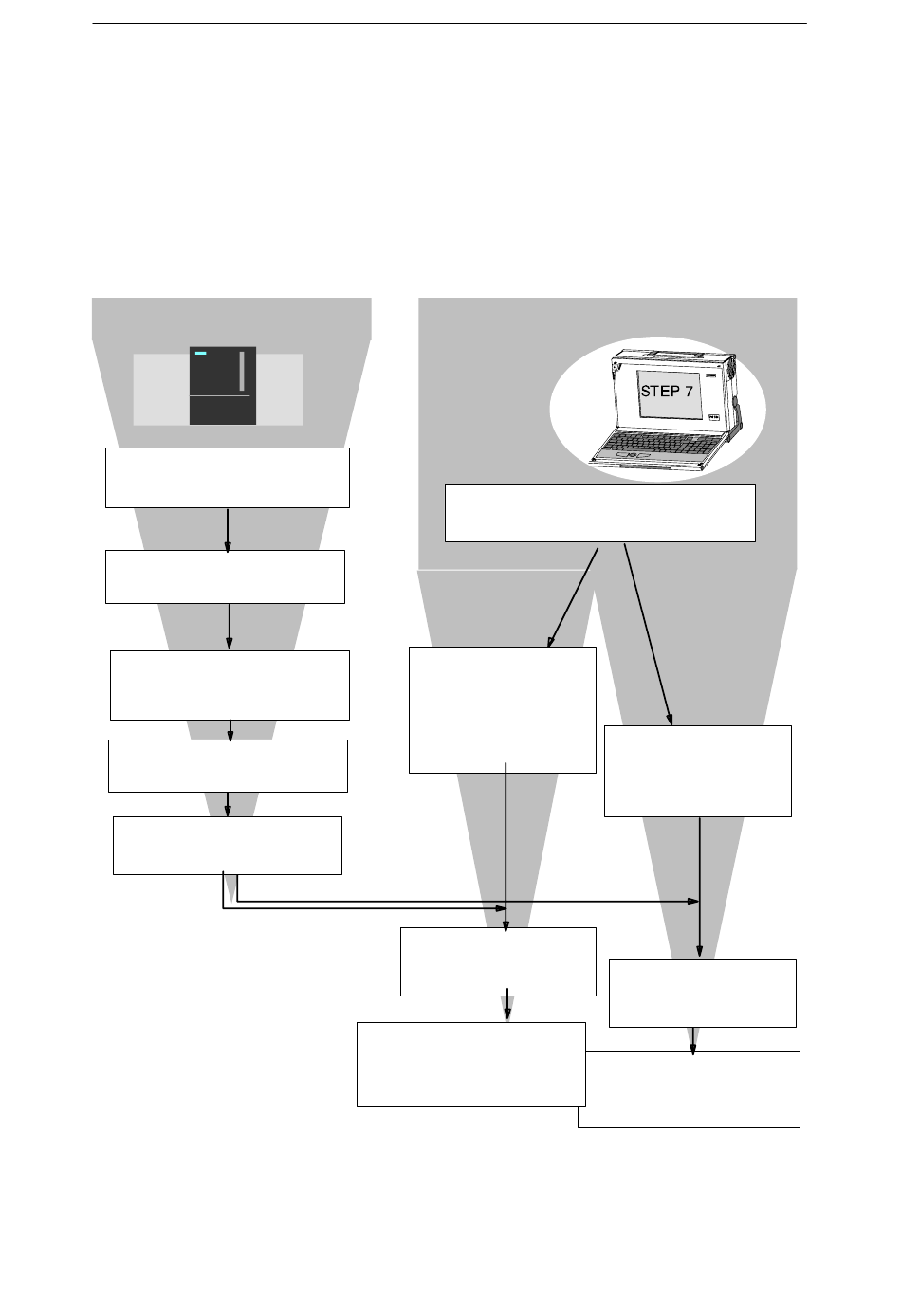

Follow the steps as shown in the graphic below; please make sure you read the
supplementary notes in this section. Installation and configuration can initially be
considered as independent procedures.
Installation:
Install the IWLAN/PB Link PN IO
on a standard mounting rail
Connect to the power supply.
Connect the device to
PROFIBUS and to the WLAN
over the antenna.
Insert the PRESET PLUG.
Switch the power supply on.
IWLAN/PB Link PN IO Gateway for Industrial Ethernet / Manual Part B9
Release 1/2005
C79000-G8976-C200-01_vorabversion_01
Configuration: (see also Chapter 4):
Install the SIMATIC STEP 7
configuration software on a PG/PC.
Use as a PROFINET IO
device and as gateway
See Section 4.2
Configure the IWLAN/PB
Link PN IO as an IO
device in a PN IO system
(proxy with attached DP
master system)
Assign a device name to
the IWLAN/PB Link PN IO.
Download or update the
database (configuration) of the
corresponding PROFINET IO
controller
2 Installation and Commissioning
Use as a gateway
only
See Section 4.1
Configure the
IWLAN/PB Link PN IO as
an S7-300 station with
HW Config.
Assign an IP address to
the IWLAN/PB Link PN
IO.
Download the database
(configuration) from STEP 7 to
the IWLAN/PB Link PN IO.
