1 Construction

1 Construction
LED displays
Reset button
C -PLUG

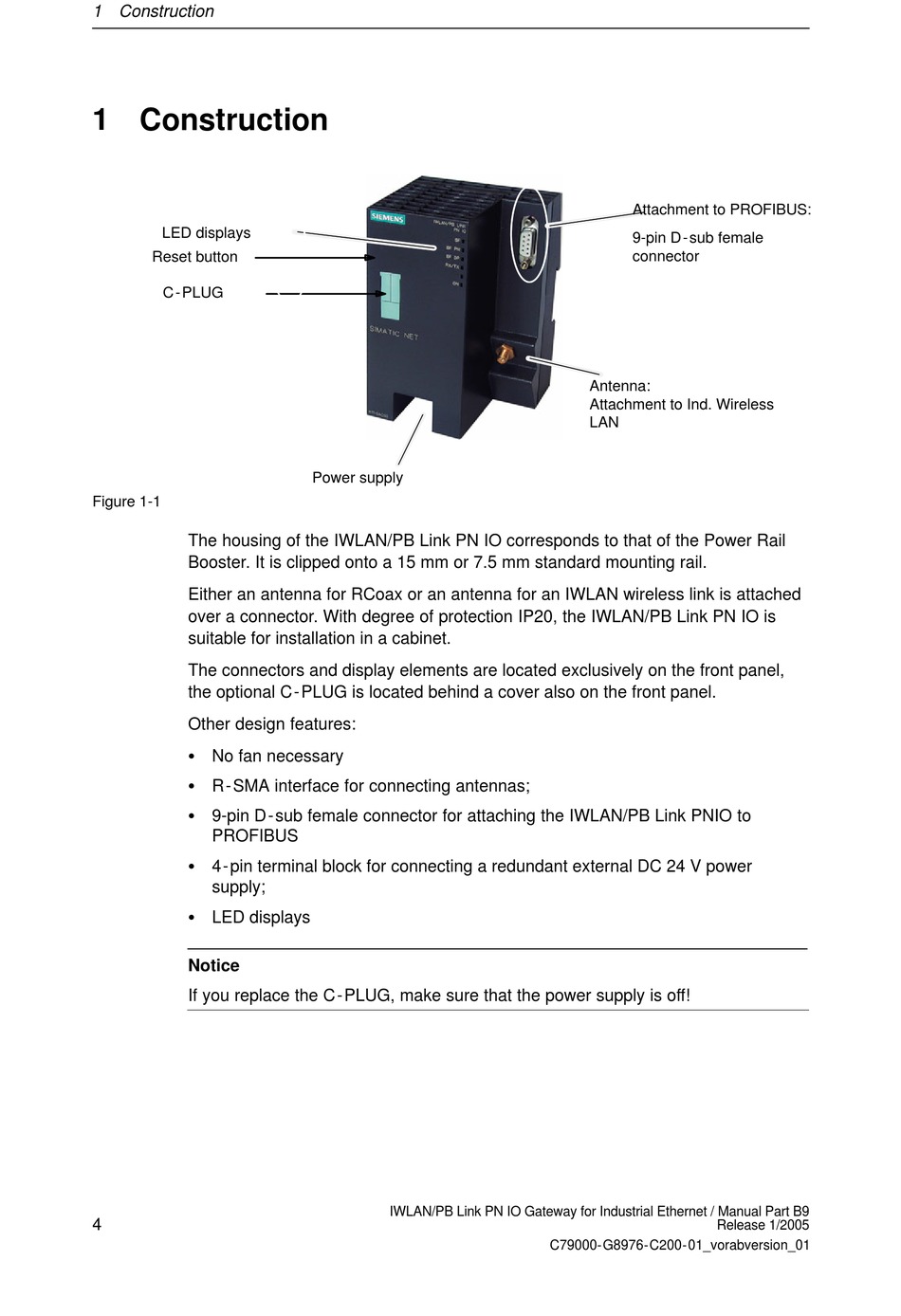

Figure 1-1
The housing of the IWLAN/PB Link PN IO corresponds to that of the Power Rail
Booster. It is clipped onto a 15 mm or 7.5 mm standard mounting rail.
Either an antenna for RCoax or an antenna for an IWLAN wireless link is attached
over a connector. With degree of protection IP20, the IWLAN/PB Link PN IO is
suitable for installation in a cabinet.
The connectors and display elements are located exclusively on the front panel,
the optional C-PLUG is located behind a cover also on the front panel.
Other design features:
S No fan necessary
S R-SMA interface for connecting antennas;
S 9-pin D-sub female connector for attaching the IWLAN/PB Link PNIO to
PROFIBUS
S 4-pin terminal block for connecting a redundant external DC 24 V power
supply;
S LED displays
Notice
If you replace the C-PLUG, make sure that the power supply is off!
4
Power supply
IWLAN/PB Link PN IO Gateway for Industrial Ethernet / Manual Part B9
Attachment to PROFIBUS:
9-pin D -sub female
connector
Antenna:
Attachment to Ind. Wireless
LAN
Release 1/2005
C79000-G8976-C200-01_vorabversion_01
