ENGLISH
4. REMOTE CONTROL INPUT: Used to connect a simple CA-8 hand controller while the unit is used in
standalone or master/slave mode.
5. SENSITIVITY: Used to adjust the sensitivity of the micro when the unit is used in standalone or
master/slave mode.
6. DMX INPUT/OUTPUT: used for DMX512 linking. Use good quality 3pin XLR M/F balanced cable to link
the units together.
7. MAINS CABLE: double-check the mains voltage (should be 230V 50Hz) before inserting the cable!
8. MAINS FUSE: Always replace this fuse with a fuse that has the same characteristics! (250V/2A slow)

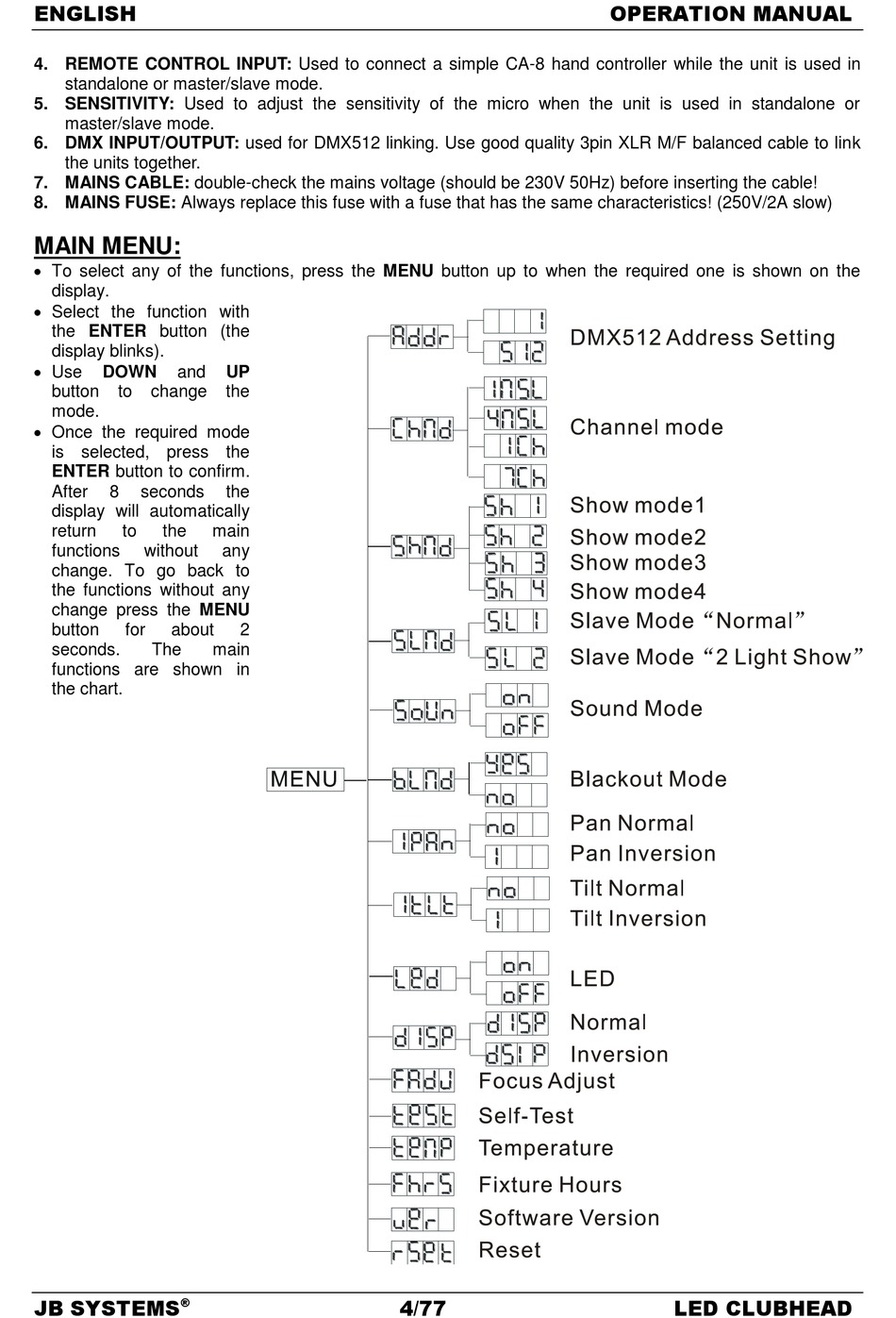

MAIN MENU:
 To select any of the functions, press the MENU button up to when the required one is shown on the
display.
 Select the function with
the ENTER button (the
display blinks).
 Use
DOWN and
button to change
mode.
 Once the required mode
is selected, press the
ENTER button to confirm.
After 8 seconds
display will automatically
return to the
functions without
change. To go back to
the functions without any
change press the MENU
button for about
seconds. The
functions are shown in
the chart.
JB SYSTEMS
®
UP
the
the
main
any
2
main
4/77
OPERATION MANUAL
LED CLUBHEAD
