ENGLISH

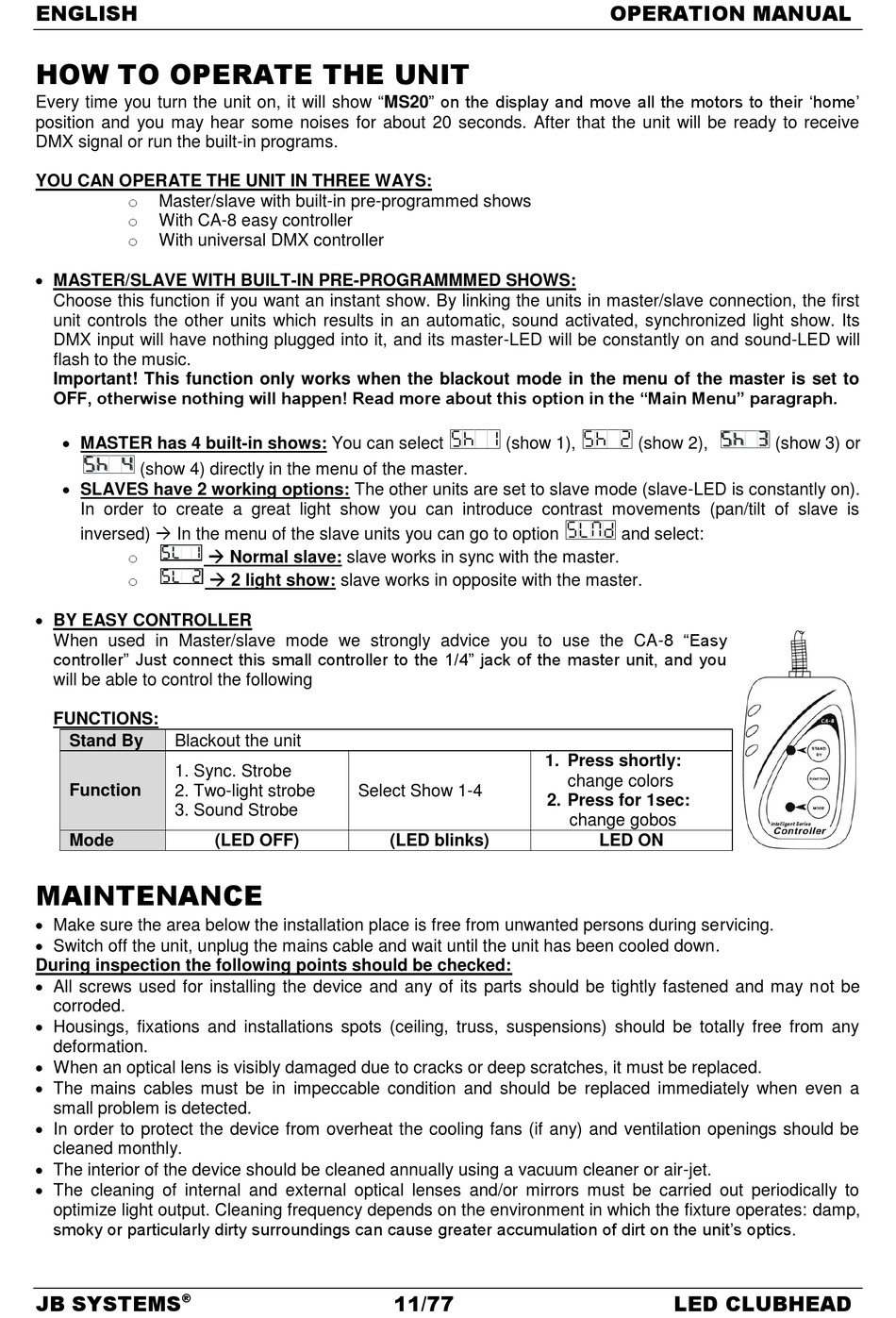

HOW TO OPERATE THE UNIT

Every time you turn the unit on, it will show "MS20" on the display and move all the motors to their 'home'
position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive
DMX signal or run the built-in programs.
YOU CAN OPERATE THE UNIT IN THREE WAYS:
o
Master/slave with built-in pre-programmed shows
o
With CA-8 easy controller
o
With universal DMX controller
 MASTER/SLAVE WITH BUILT-IN PRE-PROGRAMMMED SHOWS:
Choose this function if you want an instant show. By linking the units in master/slave connection, the first
unit controls the other units which results in an automatic, sound activated, synchronized light show. Its
DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will
flash to the music.
Important! This function only works when the blackout mode in the menu of the master is set to
OFF, otherwise nothing will happen! Read more about this option in the "Main Menu" paragraph.
 MASTER has 4 built-in shows: You can select
(show 4) directly in the menu of the master.
 SLAVES have 2 working options: The other units are set to slave mode (slave-LED is constantly on).
In order to create a great light show you can introduce contrast movements (pan/tilt of slave is
inversed)  In the menu of the slave units you can go to option
o
o
 BY EASY CONTROLLER
When used in Master/slave mode we strongly advice you to use the CA-8 "Easy
controller" Just connect this small controller to the 1/4" jack of the master unit, and you
will be able to control the following
FUNCTIONS:
Stand By
Blackout the unit
1. Sync. Strobe
Function 2. Two-light strobe
3. Sound Strobe
Mode

MAINTENANCE

 Make sure the area below the installation place is free from unwanted persons during servicing.
 Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.
During inspection the following points should be checked:
 All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.
 Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.
 When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
 The mains cables must be in impeccable condition and should be replaced immediately when even a
small problem is detected.
 In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be
cleaned monthly.
 The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.
 The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.
JB SYSTEMS
®
 Normal slave: slave works in sync with the master.
 2 light show: slave works in opposite with the master.
Select Show 1-4
(LED OFF)
(show 1),
1. Press shortly:
2. Press for 1sec:
(LED blinks)
11/77
OPERATION MANUAL
(show 2),
and select:
change colors
change gobos
LED ON
LED CLUBHEAD
(show 3) or
