ENGLISH

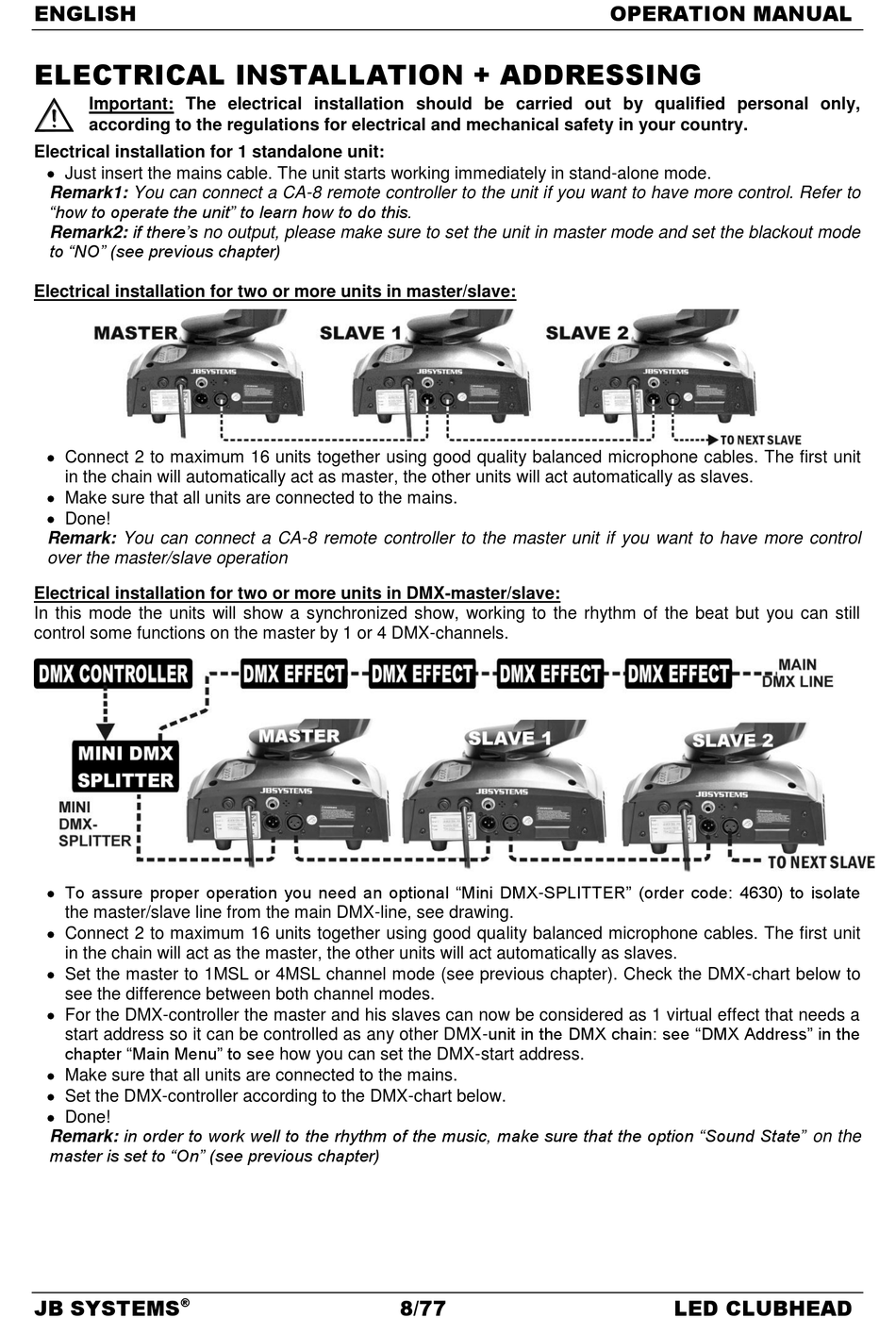

ELECTRICAL INSTALLATION + ADDRESSING
Important: The electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
Electrical installation for 1 standalone unit:
 Just insert the mains cable. The unit starts working immediately in stand-alone mode.
Remark1: You can connect a CA-8 remote controller to the unit if you want to have more control. Refer to
"how to operate the unit" to learn how to do this.
Remark2: if there's no output, please make sure to set the unit in master mode and set the blackout mode
to "NO" (see previous chapter)
Electrical installation for two or more units in master/slave:
 Connect 2 to maximum 16 units together using good quality balanced microphone cables. The first unit
in the chain will automatically act as master, the other units will act automatically as slaves.
 Make sure that all units are connected to the mains.
 Done!
Remark: You can connect a CA-8 remote controller to the master unit if you want to have more control
over the master/slave operation
Electrical installation for two or more units in DMX-master/slave:
In this mode the units will show a synchronized show, working to the rhythm of the beat but you can still
control some functions on the master by 1 or 4 DMX-channels.
 To assure proper operation you need an optional "Mini DMX-SPLITTER" (order code: 4630) to isolate
the master/slave line from the main DMX-line, see drawing.
 Connect 2 to maximum 16 units together using good quality balanced microphone cables. The first unit
in the chain will act as the master, the other units will act automatically as slaves.
 Set the master to 1MSL or 4MSL channel mode (see previous chapter). Check the DMX-chart below to
see the difference between both channel modes.
 For the DMX-controller the master and his slaves can now be considered as 1 virtual effect that needs a
start address so it can be controlled as any other DMX-unit in the DMX chain: see "DMX Address" in the
chapter "Main Menu" to see how you can set the DMX-start address.
 Make sure that all units are connected to the mains.
 Set the DMX-controller according to the DMX-chart below.
 Done!
Remark: in order to work well to the rhythm of the music, make sure that the option "Sound State" on the
master is set to "On" (see previous chapter)
