ENGLISH

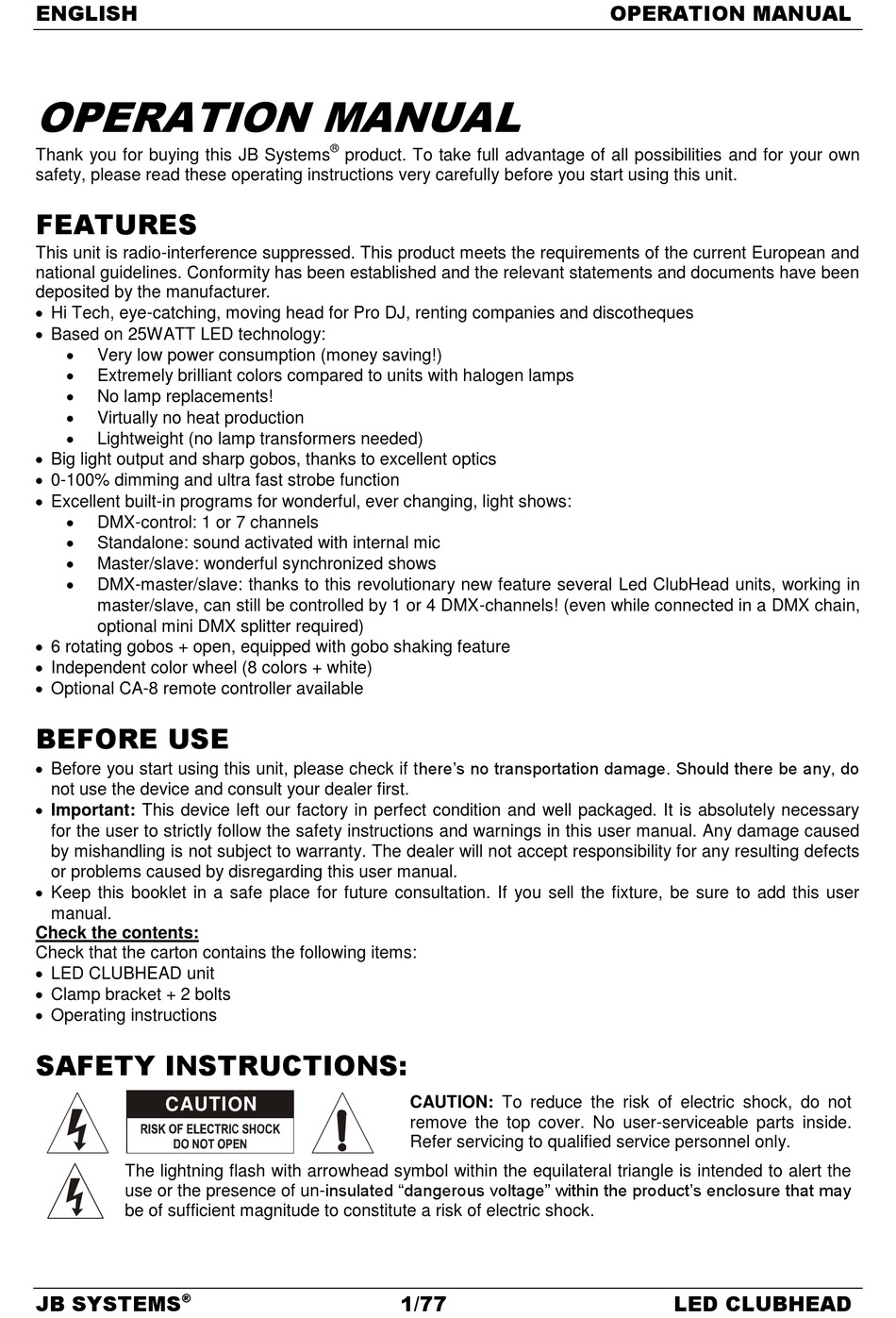

OPERATION MANUAL
Thank you for buying this JB Systems
safety, please read these operating instructions very carefully before you start using this unit.
FEATURES
This unit is radio-interference suppressed. This product meets the requirements of the current European and
national guidelines. Conformity has been established and the relevant statements and documents have been
deposited by the manufacturer.
 Hi Tech, eye-catching, moving head for Pro DJ, renting companies and discotheques
 Based on 25WATT LED technology:

Very low power consumption (money saving!)

Extremely brilliant colors compared to units with halogen lamps

No lamp replacements!

Virtually no heat production

Lightweight (no lamp transformers needed)
 Big light output and sharp gobos, thanks to excellent optics
 0-100% dimming and ultra fast strobe function
 Excellent built-in programs for wonderful, ever changing, light shows:

DMX-control: 1 or 7 channels

Standalone: sound activated with internal mic

Master/slave: wonderful synchronized shows

DMX-master/slave: thanks to this revolutionary new feature several Led ClubHead units, working in
master/slave, can still be controlled by 1 or 4 DMX-channels! (even while connected in a DMX chain,
optional mini DMX splitter required)
 6 rotating gobos + open, equipped with gobo shaking feature
 Independent color wheel (8 colors + white)
 Optional CA-8 remote controller available

BEFORE USE

 Before you start using this unit, please check if there's no transportation damage. Should there be any, do
not use the device and consult your dealer first.
 Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary
for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused
by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects
or problems caused by disregarding this user manual.
 Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user
manual.
Check the contents:
Check that the carton contains the following items:
 LED CLUBHEAD unit
 Clamp bracket + 2 bolts
 Operating instructions

SAFETY INSTRUCTIONS:

CAUTION
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the
use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may
be of sufficient magnitude to constitute a risk of electric shock.
JB SYSTEMS
®
®
product. To take full advantage of all possibilities and for your own
CAUTION: To reduce the risk of electric shock, do not
remove the top cover. No user-serviceable parts inside.
Refer servicing to qualified service personnel only.
1/77
OPERATION MANUAL
LED CLUBHEAD
