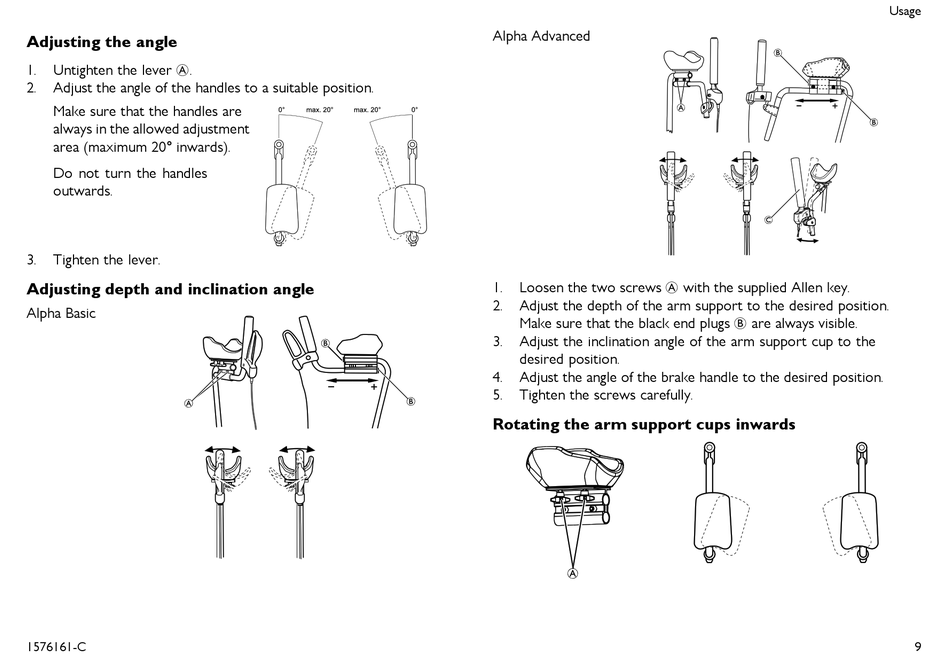

Adjusting the angle

1. Untighten the lever A.
2. Adjust the angle of the handles to a suitable position.
Make sure that the handles are
always in the allowed adjustment
area (maximum 20° inwards).
Do not turn the handles
outwards.
3. Tighten the lever.
Adjusting depth and inclination angle
Alpha Basic
A
1576161-C
0° max. 20° max. 20° 0°
Alpha Advanced
Loosen the two screws A with the supplied Allen key.
1.
2. Adjust the depth of the arm support to the desired position.
Make sure that the black end plugs B are always visible.
3. Adjust the inclination angle of the arm support cup to the
desired position.
4. Adjust the angle of the brake handle to the desired position.
5. Tighten the screws carefully.
