Dolomite®Alpha Basic / Dolomite®Alpha Advanced

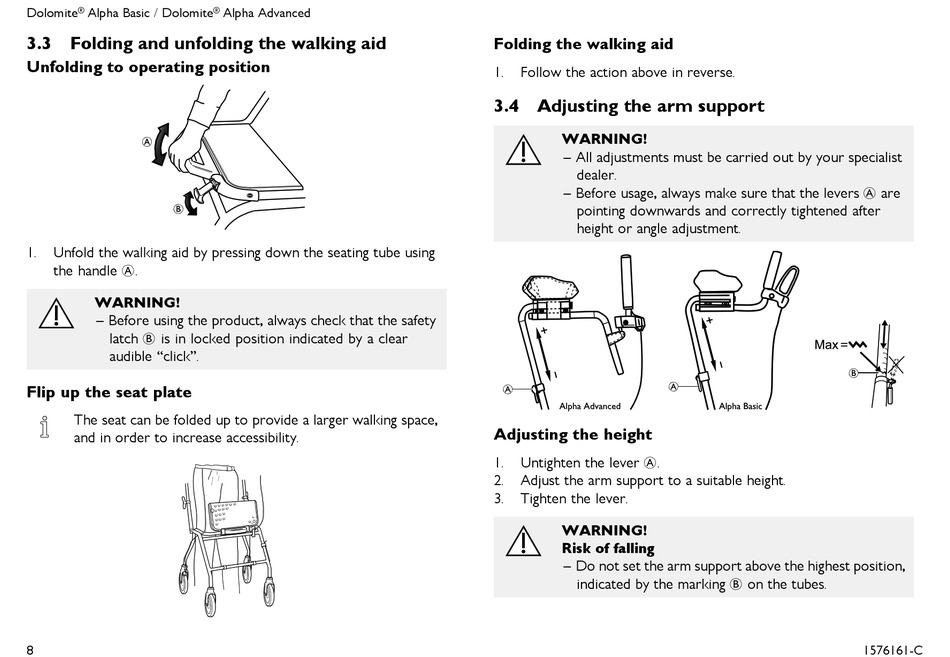

3.3 Folding and unfolding the walking aid

Unfolding to operating position
1. Unfold the walking aid by pressing down the seating tube using
the handle A.
WARNING!
– Before using the product, always check that the safety
latch B is in locked position indicated by a clear
audible "click".
Flip up the seat plate
The seat can be folded up to provide a larger walking space,
and in order to increase accessibility.
8
Folding the walking aid
1. Follow the action above in reverse.

3.4 Adjusting the arm support

WARNING!
– All adjustments must be carried out by your specialist
dealer.
– Before usage, always make sure that the levers A are
pointing downwards and correctly tightened after
height or angle adjustment.
A
A
Alpha Advanced

Adjusting the height

1. Untighten the lever A.
2. Adjust the arm support to a suitable height.
3. Tighten the lever.
WARNING!
Risk of falling
– Do not set the arm support above the highest position,
indicated by the marking B on the tubes.
B
Alpha Basic
1576161-C
