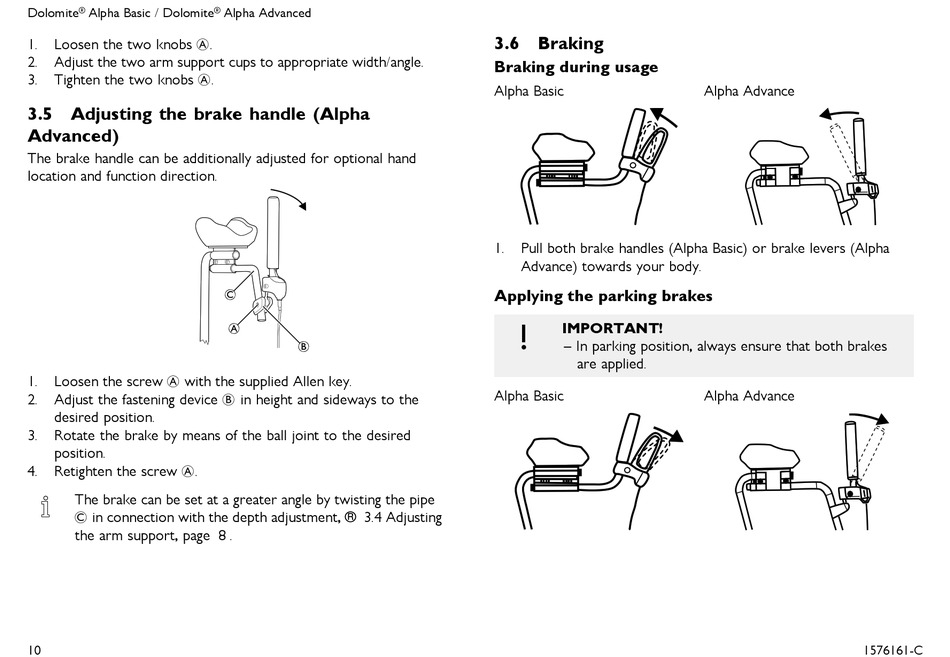

Dolomite®Alpha Basic / Dolomite®Alpha Advanced
1. Loosen the two knobs A.
2. Adjust the two arm support cups to appropriate width/angle.
3. Tighten the two knobs A.
3.5 Adjusting the brake handle (Alpha
Advanced)
The brake handle can be additionally adjusted for optional hand
location and function direction.
1. Loosen the screw A with the supplied Allen key.
2. Adjust the fastening device B in height and sideways to the
desired position.
3. Rotate the brake by means of the ball joint to the desired
position.
Retighten the screw A.
4.
The brake can be set at a greater angle by twisting the pipe
C in connection with the depth adjustment, ® 3.4 Adjusting
the arm support, page 8 .
10
C
A

3.6 Braking

Braking during usage
Alpha Basic
1. Pull both brake handles (Alpha Basic) or brake levers (Alpha
Advance) towards your body.
Applying the parking brakes
IMPORTANT!
– In parking position, always ensure that both brakes
are applied.
Alpha Basic
Alpha Advance
Alpha Advance
