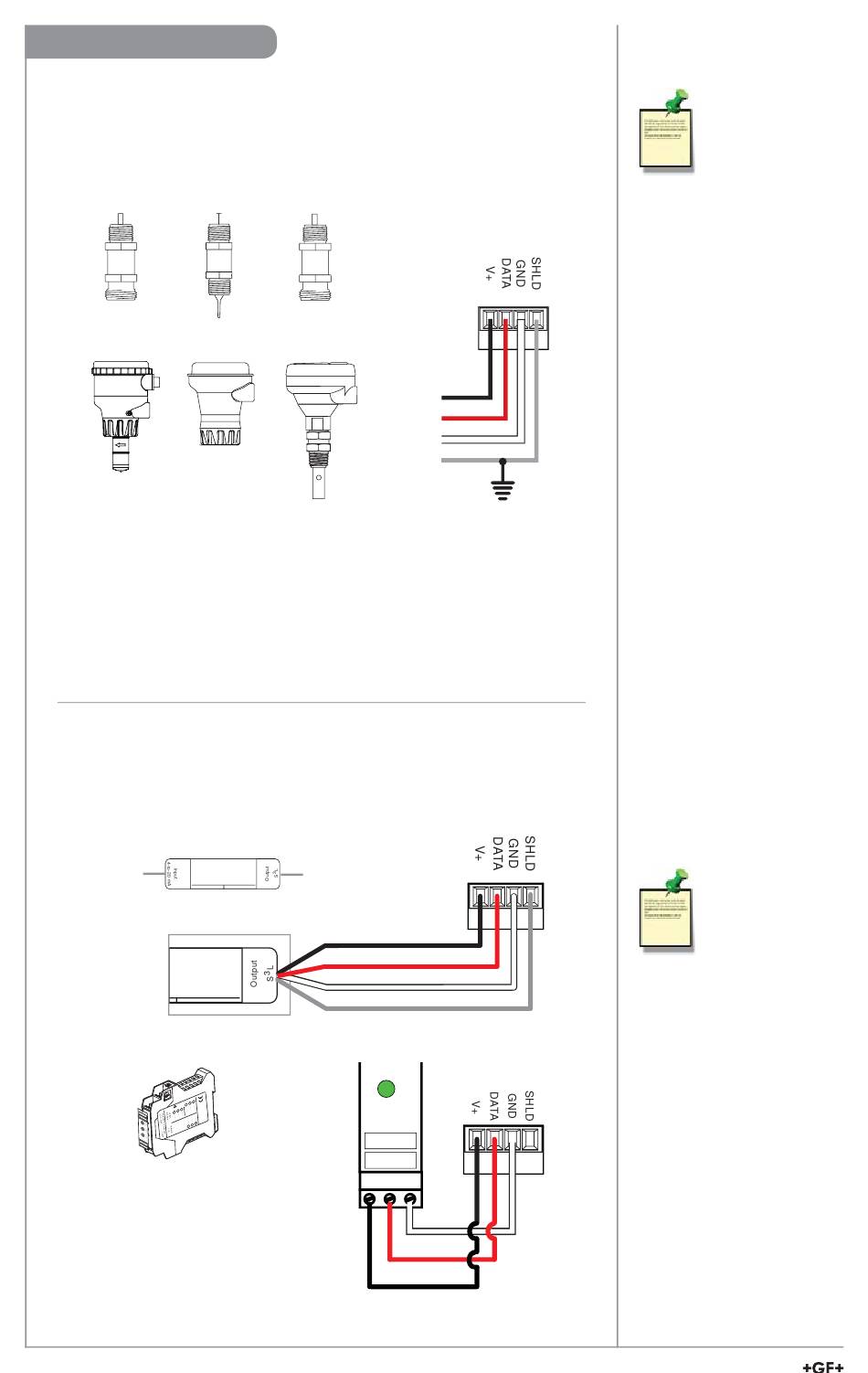

Sensor Wiring
Wiring for:
2250
2551* 2750/2751
* 2551-XX-21, -41
Display Magmeter
Wiring for:
8058-1
8058-1 Signet 8058 i-Go™
4-20 mA to S
close-up
8058-2
10 9900 Transmitter Start-Up Guide
2350 2450
2850
+GF+
Signet 8058 i-Go™
4-20 mA to S 3 L Converter
4-20 mA input S 3 L Output
3
L Converter
S 3 L Output
8058-2
close-up
9900 S 3 L Inputs
Black
Red
White
Shield
3
9900 S L Inputs
Black
Red
White
Shield
3
9900 S L Inputs
3
S L
DATA
N/C
7 8 9
WHITE
RED
BLACK
Technical Notes:
• Use 3-conductor
shielded cable for
sensor cable splices up
to 305 m (1000 ft) max.
• Maintain cable shield
through cable splice.
• Route sensor cable
away from AC power
lines.
• Connect the silver
(shield) wire to earth
ground in case of EMI
noise interference.
• The 2850 has no
SHIELD wire.
• To work correctly with
the 9900, the 2850
must be set for the
custom cell constant
or the actual probe
cell constant and the
9900 set for a 1.0 cell
constant.
Technical Notes:
• The cable length from
the 8058 to the 9900
must not exceed 60 m
(200 ft).
• When using the
8058-2, connect the
loop source to Channel
1 input ONLY.
• See the 8058 manual
for more information.
