4 Technical data

Mesh size: 0.5 mm
Material: Stainless steel 1.4301

5 Installation

5.1 Important advice

WARNING
When installing a heated potable water system,
local applicable standards, approvals and regula-
tions must be observed
For this reason:
– According to DIN standard, a safety valve must
be installed in the cold potable water pipe. This
valve must not be equipped with an isolating
facility.
– In accordance with the latest technical
development, a water filter has to be installed in
the cold potable water pipe.
CAUTION
The hydronic decoupling of the station must be
guaranteed
For this reason:
– Always use separate connections for the
connection of the storage cylinder circuit to the
buffer storage cylinder.
– The connecting pipes between the fresh water
station and the storage cylinder should be as
short as possible.
CAUTION
– Do not use any greasing agents or oils for the
installation, as these may destroy the seals. Any
dirt particles or grease or oil residues must be
flushed out.
– When choosing the operating fluid, the latest
technical status has to be considered (e.g. VDI
2035).
– Please protect against external forces (e.g.
impacts, vibrations etc.).
5.2 Preparations
DANGER
Risk of injury
Improper installation may lead to extensive injuries
to persons and damage to property.
For this reason:
– Installation must only be carried out by a qualified
gas and water specialist.
– Have any work at the electrical installation only
carried out by a qualified electrician.
5.3 Wire basket installation

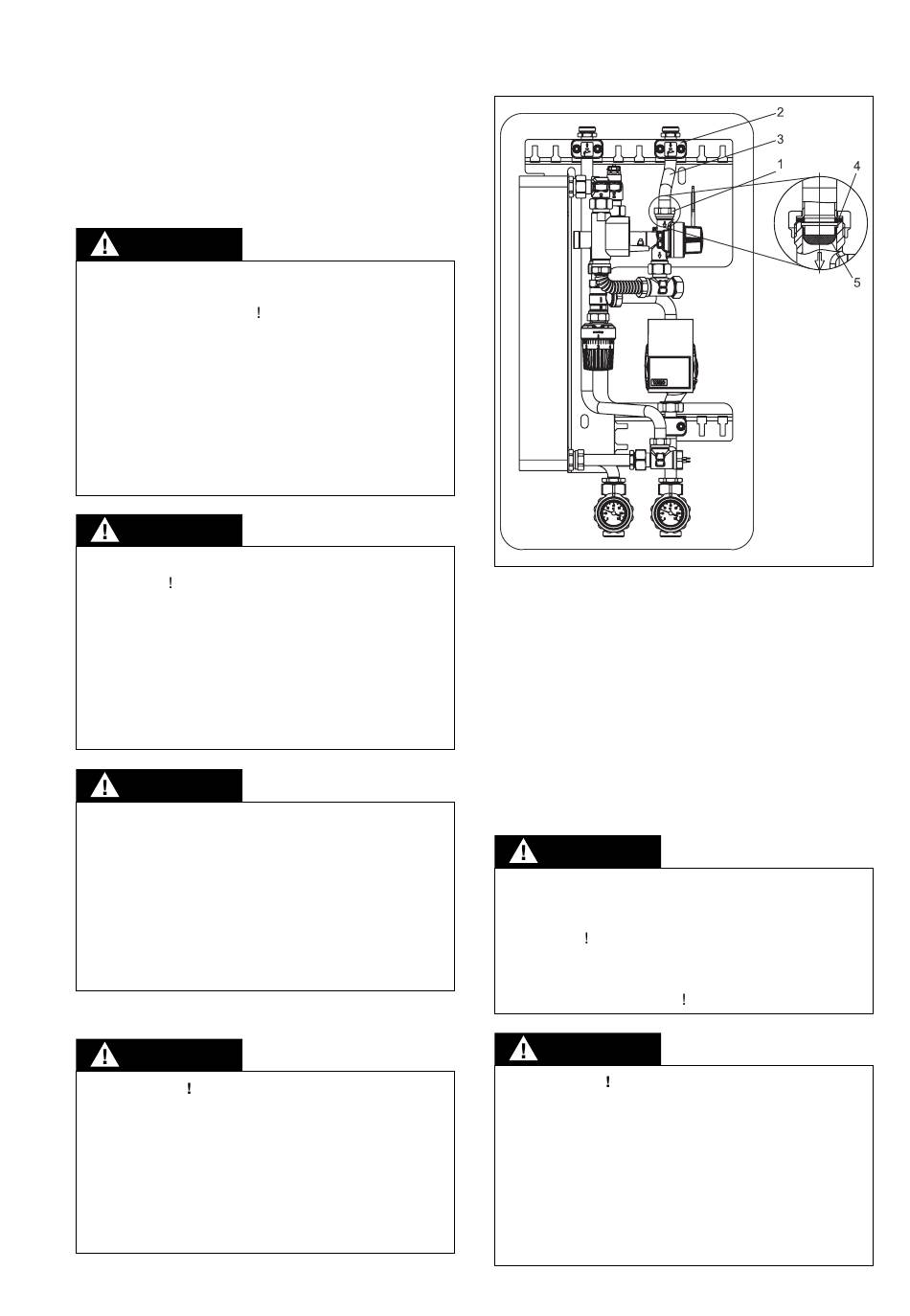

Illustr. 5.1 Installation position wire basket
5.3.1 Installation
– Close secondary circuit
– Depressurize secondary circuit.
– Loosen coupling (1).
– Loosen pipe clamp (2).
– Turn pipe (3) to the side.
– Remove (4) ring gasket.
– Fit wire basket (5).
– Insert new ring gasket and tighten coupling.
– Tighten pipe clamp (2).
– Insert power plug into the socket.
CAUTION
The installation of a heated potable water system
must be carried out in accordance with the valid
standards, approved rules of technology and local
regulations
Especially when operating a circulation system,
the hygiene regulations according to DVGW sheet
W551 must be observed
DANGER
Risk of injury
Improper installation may lead to extensive injuries
to persons and damage to property.
For this reason:
– Installation must only be carried out by a qualified
electrician.
– Before work commences, please ensure that all
components are disconnected from the power
supply.
