STEINEL Control PRO Anleitung Seite 2

Control PRO
IR Quattro
i
Impulser
110016825 02/2011
W W W 4 .3
4 .1 4 .2

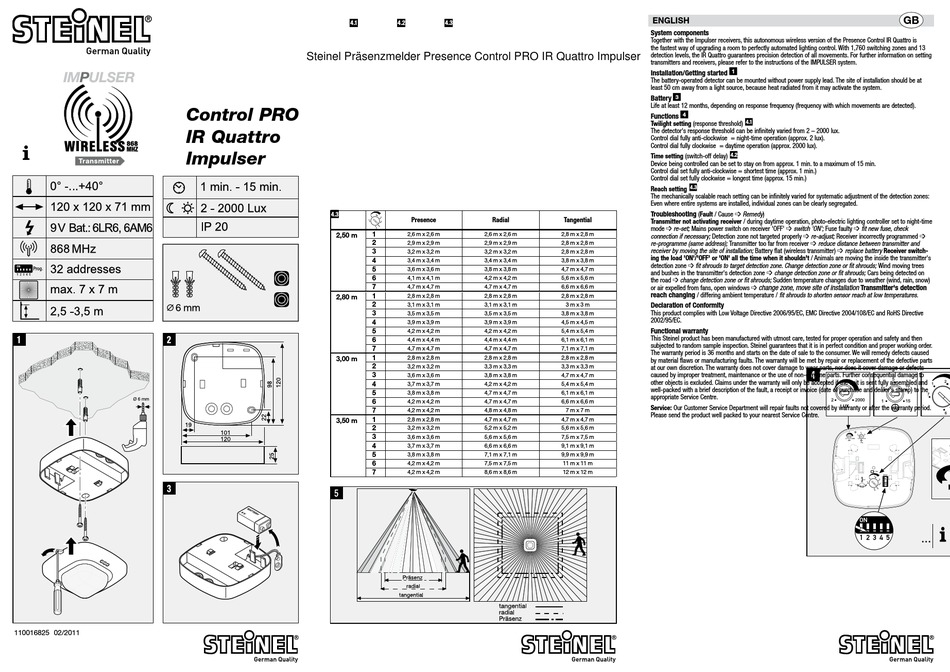

Steinel Präsenzmelder Presence Control PRO IR Quattro Impulser
W
4 .3
Presence
1
2,50 m 2,6 m x 2,6 m 2,6 m x 2,6 m
2
2,9 m x 2,9 m 2,9 m x 2,9 m
3 3,2 m x 3,2 m 3,2 m x 3,2 m
4
3,4 m x 3,4 m 3,4 m x 3,4 m
5
3,6 m x 3,6 m 3,8 m x 3,8 m
6
4,1 m x 4,1 m 4,2 m x 4,2 m
7 4,7 m x 4,7 m 4,7 m x 4,7 m
1
2,80 m 2,8 m x 2,8 m 2,8 m x 2,8 m
2
3,1 m x 3,1 m 3,1 m x 3,1 m
3
3,5 m x 3,5 m 3,5 m x 3,5 m
4
3,9 m x 3,9 m 3,9 m x 3,9 m
5
4,2 m x 4,2 m 4,2 m x 4,2 m
6 4,4 m x 4,4 m 4,4 m x 4,4 m
7
4,7 m x 4,7 m 4,7 m x 4,7 m
1
3,00 m 2,8 m x 2,8 m 2,8 m x 2,8 m
2
3,2 m x 3,2 m 3,3 m x 3,3 m
3
3,6 m x 3,6 m 3,8 m x 3,8 m
4 3,7 m x 3,7 m 4,2 m x 4,2 m
5
3,8 m x 3,8 m 4,7 m x 4,7 m
6
4,2 m x 4,2 m 4,7 m x 4,7 m
7
4,2 m x 4,2 m 4,8 m x 4,8 m
1
3,50 m 2,8 m x 2,8 m 4,7 m x 4,7 m
2 3,2 m x 3,2 m 5,2 m x 5,2 m
3
3,6 m x 3,6 m 5,6 m x 5,6 m
4
3,7 m x 3,7 m 6,6 m x 6,6 m
5
3,8 m x 3,8 m 7,1 m x 7,1 m
6
4,2 m x 4,2 m 7,5 m x 7,5 m
7 4,2 m x 4,2 m 8,6 m x 8,6 m
ENGLISH
System components
Together with the Impulser receivers, this autonomous wireless version of the Presence Control IR Quattro is
the fastest way of upgrading a room to perfectly automated lighting control. With 1,760 switching zones and 13
detection levels, the IR Quattro guarantees precision detection of all movements. For further information on setting
transmitters and receivers, please refer to the instructions of the IMPULSER system.
Installation/Getting started
The battery-operated detector can be mounted without power supply lead. The site of installation should be at
least 50 cm away from a light source, because heat radiated from it may activate the system.
Battery
Life at least 12 months, depending on response frequency (frequency with which movements are detected).
Functions
Twilight setting (response threshold)
The detector's response threshold can be infinitely varied from 2 – 2000 lux.
Control dial fully anti-clockwise = night-time operation (approx. 2 lux).
Control dial fully clockwise = daytime operation (approx. 2000 lux).
Time setting (switch-off delay)
Device being controlled can be set to stay on from approx. 1 min. to a maximum of 15 min.
Control dial set fully anti-clockwise = shortest time (approx. 1 min.)
Control dial set fully clockwise = longest time (approx. 15 min.)
Reach setting
The mechanically scalable reach setting can be infinitely varied for systematic adjustment of the detection zones:
Even where entire systems are installed, individual zones can be clearly segregated.
Troubleshooting
Radial Tangential
Transmitter not activating receiver / during daytime operation, photo-electric lighting controller set to night-time
mode ➩ re-set; Mains power switch on receiver 'OFF' ➩ switch 'ON'; Fuse faulty ➩ fit new fuse, check
2,8 m x 2,8 m
connection if necessary; Detection zone not targeted properly ➩ re-adjust; Receiver incorrectly programmed ➩
2,8 m x 2,8 m re-programme (same address); Transmitter too far from receiver ➩ reduce distance between transmitter and
receiver by moving the site of installation; Battery flat (wireless transmitter) ➩ replace battery Receiver switch-
2,8 m x 2,8 m
ing the load 'ON'/'OFF' or 'ON' all the time when it shouldn't / Animals are moving the inside the transmitter's
3,8 m x 3,8 m
detection zone ➩ fit shrouds to target detection zone. Change detection zone or fit shrouds; Wind moving trees
4,7 m x 4,7 m
and bushes in the transmitter's detection zone ➩ change detection zone or fit shrouds; Cars being detected on
5,6 m x 5,6 m
the road ➩ change detection zone or fit shrouds; Sudden temperature changes due to weather (wind, rain, snow)
6,6 m x 6,6 m
or air expelled from fans, open windows ➩
reach changing
2,8 m x 2,8 m
3 m x 3 m Declaration of Conformity
This product complies with Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC and RoHS Directive
3,8 m x 3,8 m
2002/95/EC.
4,5 m x 4,5 m
Functional warranty
5,4 m x 5,4 m
This Steinel product has been manufactured with utmost care, tested for proper operation and safety and then
6,1 m x 6,1 m
subjected to random sample inspection. Steinel guarantees that it is in perfect condition and proper working order.
7,1 m x 7,1 m
The warranty period is 36 months and starts on the date of sale to the consumer. We will remedy defects caused
2,8 m x 2,8 m
by material flaws or manufacturing faults. The warranty will be met by repair or replacement of the defective parts
3,3 m x 3,3 m
at our own discretion. The warranty does not cover damage to wear parts, nor does it cover damage or defects
caused by improper treatment, maintenance or the use of non-genuine parts. Further consequential damage to
4,7 m x 4,7 m
other objects is excluded. Claims under the warranty will only be accepted if the unit is sent fully assembled and
5,4 m x 5,4 m
well-packed with a brief description of the fault, a receipt or invoice (date of purchase and dealer's stamp) to the
6,1 m x 6,1 m
appropriate Service Centre.
6,6 m x 6,6 m
Service: Our Customer Service Department will repair faults not covered by warranty or after the warranty period.
7 m x 7 m
Please send the product well packed to your nearest Service Centre.
4,7 m x 4,7 m
5,6 m x 5,6 m
7,5 m x 7,5 m
9,1 m x 9,1 m
9,9 m x 9,9 m
11 m x 11 m
12 m x 12 m
W
1
W
3
W 4
W
4 .1
W 4 .2
W
4 .3
(Fault / Cause ➩ Remedy)
change zone, move site of installation Transmitter's detection
/ differing ambient temperature / fit shrouds to shorten sensor reach at low temperatures.
GB
