WARNING
• Install the equipment by carefully following the instructions given by the manufacturer and in compliance with the standards in force.
• All the equipment must only be used for the purpose it was designed for. Comelit Group S.p.A. does not assume responsibility for improper use of the
apparatus, for modifications made by third parties for any reason or purpose, or for the use of non-original accessories and materials.
• All the products comply with the requirements of Directive 2006/95/EC (which replaces Directive 73/23/EEC and subsequent amendments), as certified
by the CE mark they carry.
• Installation, mounting and assistance procedures for electrical devices must only be performed by specialised electricians.
• Cut off the power supply before carrying out any maintenance work.
• Clean using a damp cloth. Do not use alcohol or other aggressive products.

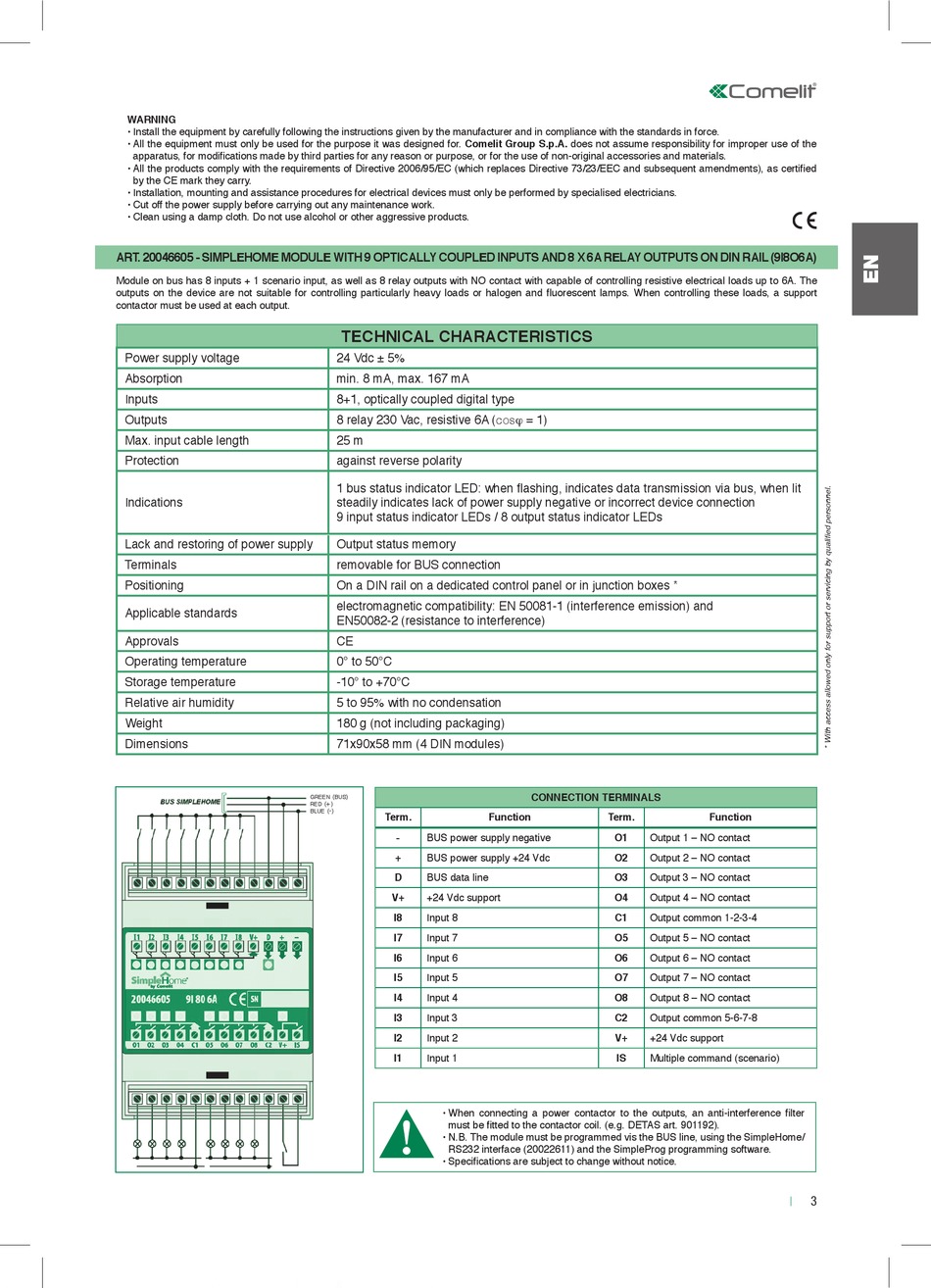

ART. 20046605 - SIMPLEHOME MODULE WITH 9 OPTICALLY COUPLED INPUTS AND 8 X 6A RELAY OUTPUTS ON DIN RAIL (9I8O6A)
Module on bus has 8 inputs + 1 scenario input, as well as 8 relay outputs with NO contact with capable of controlling resistive electrical loads up to 6A. The
outputs on the device are not suitable for controlling particularly heavy loads or halogen and fluorescent lamps. When controlling these loads, a support
contactor must be used at each output.
Power supply voltage
Absorption
Inputs
Outputs
Max. input cable length
Protection
Indications
Lack and restoring of power supply
Terminals
Positioning
Applicable standards
Approvals
Operating temperature
Storage temperature
Relative air humidity
Weight
Dimensions

TECHNICAL CHARACTERISTICS

24 Vdc ± 5%
min. 8 mA, max. 167 mA
8+1, optically coupled digital type
8 relay 230 Vac, resistive 6A (cosj = 1)
25 m
against reverse polarity
1 bus status indicator LED: when flashing, indicates data transmission via bus, when lit
steadily indicates lack of power supply negative or incorrect device connection
9 input status indicator LEDs / 8 output status indicator LEDs
Output status memory
removable for BUS connection
On a DIN rail on a dedicated control panel or in junction boxes *
electromagnetic compatibility: EN 50081-1 (interference emission) and
EN50082-2 (resistance to interference)
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
180 g (not including packaging)
71x90x58 mm (4 DIN modules)
green ( bus )
+
red ( )
-
blue ( )
Term.
- BUS power supply negative
+ BUS power supply +24 Vdc
D
BUS data line
V+ +24 Vdc support
I8
Input 8
I7 Input 7
I6
Input 6
I5 Input 5
I4 Input 4
I3
Input 3
I2 Input 2
I1
Input 1
• When connecting a power contactor to the outputs, an anti-interference filter
must be fitted to the contactor coil. (e.g. DETAS art. 901192).
• N.B. The module must be programmed vis the BUS line, using the SimpleHome/
RS232 interface (20022611) and the SimpleProg programming software.
• Specifications are subject to change without notice.

CONNECTION TERMINALS

Function Term.
O1 Output 1 – NO contact
O2 Output 2 – NO contact
O3
Output 3 – NO contact
O4 Output 4 – NO contact
C1
Output common 1-2-3-4
O5 Output 5 – NO contact
O6
Output 6 – NO contact
O7 Output 7 – NO contact
O8 Output 8 – NO contact
C2
Output common 5-6-7-8
V+ +24 Vdc support
IS
Multiple command (scenario)
Function
