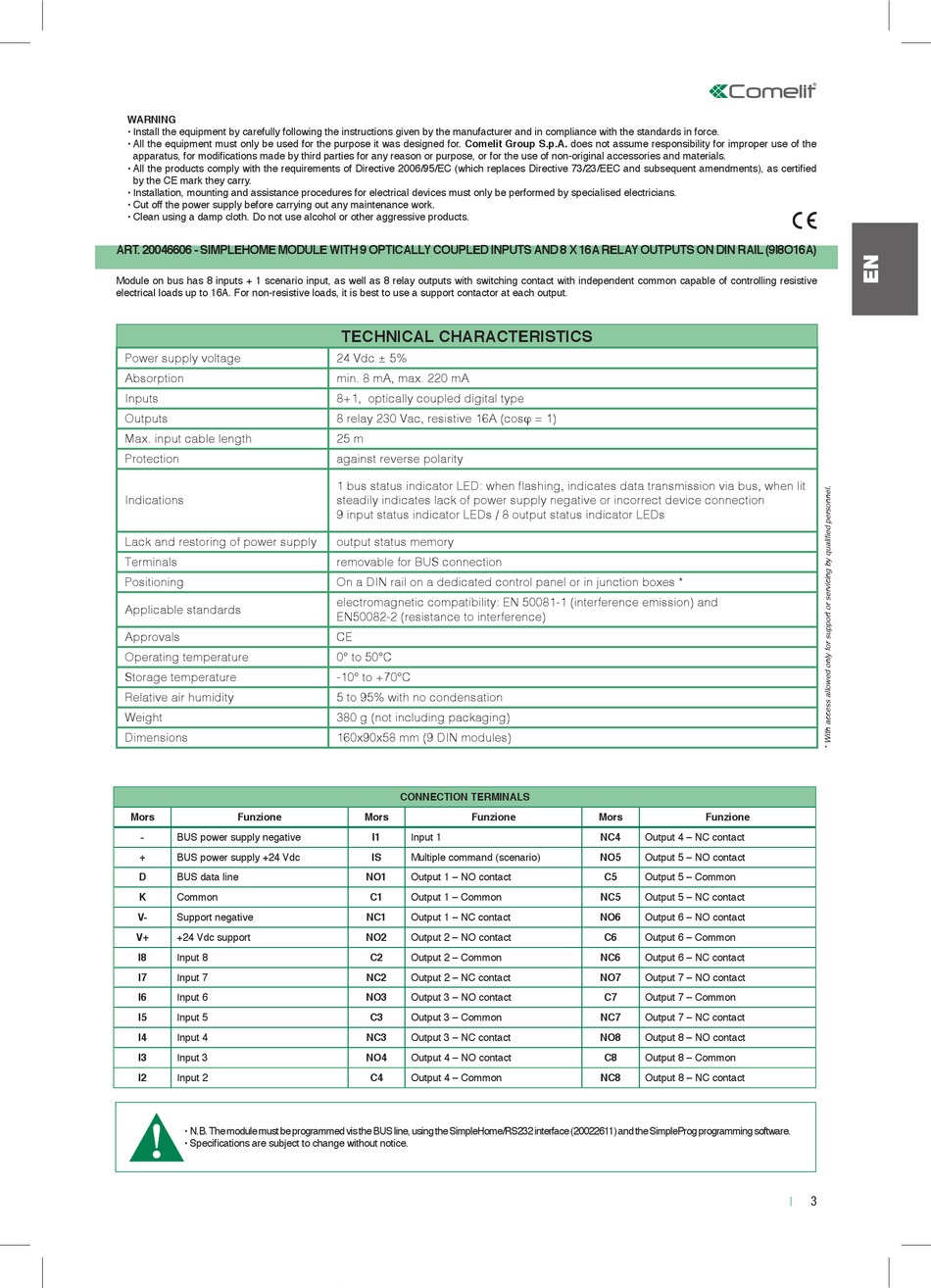

Technical Characteristics; Connection Terminals - Comelit Simplehome Technisches Handbuch

WARNING
• Install the equipment by carefully following the instructions given by the manufacturer and in compliance with the standards in force.
• All the equipment must only be used for the purpose it was designed for. Comelit Group S.p.A. does not assume responsibility for improper use of the
apparatus, for modifications made by third parties for any reason or purpose, or for the use of non-original accessories and materials.
• All the products comply with the requirements of Directive 2006/95/EC (which replaces Directive 73/23/EEC and subsequent amendments), as certified
by the CE mark they carry.
• Installation, mounting and assistance procedures for electrical devices must only be performed by specialised electricians.
• Cut off the power supply before carrying out any maintenance work.
• Clean using a damp cloth. Do not use alcohol or other aggressive products.
ART. 20046606 - SIMPLEHOME MODULE WITH 9 OPTICALLY COUPLED INPUTS AND 8 X 16A RELAY OUTPUTS ON DIN RAIL (9I8O16A)
Module on bus has 8 inputs + 1 scenario input, as well as 8 relay outputs with switching contact with independent common capable of controlling resistive
electrical loads up to 16A. For non-resistive loads, it is best to use a support contactor at each output.
Power supply voltage
Absorption
Inputs
Outputs
Max. input cable length
Protection
Indications
Lack and restoring of power supply
Terminals
Positioning
Applicable standards
Approvals
Operating temperature
Storage temperature
Relative air humidity
Weight
Dimensions
Mors Funzione
-
BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
K
Common
V- Support negative
V+
+24 Vdc support
I8 Input 8
I7 Input 7
I6 Input 6
I5 Input 5
I4
Input 4
I3 Input 3
I2
Input 2
• N.B. The module must be programmed vis the BUS line, using the SimpleHome/RS232 interface (20022611) and the SimpleProg programming software.
• Specifications are subject to change without notice.

TECHNICAL CHARACTERISTICS

24 Vdc ± 5%
min. 8 mA, max. 220 mA
8+1, optically coupled digital type
8 relay 230 Vac, resistive 16A (cosj = 1)
25 m
against reverse polarity
1 bus status indicator LED: when flashing, indicates data transmission via bus, when lit
steadily indicates lack of power supply negative or incorrect device connection
9 input status indicator LEDs / 8 output status indicator LEDs
output status memory
removable for BUS connection
On a DIN rail on a dedicated control panel or in junction boxes *
electromagnetic compatibility: EN 50081-1 (interference emission) and
EN50082-2 (resistance to interference)
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
380 g (not including packaging)
160x90x58 mm (9 DIN modules)

CONNECTION TERMINALS

Mors Funzione
I1
Input 1
IS Multiple command (scenario)
NO1 Output 1 – NO contact
C1
Output 1 – Common
NC1 Output 1 – NC contact
NO2
Output 2 – NO contact
C2 Output 2 – Common
NC2 Output 2 – NC contact
NO3 Output 3 – NO contact
C3 Output 3 – Common
NC3
Output 3 – NC contact
NO4 Output 4 – NO contact
C4
Output 4 – Common
Mors Funzione
NC4
Output 4 – NC contact
NO5 Output 5 – NO contact
C5 Output 5 – Common
NC5
Output 5 – NC contact
NO6 Output 6 – NO contact
C6
Output 6 – Common
NC6 Output 6 – NC contact
NO7 Output 7 – NO contact
C7 Output 7 – Common
NC7 Output 7 – NC contact
NO8
Output 8 – NO contact
C8 Output 8 – Common
NC8
Output 8 – NC contact
