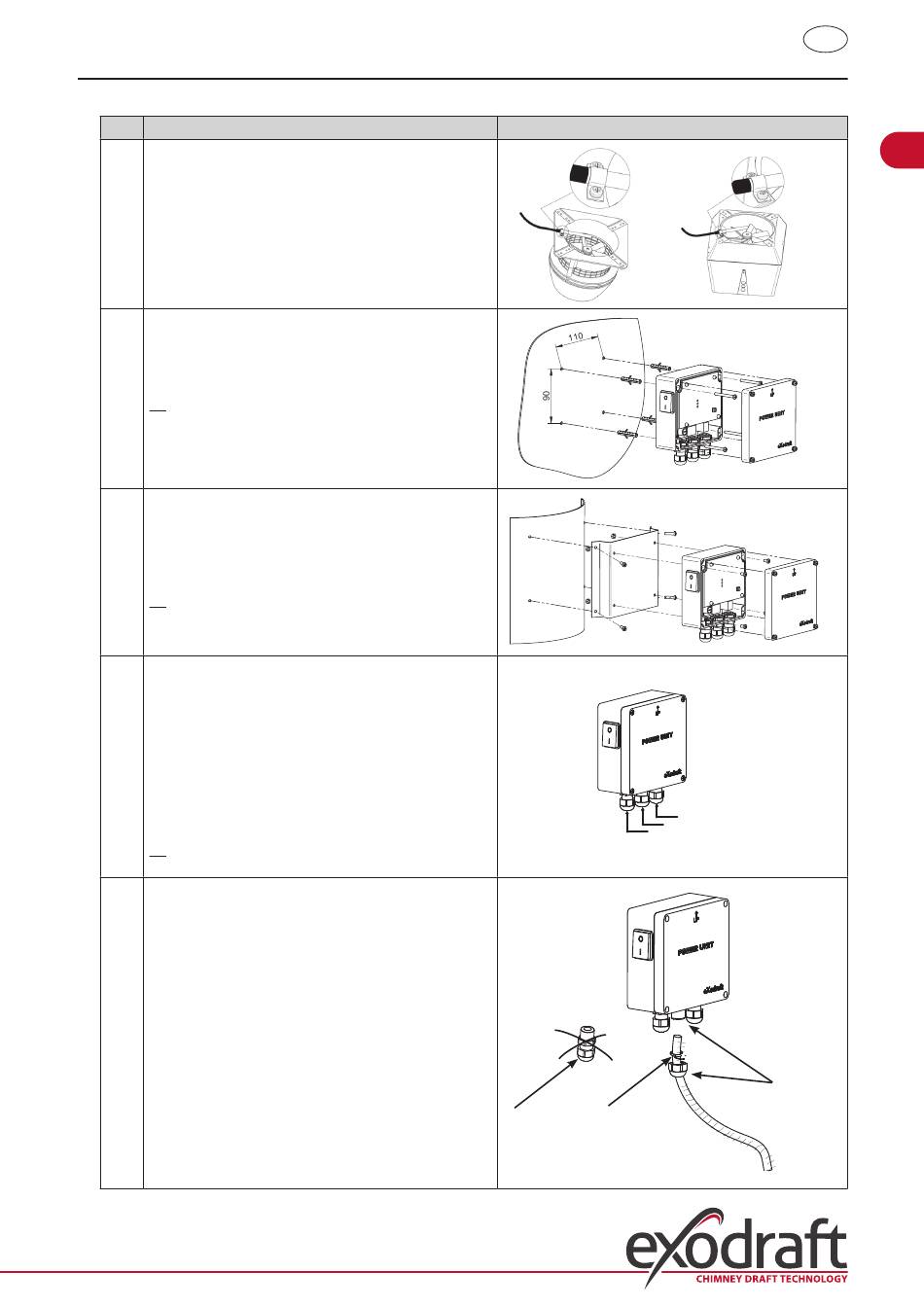

4.4.1 Installing the sensor and power unit
Step
1 Mount the sensor on the chimney fan using the
supplied bracket. Drill two 4 mm holes and insert the
screws.
For brick chimneys:
2a
Drill holes as shown. (Max. 1 m from the chimney fan)
Remove the lid from the power unit and mount it on the
chimney using rawlplugs and screws.
NB: Position the device where it has the best line of sight
to the control panel.
2b For steel chimneys:
Remove the lid from the power unit and mount the
bracket (optional extra) using screws and nuts. Drill 4 mm
holes in the chimney and mount the device using self-
tapping screws. (Max. 1 m from the chimney fan)
NB: Position the device where it has the best line of sight
to the control panel.
3 Connect the wiring as shown on the wiring diagram (see
next page).
A = Supply power
(Cable with plug is connected)
B = Connection to chimney fan
C = Connection to temperature sensor
Cut back sheathing by approx. 8 cm.
NB: Power must not be connected to the device when
connecting wiring.
4 Attaching armoured hose from chimney fan
D = Remove the screw connector from the armoured
hose. Keep the small plastic clamping ring!
E = Fit the nut from the connector from the power unit.
F = Fit the plastic clamping ring on the armoured hose.
Attach the armoured hose to the power unit.
