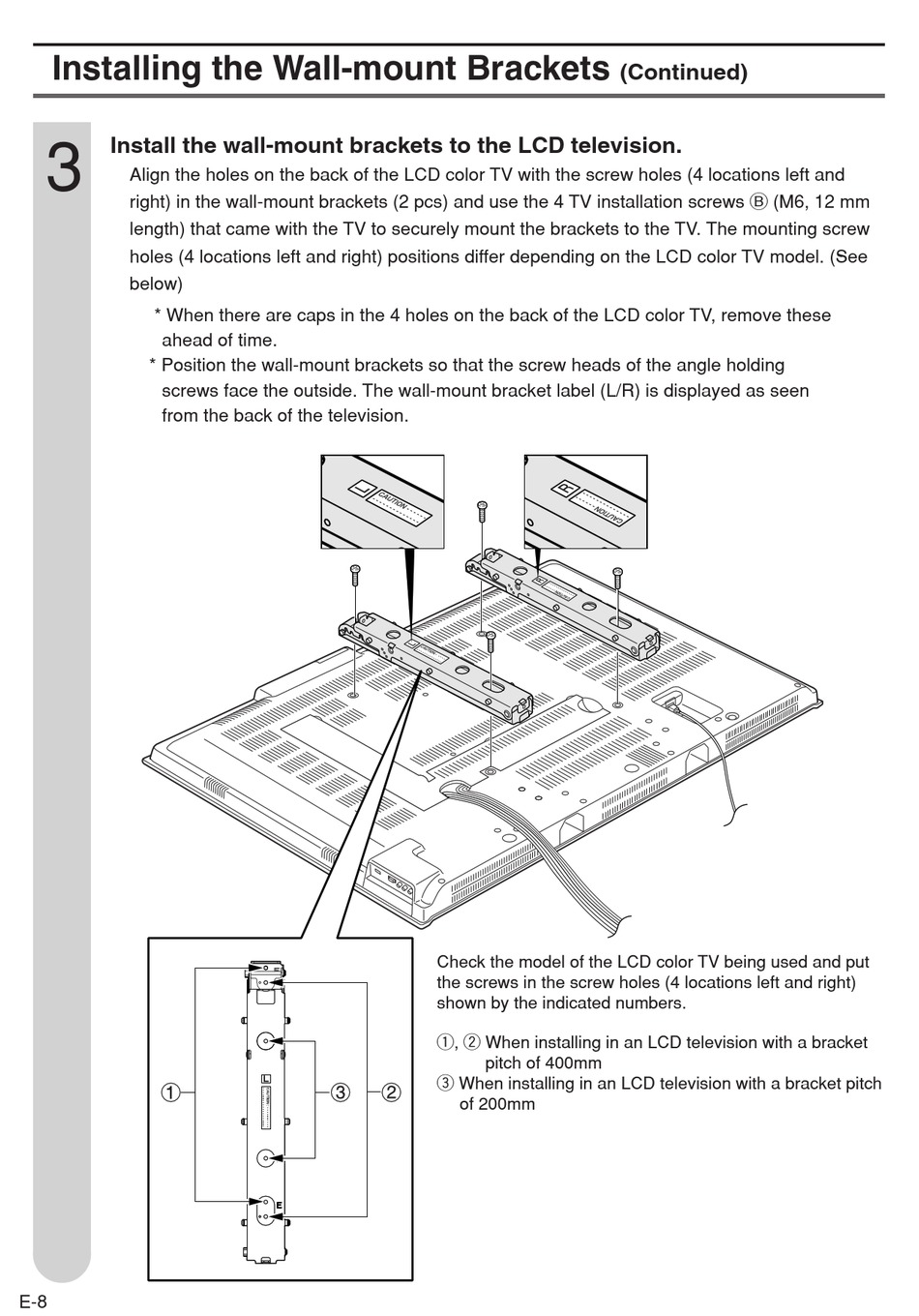

Installing the Wall-mount Brackets
Install the wall-mount brackets to the LCD television.
3
Align the holes on the back of the LCD color TV with the screw holes (4 locations left and
right) in the wall-mount brackets (2 pcs) and use the 4 TV installation screws B (M6, 12 mm
length) that came with the TV to securely mount the brackets to the TV. The mounting screw
holes (4 locations left and right) positions differ depending on the LCD color TV model. (See
below)
* When there are caps in the 4 holes on the back of the LCD color TV, remove these
ahead of time.
* Position the wall-mount brackets so that the screw heads of the angle holding
screws face the outside. The wall-mount bracket label (L/R) is displayed as seen
from the back of the television.
E-8
Check the model of the LCD color TV being used and put
the screws in the screw holes (4 locations left and right)
shown by the indicated numbers.
1, 2 When installing in an LCD television with a bracket
pitch of 400mm
3 When installing in an LCD television with a bracket pitch
of 200mm
(Continued)
