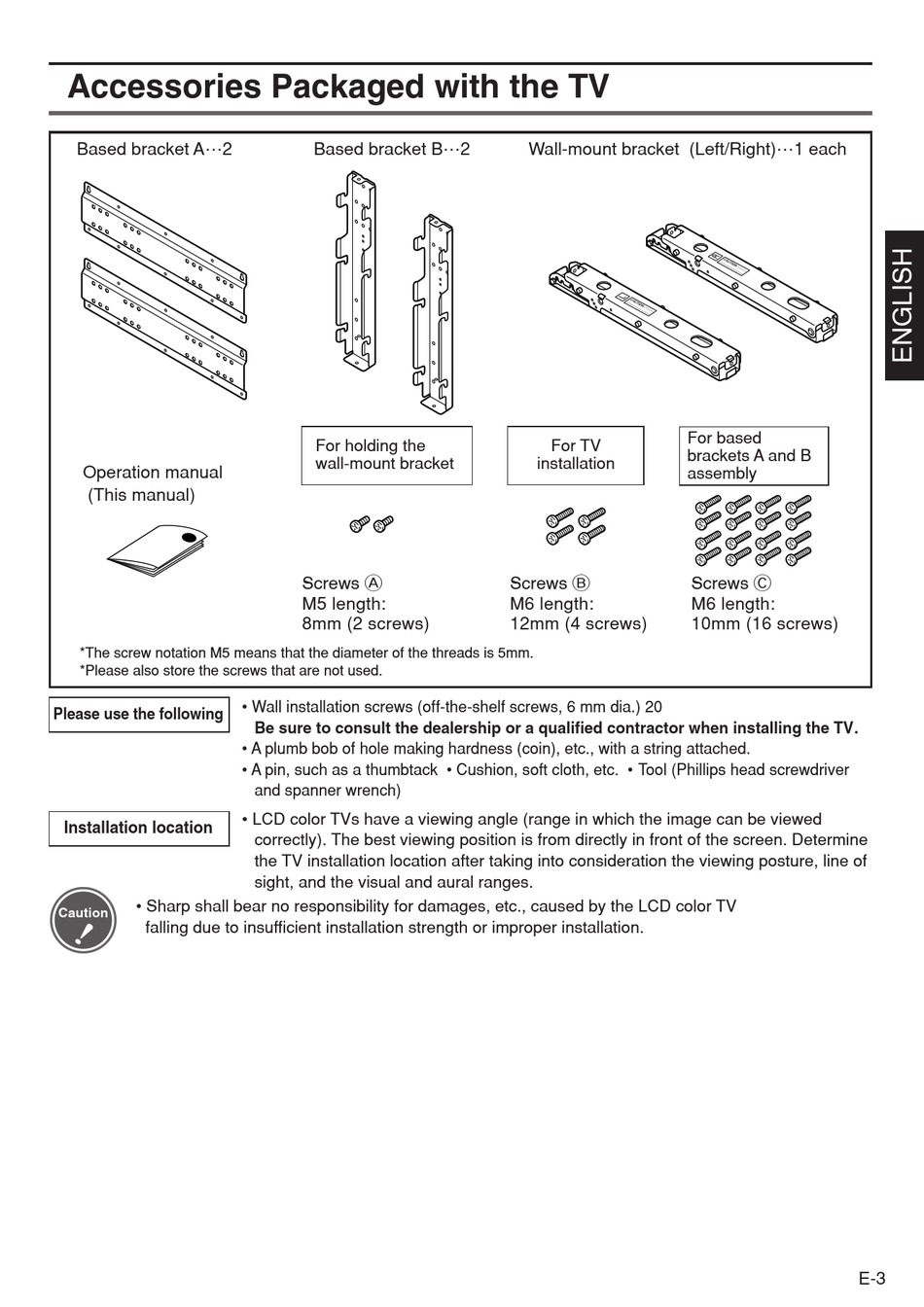

Accessories Packaged with the TV

Based bracket A ... 2
Operation manual
(This manual)
*The screw notation M5 means that the diameter of the threads is 5mm.
*Please also store the screws that are not used.
Please use the following
Installation location
• Sharp shall bear no responsibility for damages, etc., caused by the LCD color TV
Caution
falling due to insufficient installation strength or improper installation.
Based bracket B ... 2
For holding the
wall-mount bracket
Screws A
M5 length:
8mm (2 screws)
• Wall installation screws (off-the-shelf screws, 6 mm dia.) 20
Be sure to consult the dealership or a qualified contractor when installing the TV.
• A plumb bob of hole making hardness (coin), etc., with a string attached.
• A pin, such as a thumbtack • Cushion, soft cloth, etc. • Tool (Phillips head screwdriver
and spanner wrench)
• LCD color TVs have a viewing angle (range in which the image can be viewed
correctly). The best viewing position is from directly in front of the screen. Determine
the TV installation location after taking into consideration the viewing posture, line of
sight, and the visual and aural ranges.
Wall-mount bracket (Left/Right) ... 1 each
For TV
installation
Screws B
M6 length:
12mm (4 screws)
For based
brackets A and B
assembly
Screws C
M6 length:
10mm (16 screws)
E-3
