Item Description
WIRE FEEDER COMPL.
1 FEED PLATE
2 FIXING ARM COMPL.
3 INLET GUIDE
4 AXIS PRESSURE ARM
5 SPRING PRESSURE ARM
6 PRESSURE ARM COMPL.L
7 INTERMEDIATE GUIDE
8 AXIS DRIVE ROLL
9 GEAR WHEEL ROLL
10 GEAR WHEEL MOTOR
11 FIXING CAP
12 METAL COVER
13 PRESSURE ARM COMPL.R
14 MOTOR -38V
15 WOODRUFF KEY
Figure C

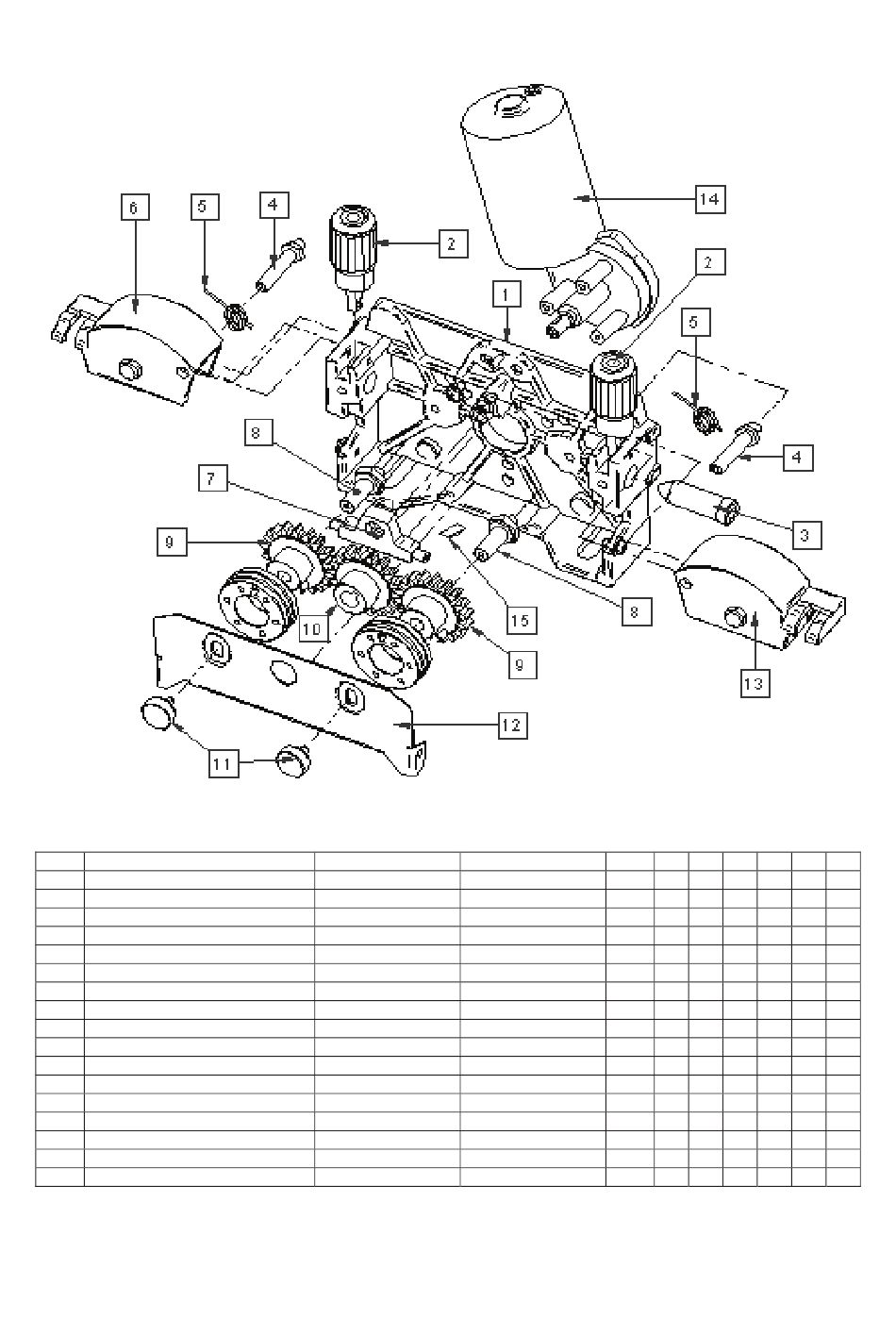

Figure C: Wire Drive Assembly
Part Number OLD Part Number
0744-000-165R
0646-233-002R S51997-1
0646-233-015R
0646-233-025R T51125
0646-233-003R S51997-2
0646-233-013R S51997-12
0646-233-007R S51997-5
0646-233-023R T51126
0646-233-020R S51997-19
0646-231-090R S51889-2
0646-233-028R S51888
0744-000-190R S51997-20
0646-233-027R S51997-23
0646-233-005R S51997-4
1111-722-047R L12073
0646-231-102R
6
QTY 1 2 3 4
1 X
1 X
2 X
1 X
2 X
2 X
1 X
1 X
2 X
2 X
1 X
2 X
1 X
1 X
1 X
1 X
