When the LED C is lit, the display H indicates whether the
machine is in 2T manual or 4T automatic mode, which
may be selected using the keys. When the selection is
complete, the LED and display remain lit for 5 seconds.
By using the 2 selector switches R and S from within any
synergic program, pressing one of the 2 keys toggles the
LEDs I, L, M, and display H alternates displaying the cur-
rent, recommended thickness and voltage. This function
is useful when you need to know in advance at what cur-
rent, voltage or thickness you wish to weld.
Pressing the 2 keys simultaneously for at least 5 seconds
causes us to enter the sub-menu, where we find the fol-
lowing functions that may be selected via the key E:
1 - Spot welding time.
When this function is selected the display H shows the
letter (E). Using one of the 2 keys you may adjust the spot
welding or working time, which may range from 0.3 to 5
seconds. Setting the time to 0 disables the function. The
function is active only while welding.
2 - Pause time of the jog function.
When this function is selected the display H shows the
letter (F). Using one of the 2 keys you may adjust the
pause time between welding segments, which may range
from 0.3 to 5 seconds. Setting the time to 0 disables the
function. The function is active only while welding, and if
any spot welding or working time is active.
3 - Burn-back.
When this function is selected the display H shows the
letter (b). Using one of the 2 keys you may adjust the time
for which the wire continues to be output from the weld-
ing torch after the operator has released the button. This
time ranges from 10 to 400 milliseconds.
4 - Soft start (speed).
When this function is selected the display H shows the
letter (A).
Changes the wire speed from the one set; this speed
remains active for the time governed by the Soft Start
function (time).
The speed may be adjusted using the 2 keys N and O
from 10% to a maximum of 150% of the set welding
speed. This function, combined with the soft start func-
tion (time), serves to improve arc striking.
5 - Soft Start (time).
When this function is selected the display H shows the
letter (d).
Adjusts the time for which the soft start speed remains
active. This function, combined with the soft start func-
tion (speed), serves to improve arc striking.
Using the 2 keys N and O, the soft start time may be
adjusted from 0 to 1 second.
8
6- Speed set on the motor of the PULL 2010.
Adjusting the two keys O and N varies the speed of the
PULL 2010 from –9 to +9 compared to the set value. This
function maximizes wire advancement, putting the wire
feeder motor of the welding machine in step with the
motor of the PULL 2010.
The value shown on the display H is preceded by the let-
ter (H).
7 - Post gas.
When this function is selected the display H shows the
letter (P).
Using the two keys N and O, it is possible to adjust the
gas flow after welding to between 0 and 10 seconds.
This function is especially useful when welding stainless
steel and aluminum.

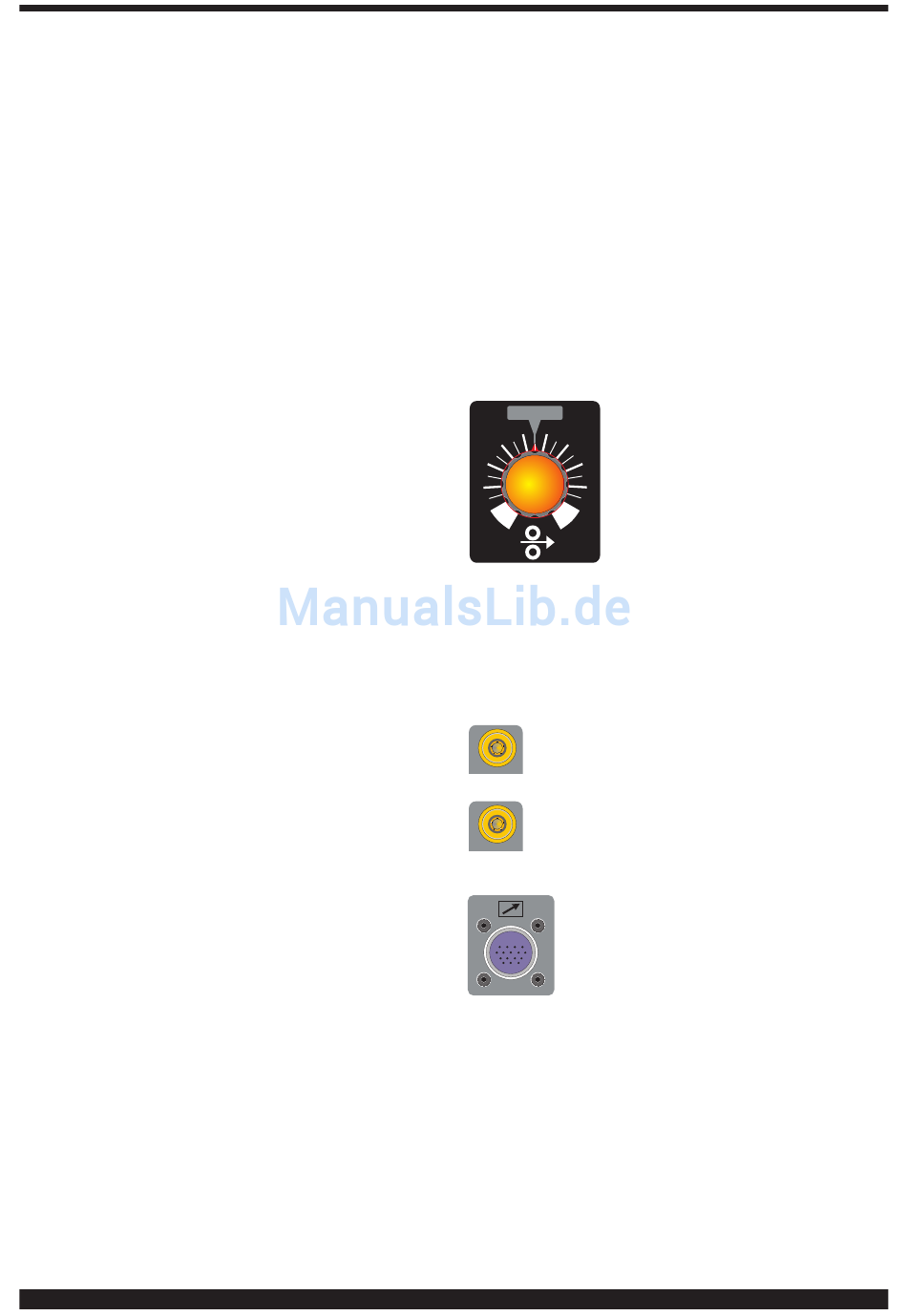

P- Setting knob.
When using any synergic program, the
SYNERGIC
knob indicator must be set to the label
5
6
4
7
SYNERGIC.
gram is selected, the display H shows
3
8
the set current.
2
9
This current corresponds to a given
1
10
speed. If you wish to correct this
speed, simply turn the knob clockwise
to increase or counter-clockwise to
decrease.
Changes in wire speed are always indicated on the dis-
play H by a current.
When the program 00 (manual) is in use, adjusts the wire
speed from 0 to 20 meters per minute.
The display H shows the meters per minute.
T - Quick-fitting socket.
This fitting must be connected to the red water
hose leaving the welding torch.
U - Quick-fitting socket.
This fitting must be connected to the blue water
hose leaving the welding torch.
V- 10-pin connector.
This connector must be connected to the
10-pin patch connector of the PULL 2010
torch.
When a synergic pro-
