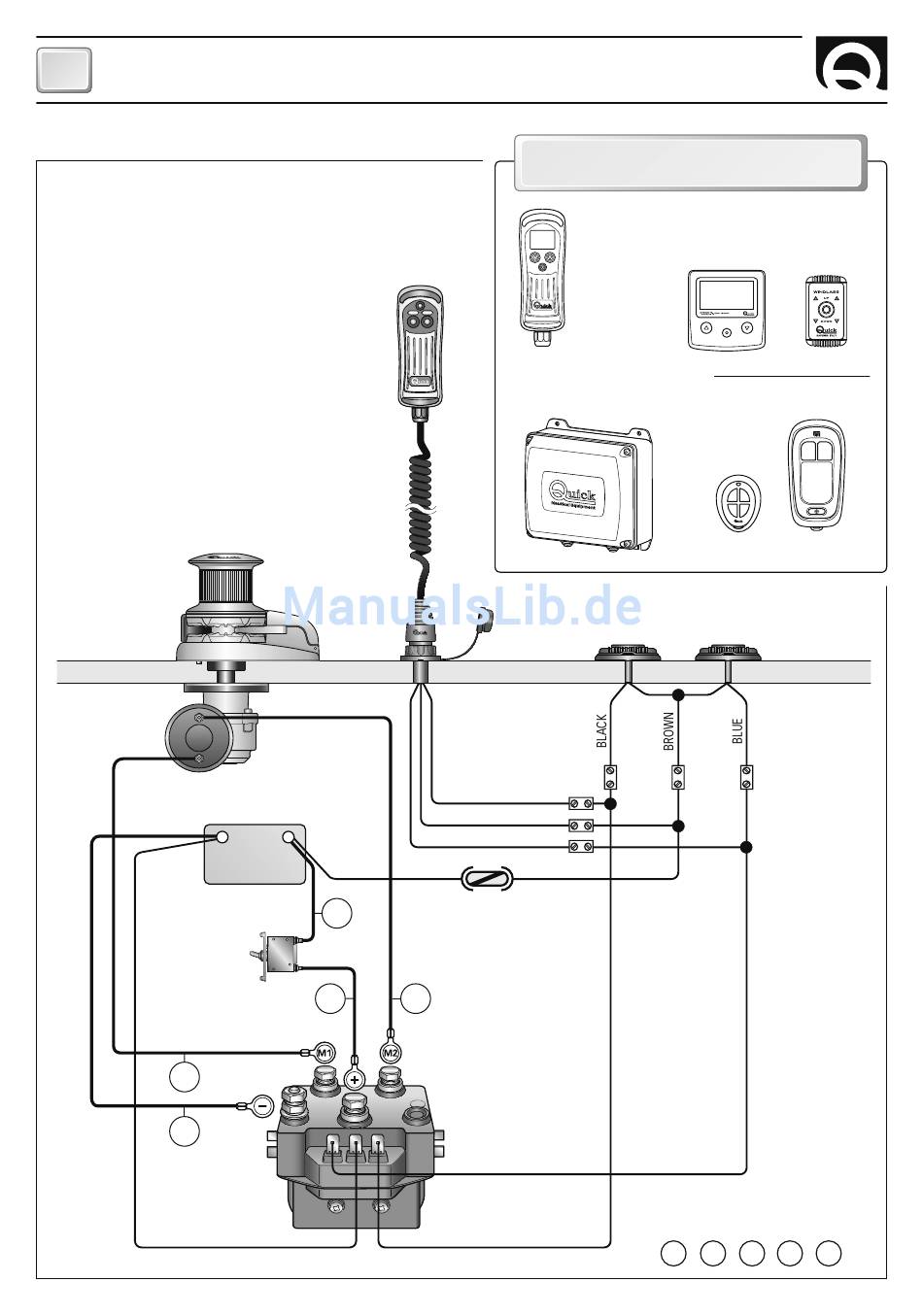

CONNECTION DIAGRAM

GB

BASIC SYSTEM

SEE PAGE 44
SHOWING THE MAIN
CONNECTION DIAGRAM
WINDLASS
MOTOR
HYDRAULIC-
MAGNETIC
CIRCUIT
BREAKER
(see table on
page 12)
L4
L5
14
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
-
+
BATTERY
L1
L2
C
WATERTIGHT HAND HELD
CHAIN COUNTER
REMOTE RADIO CONTROLS
RECEIVER
FOOT SWITCHES MOD. 900U AND 900D
BLACK
BROWN
BLUE
FUSE
4A (12V)
2A (24V)
L3
REVERSING
CONTACTOR UNIT
MOD. T6415-12 (12V)
MOD. T6415-24 (24V)
A2
QUICK ® ACCESSORIES
RADIO POCKET
FOR WINDLASS OPERATION
WATERTIGHT
PANEL
CHAIN COUNTER
TRANSMITTERS
RADIO POCKET
A1
L = L1 + L2 + L3 + L4 + L5
ASTER / ASTERX 300/500W - REV007A
WINDLASSES
CONTROL
BOARD
HANDHELD
