4
Vorbereitung / Preparation
4

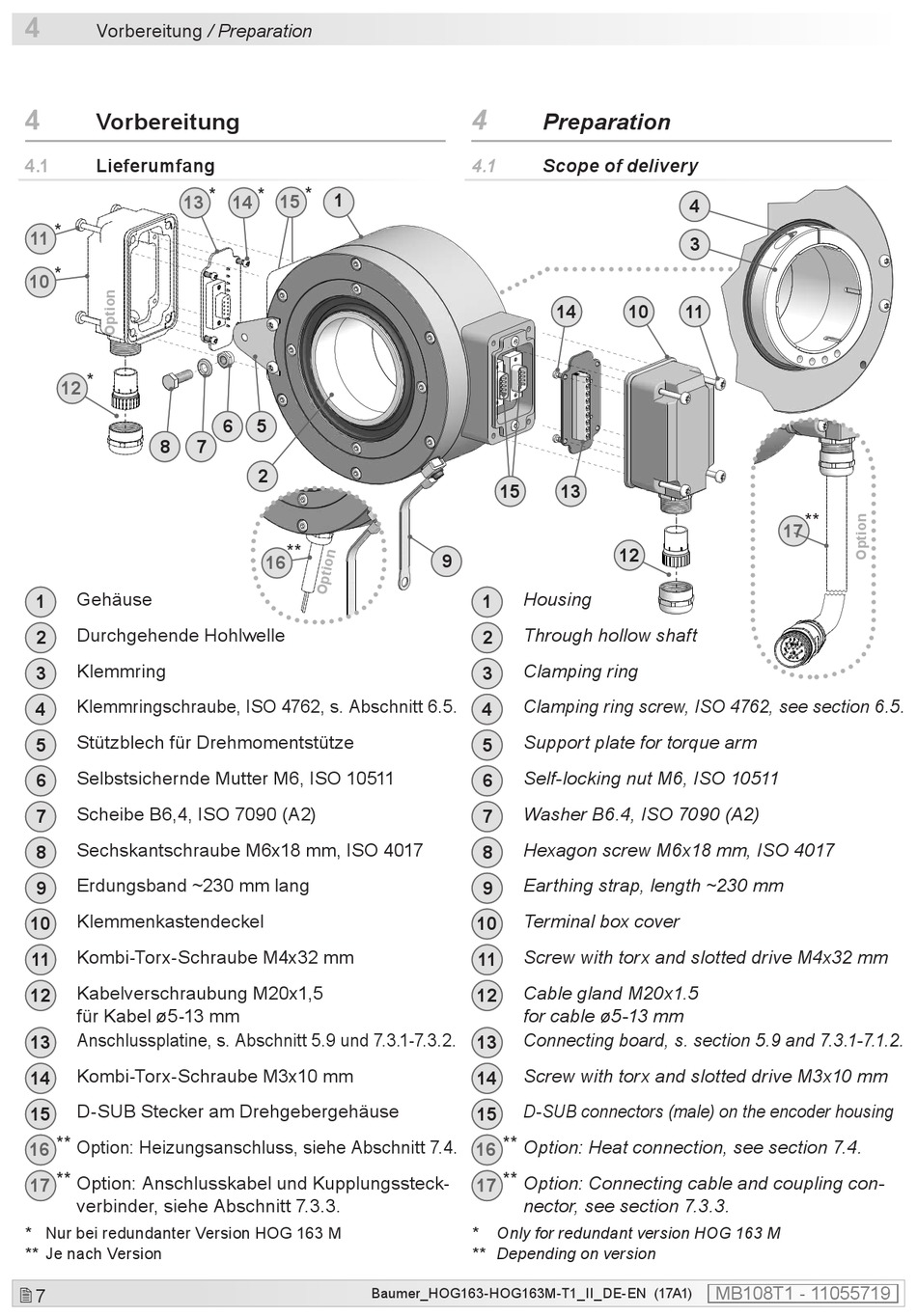

Vorbereitung
4.1
Lieferumfang
13
*
11
*
10
*
12
8
Gehäuse
1
Durchgehende Hohlwelle
2
Klemmring
3
Klemmringschraube, ISO 4762, s. Abschnitt 6.5.
4
Stützblech für Drehmomentstütze
5
Selbstsichernde Mutter M6, ISO 10511
6
Scheibe B6,4, ISO 7090 (A2)
7
Sechskantschraube M6x18 mm, ISO 4017
8
Erdungsband ~230 mm lang
9
Klemmenkastendeckel
10
Kombi-Torx-Schraube M4x32 mm
11
Kabelverschraubung M20x1,5
12
für Kabel ø5-13 mm
Anschlussplatine, s. Abschnitt 5.9 und 7.3.1-7.3.2.
13
Kombi-Torx-Schraube M3x10 mm
14
D-SUB Stecker am Drehgebergehäuse
15
** Option: Heizungsanschluss, siehe Abschnitt 7.4.
16
** Option: Anschlusskabel und Kupplungssteck-
17
verbinder, siehe Abschnitt 7.3.3.
* Nur bei redundanter Version HOG 163 M
** Je nach Version
7
*
*
*
1
15
14
6
5
7
2
**
16
4
Preparation
4.1
Scope of delivery
15
9
Housing
1
Through hollow shaft
2
Clamping ring
3
Clamping ring screw, ISO 4762, see section 6.5.
4
Support plate for torque arm
5
Self-locking nut M6, ISO 10511
6
Washer B6.4, ISO 7090 (A2)
7
Hexagon screw M6x18 mm, ISO 4017
8
Earthing strap, length ~230 mm
9
Terminal box cover
10
Screw with torx and slotted drive M4x32 mm
11
Cable gland M20x1.5
12
for cable ø5-13 mm
Connecting board, s. section 5.9 and 7.3.1-7.1.2.
13
Screw with torx and slotted drive M3x10 mm
14
D-SUB connectors (male) on the encoder housing
15
** Option: Heat connection, see section 7.4.
16
** Option: Connecting cable and coupling con-
17
nector, see section 7.3.3.
*
Only for redundant version HOG 163 M
** Depending on version
Baumer_HOG163-HOG163M-T1_II_DE-EN (17A1)
4
3
14
10
11
13
12
MB108T1 - 11055719
**
