Device elements

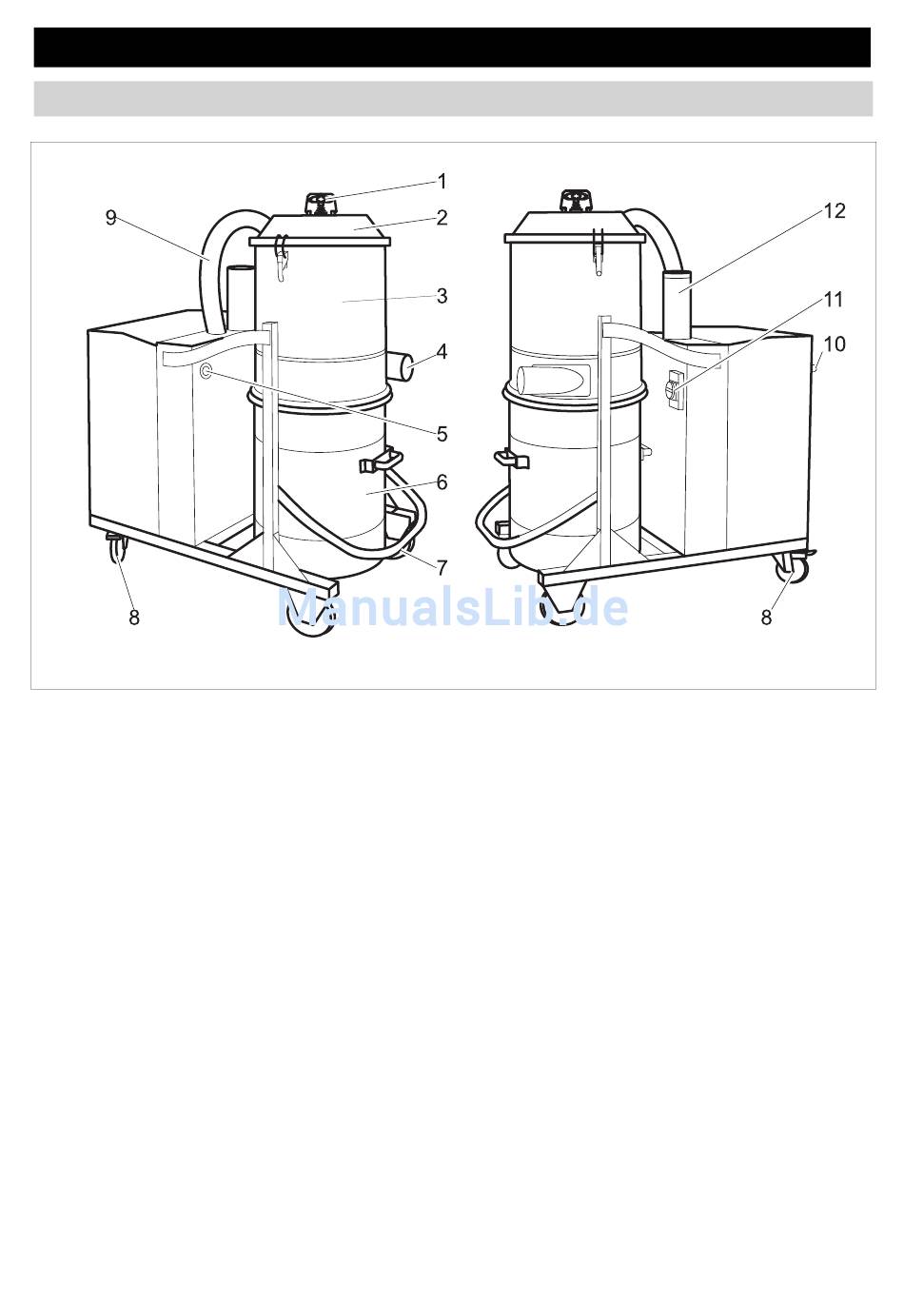

Operator control elements IV 100/40, IV 100/55
1 Handle for filter cleaning
2 Lid of filter chamber
3 Filter chamber
4 Connection neck for accessories
5 Manometer
6 Container for vaccuming material
7 Lever for unlocking the vacuuming ma-
terial container
8 Guiding rolls with fixed position brake
9 Hose to the suction turbine
10 Sliding handle
11 ON/OFF switch
12 Silencer
