Advanced Contact Technology

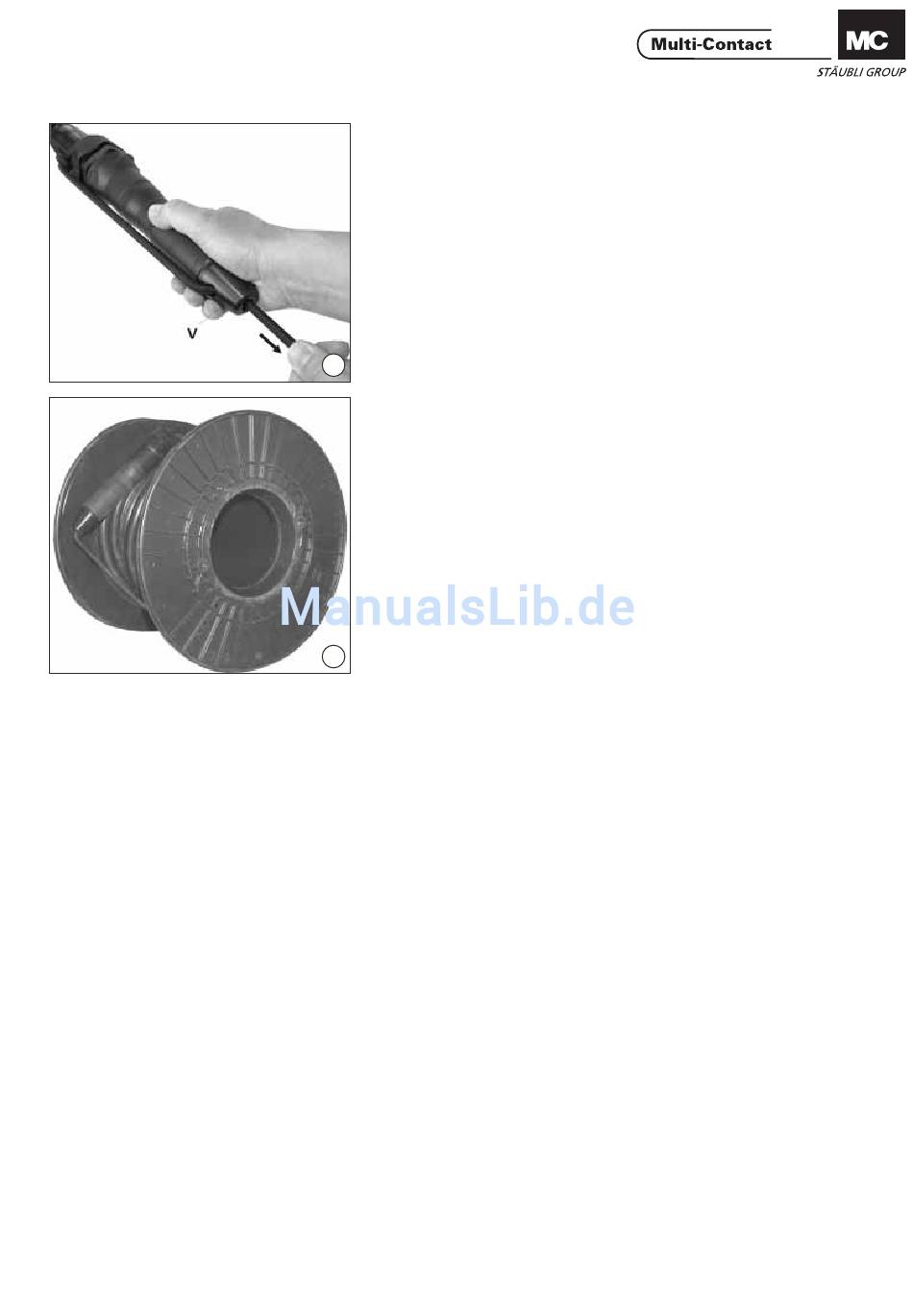

(ill. 15)
Vor dem Einhängen am Befestigungs-
punkt muss das Gummiband 10-15cm
darüberhinaus gezogen werden,
dabei immer die Verschlusskappe (V)
festhalten.
15
16
www.multi-contact.com
(ill. 15)
Before hanging the connector into
the locating point, hold the cap of
the Fixband (V) tight and extend the
elastic band a further 10-15cm.
7 / 8
