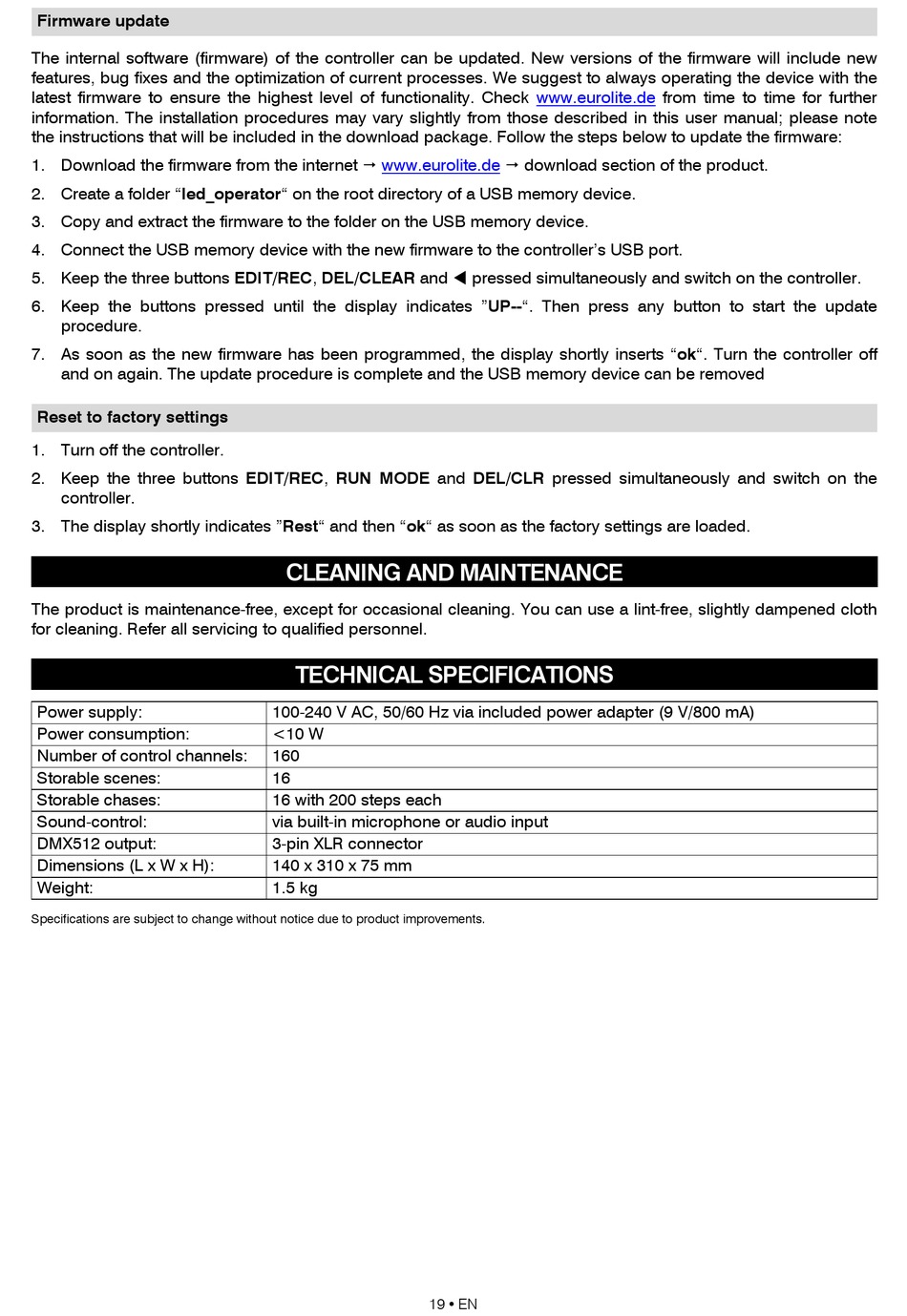

Firmware update
The internal software (firmware) of the controller can be updated. New versions of the firmware will include new
features, bug fixes and the optimization of current processes. We suggest to always operating the device with the
latest firmware to ensure the highest level of functionality. Check
information. The installation procedures may vary slightly from those described in this user manual; please note
the instructions that will be included in the download package. Follow the steps below to update the firmware:
1. Download the firmware from the internet
2. Create a folder "led_operator" on the root directory of a USB memory device.
3. Copy and extract the firmware to the folder on the USB memory device.
4. Connect the USB memory device with the new firmware to the controller's USB port.
5. Keep the three buttons EDIT/REC, DEL/CLEAR and ⊳ pressed simultaneously and switch on the controller.
6. Keep the buttons pressed until the display indicates "UP--". Then press any button to start the update
procedure.
7. As soon as the new firmware has been programmed, the display shortly inserts "ok". Turn the controller off
and on again. The update procedure is complete and the USB memory device can be removed
Reset to factory settings
1. Turn off the controller.
2. Keep the three buttons EDIT/REC, RUN MODE and DEL/CLR pressed simultaneously and switch on the
controller.
3. The display shortly indicates "Rest" and then "ok" as soon as the factory settings are loaded.
The product is maintenance-free, except for occasional cleaning. You can use a lint-free, slightly dampened cloth
for cleaning. Refer all servicing to qualified personnel.
Power supply:
Power consumption:
Number of control channels:
Storable scenes:
Storable chases:
Sound-control:
DMX512 output:
Dimensions (L x W x H):
Weight:
Specifications are subject to change without notice due to product improvements.
www.eurolite.de
CLEANING AND MAINTENANCE
TECHNICAL SPECIFICATIONS
100-240 V AC, 50/60 Hz via included power adapter (9 V/800 mA)
<10 W
160
16
16 with 200 steps each
via built-in microphone or audio input
3-pin XLR connector
140 x 310 x 75 mm
1.5 kg
19 • EN
www.eurolite.de
from time to time for further
download section of the product.
