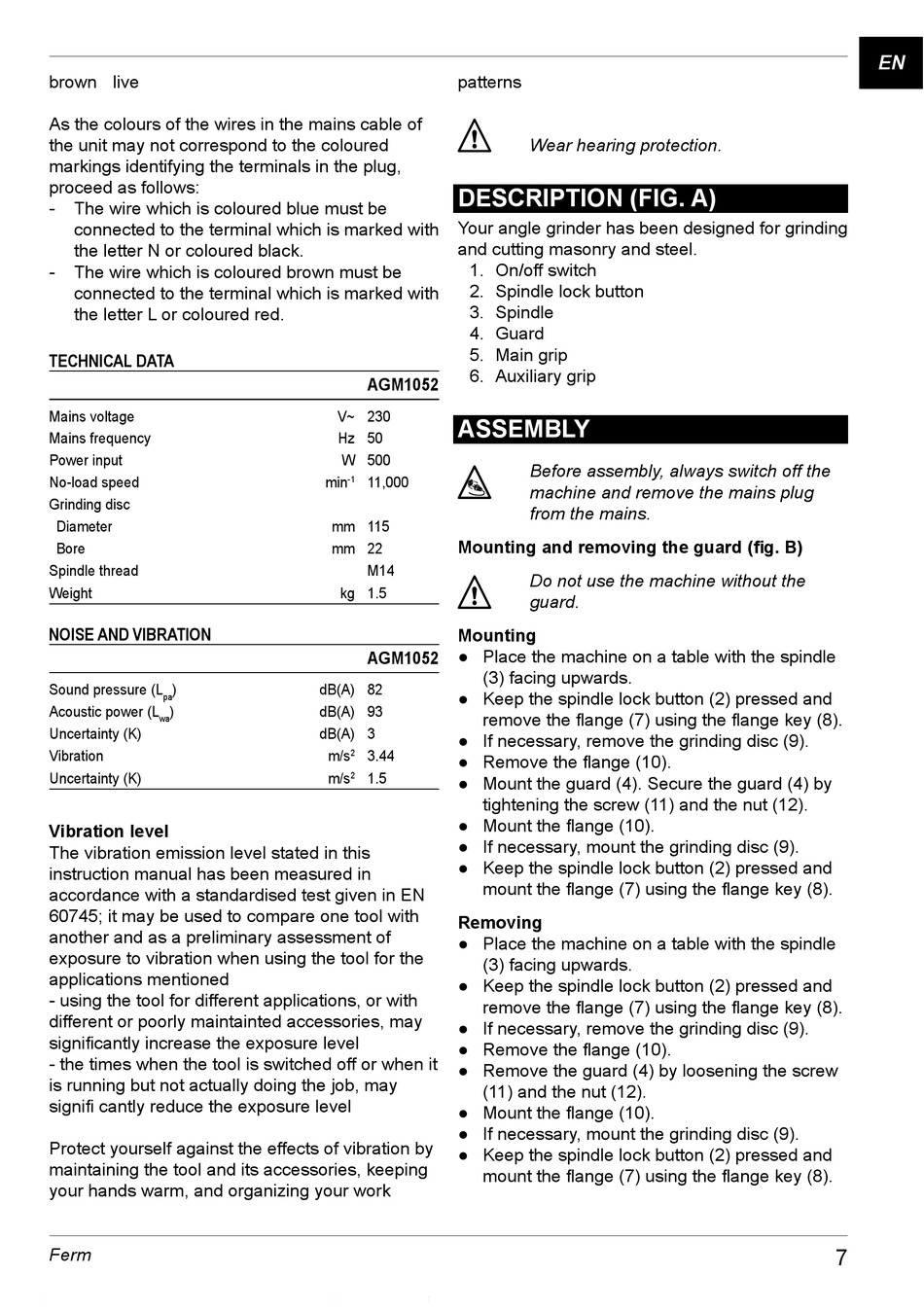

brown live
As the colours of the wires in the mains cable of
the unit may not correspond to the coloured
markings identifying the terminals in the plug,
proceed as follows:
- The wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black.
- The wire which is coloured brown must be
connected to the terminal which is marked with
the letter L or coloured red.
TECHNICAL DATA
Mains voltage
Mains frequency
Power input
No-load speed
Grinding disc
Diameter
Bore
Spindle thread
Weight
NOISE AND VIBRATION
Sound pressure (L )
pa
Acoustic power (L )
wa
Uncertainty (K)
Vibration
Uncertainty (K)
Vibration level
The vibration emission level stated in this
instruction manual has been measured in
accordance with a standardised test given in EN
60745; it may be used to compare one tool with
another and as a preliminary assessment of
exposure to vibration when using the tool for the
applications mentioned
- using the tool for different applications, or with
different or poorly maintainted accessories, may
significantly increase the exposure level
- the times when the tool is switched off or when it
is running but not actually doing the job, may
signifi cantly reduce the exposure level
Protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work
Ferm
patterns
2
DESCRIPtION (fIG. A)
Your angle grinder has been designed for grinding
and cutting masonry and steel.
1. On/off switch
2. Spindle lock button
3. Spindle
4. Guard
5. Main grip
6. Auxiliary grip
AGM1052
V~ 230
ASSEMBLy
Hz 50
4
W 500
min 11,000
-1
mm 115
Mounting and removing the guard (fig. B)
mm 22
2
M14
kg 1.5
Mounting
● Place the machine on a table with the spindle
AGM1052
(3) facing upwards.
dB(A) 82
● Keep the spindle lock button (2) pressed and
dB(A) 93
remove the flange (7) using the flange key (8).
dB(A) 3
● If necessary, remove the grinding disc (9).
m/s 3.44
2
● Remove the flange (10).
m/s 1.5
2
● Mount the guard (4). Secure the guard (4) by
tightening the screw (11) and the nut (12).
● Mount the flange (10).
● If necessary, mount the grinding disc (9).
● Keep the spindle lock button (2) pressed and
mount the flange (7) using the flange key (8).
Removing
● Place the machine on a table with the spindle
(3) facing upwards.
● Keep the spindle lock button (2) pressed and
remove the flange (7) using the flange key (8).
● If necessary, remove the grinding disc (9).
● Remove the flange (10).
● Remove the guard (4) by loosening the screw
(11) and the nut (12).
● Mount the flange (10).
● If necessary, mount the grinding disc (9).
● Keep the spindle lock button (2) pressed and
mount the flange (7) using the flange key (8).
Wear hearing protection.
Before assembly, always switch off the
machine and remove the mains plug
from the mains.
Do not use the machine without the
guard.
