Convergence error
PVM-14L4/14L3
Center:
Peripheral: 0.5mm or less
PVM-20L4
Center:
Peripheral: 0.7mm or less
Raster size stability
H: 1.0%
V: 1.0%
Resolution (at screen center)
PVM-14L4/20L4:
600 TV lines (16:9)
800 TV lines (4:3)
PVM-14L3:
600 TV lines (4:3)
Operating conditions
Temperature 0 °C to 35 °C
Humidity 30% to 85% (no condensation)
Pressure 700 hPa to 1060 hPa

Storage and transport conditions

Temperature –10 °C to 40 °C
Humidity 0% to 90%
Pressure 700 hPa to 1060 hPa

Accessories supplied

AC power cord (1)
AC plug holder (1)
Operating Instructions (1)
Design and specifications are subject to change
without notice.
0.4mm or less
0.5mm or less

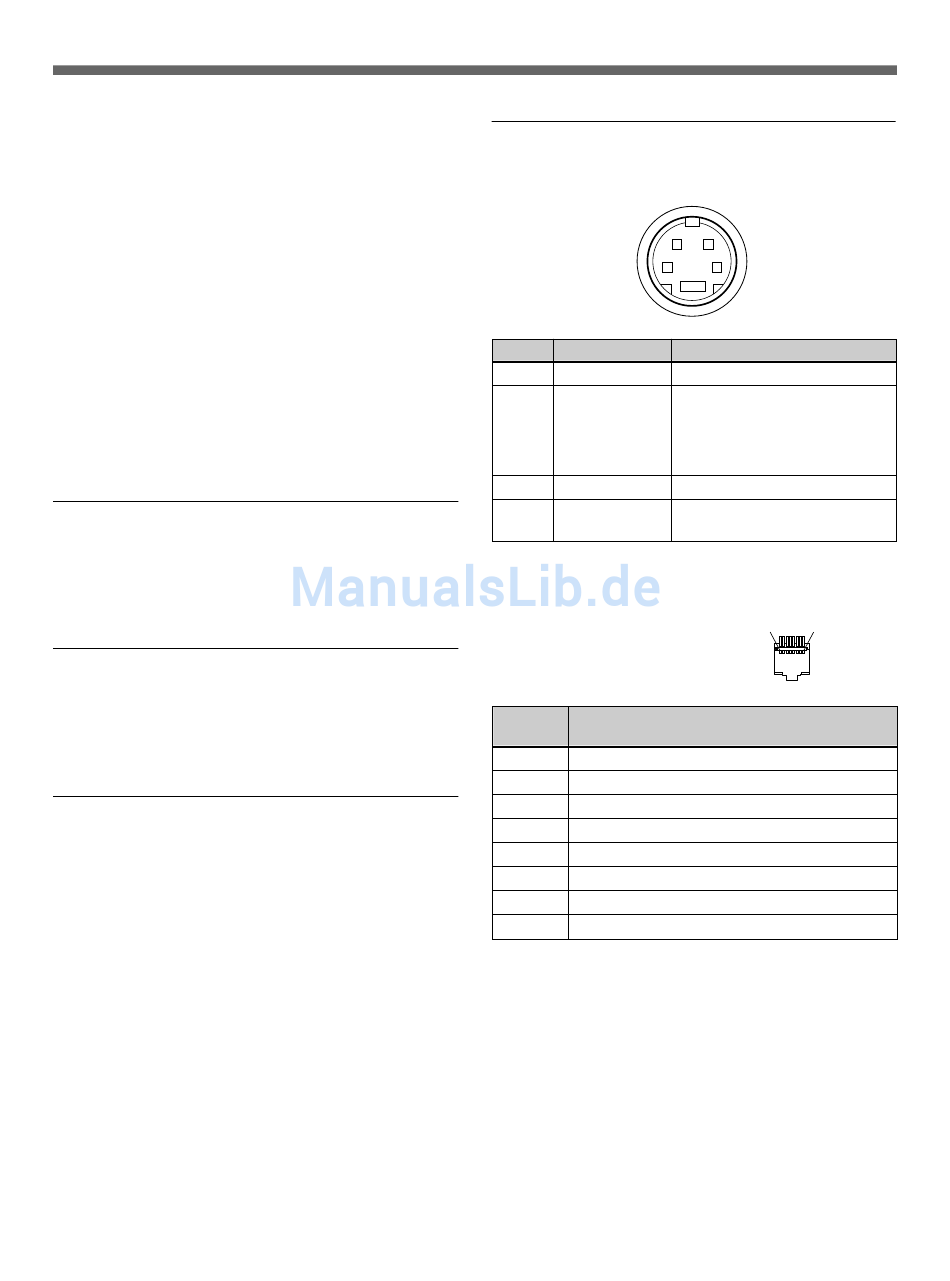

Pin assignment
Y/C IN connector (4-pin mini-DIN)
4
Pin No. Signal
1 Y-input
2 CHROMA-input
Subcarrier-input
3 GND for Y-input
4 GND for
CHROMA-input
PARALLEL REMOTE terminal
Modular connector
(8-pin)
Pin
Functions
number
1 Set input signal LINE A
2 Set input signal LINE B
3 Set red tally lamp on or off
4 Set green tally lamp on or off
5 GND
6 Select EXT sync
7 Select underscan
8 Select aspect ratio 16:9
You can allocate functions to 1 to 4 pins or 1 to 8 pins
in the Remote menu.
Wiring required to use the Remote Control
Connect the function you want to use in remote to the
Ground (Pin 5).
2 1
3
*
Description
1 Vp-p, sync negative, 75 ohms
286 mVp-p (NTSC)/
300 mVp-p (PAL) ,
burst
Delay time between Y and C:
within 0 ±100 nsec., 75 ohms
GND
GND
1 8
25
