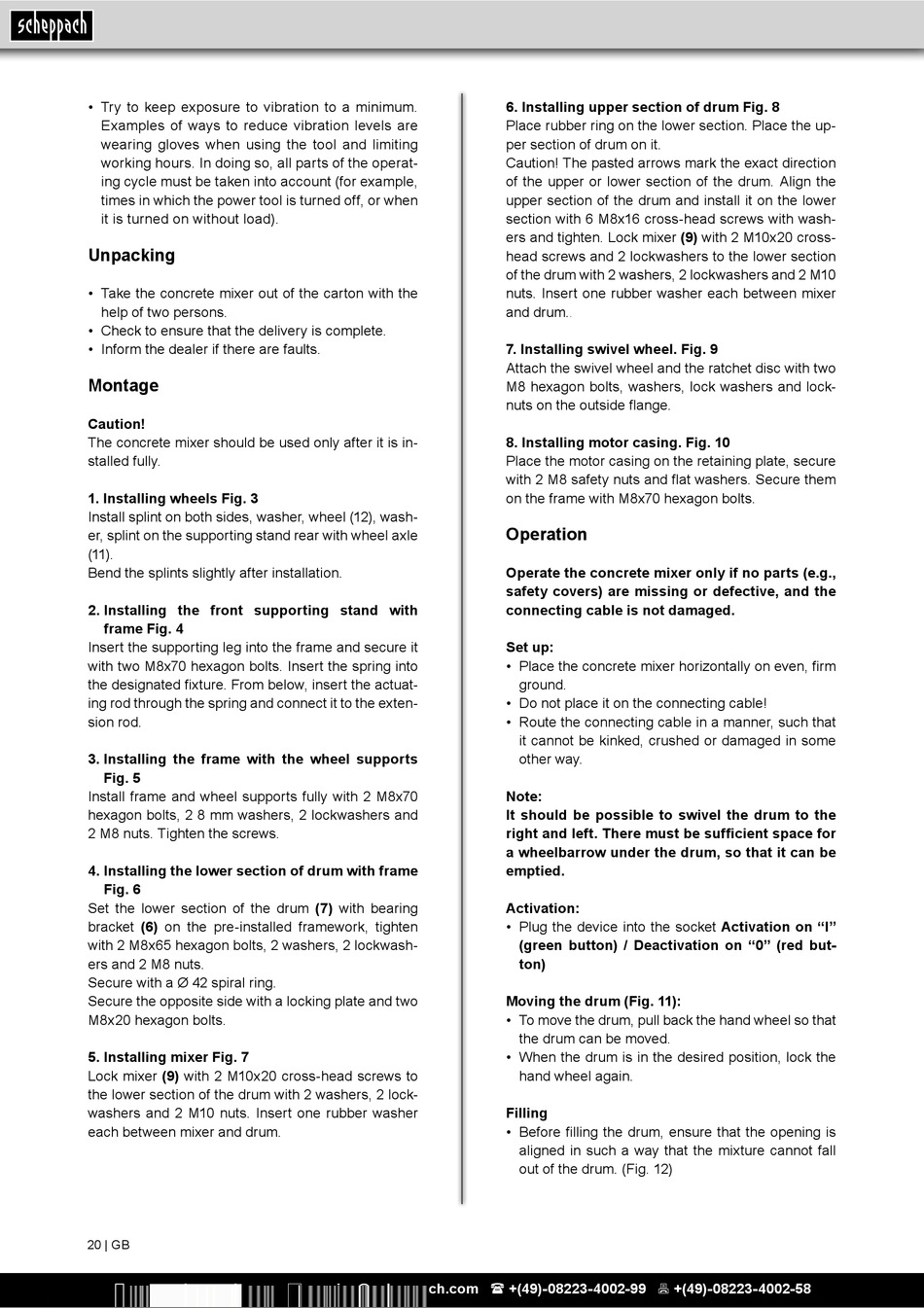

• Try to keep exposure to vibration to a minimum.
Examples of ways to reduce vibration levels are
wearing gloves when using the tool and limiting
working hours. In doing so, all parts of the operat-
ing cycle must be taken into account (for example,
times in which the power tool is turned off, or when
it is turned on without load).
Unpacking
• Take the concrete mixer out of the carton with the
help of two persons.
• Check to ensure that the delivery is complete.
• Inform the dealer if there are faults.
Montage
Caution!
The concrete mixer should be used only after it is in-
stalled fully.
1. Installing wheels Fig. 3
Install splint on both sides, washer, wheel (12), wash-
er, splint on the supporting stand rear with wheel axle
(11).
Bend the splints slightly after installation.
2. Installing the front supporting stand with
frame Fig. 4
Insert the supporting leg into the frame and secure it
with two M8x70 hexagon bolts. Insert the spring into
the designated fixture. From below, insert the actuat-
ing rod through the spring and connect it to the exten-
sion rod.
3. Installing the frame with the wheel supports
Fig. 5
Install frame and wheel supports fully with 2 M8x70
hexagon bolts, 2 8 mm washers, 2 lockwashers and
2 M8 nuts. Tighten the screws.
4. Installing the lower section of drum with frame
Fig. 6
Set the lower section of the drum (7) with bearing
bracket (6) on the pre-installed framework, tighten
with 2 M8x65 hexagon bolts, 2 washers, 2 lockwash-
ers and 2 M8 nuts.
Secure with a Ø 42 spiral ring.
Secure the opposite side with a locking plate and two
M8x20 hexagon bolts.
5. Installing mixer Fig. 7
Lock mixer (9) with 2 M10x20 cross-head screws to
the lower section of the drum with 2 washers, 2 lock-
washers and 2 M10 nuts. Insert one rubber washer
each between mixer and drum.
20 | GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
6. Installing upper section of drum Fig. 8
Place rubber ring on the lower section. Place the up-
per section of drum on it.
Caution! The pasted arrows mark the exact direction
of the upper or lower section of the drum. Align the
upper section of the drum and install it on the lower
section with 6 M8x16 cross-head screws with wash-
ers and tighten. Lock mixer (9) with 2 M10x20 cross-
head screws and 2 lockwashers to the lower section
of the drum with 2 washers, 2 lockwashers and 2 M10
nuts. Insert one rubber washer each between mixer
and drum..
7. Installing swivel wheel. Fig. 9
Attach the swivel wheel and the ratchet disc with two
M8 hexagon bolts, washers, lock washers and lock-
nuts on the outside flange.
8. Installing motor casing. Fig. 10
Place the motor casing on the retaining plate, secure
with 2 M8 safety nuts and flat washers. Secure them
on the frame with M8x70 hexagon bolts.

Operation

Operate the concrete mixer only if no parts (e.g.,
safety covers) are missing or defective, and the
connecting cable is not damaged.
Set up:
• Place the concrete mixer horizontally on even, firm
ground.
• Do not place it on the connecting cable!
• Route the connecting cable in a manner, such that
it cannot be kinked, crushed or damaged in some
other way.
Note:
It should be possible to swivel the drum to the
right and left. There must be sufficient space for
a wheelbarrow under the drum, so that it can be
emptied.
Activation:
• Plug the device into the socket Activation on "I"
(green button) / Deactivation on "0" (red but-
ton)
Moving the drum (Fig. 11):
• To move the drum, pull back the hand wheel so that
the drum can be moved.
• When the drum is in the desired position, lock the
hand wheel again.
Filling
• Before filling the drum, ensure that the opening is
aligned in such a way that the mixture cannot fall
out of the drum. (Fig. 12)
