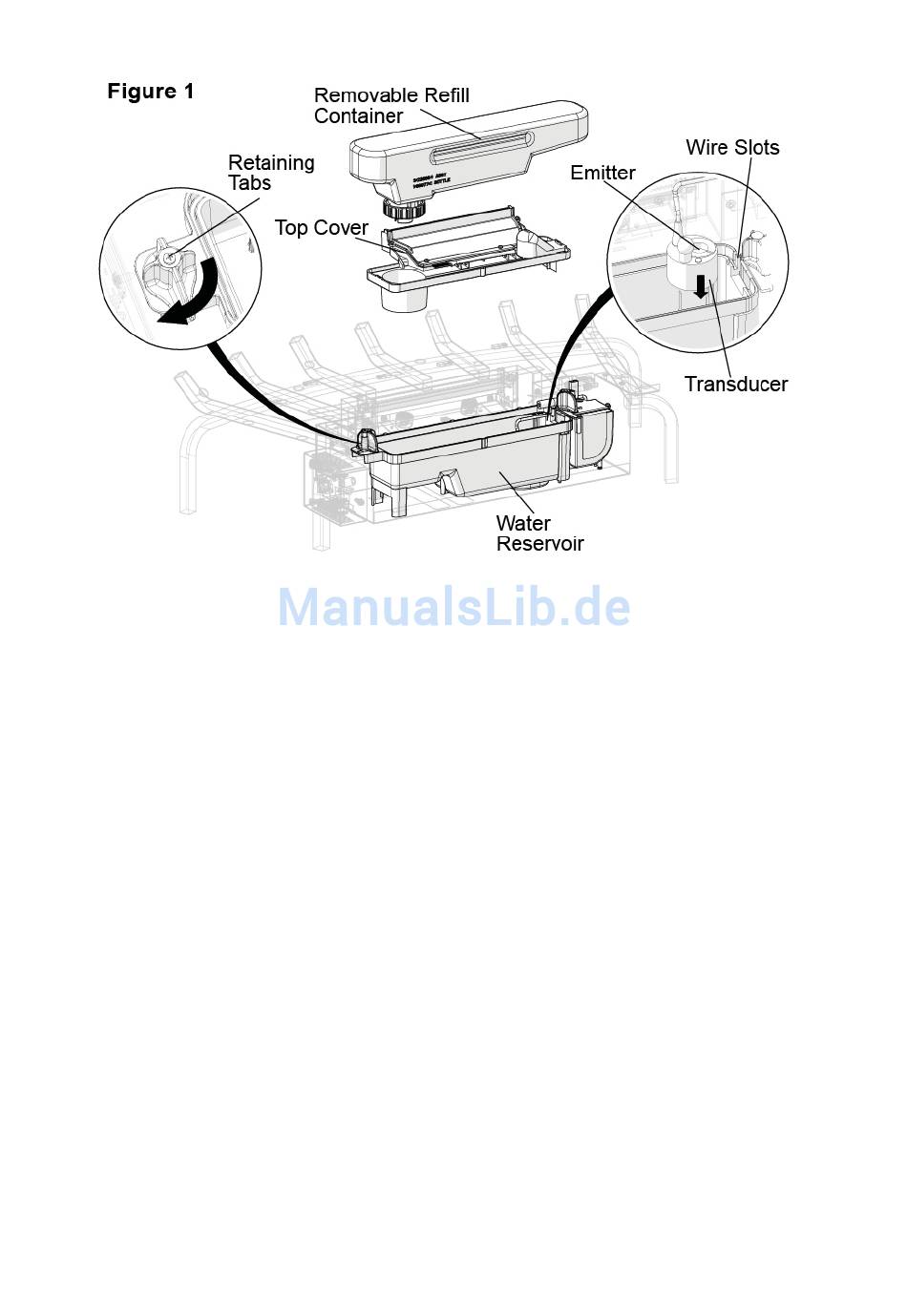

4. Unpack the transducer (contained within the water reservoir) which has been wrapped to protect
it during shipping. See Figure 1.
To access the transducer;
• Remove the top cover by turning the retaining tabs on both ends of the water reservoir.
• Remove any packaging material.
• Install the transducer so that it is sitting level in the circular holding area in the resevoir.
• Orientate the transducer wire so that it does not sit directly above the Emitter and the wire
passes through the slit in the side of the tank.
• Reinstall the top cover and ensure both retaining tabs have been turned so that they are pointing
inwards.
Note: Completely assemble the unit before fi lling the water
46
