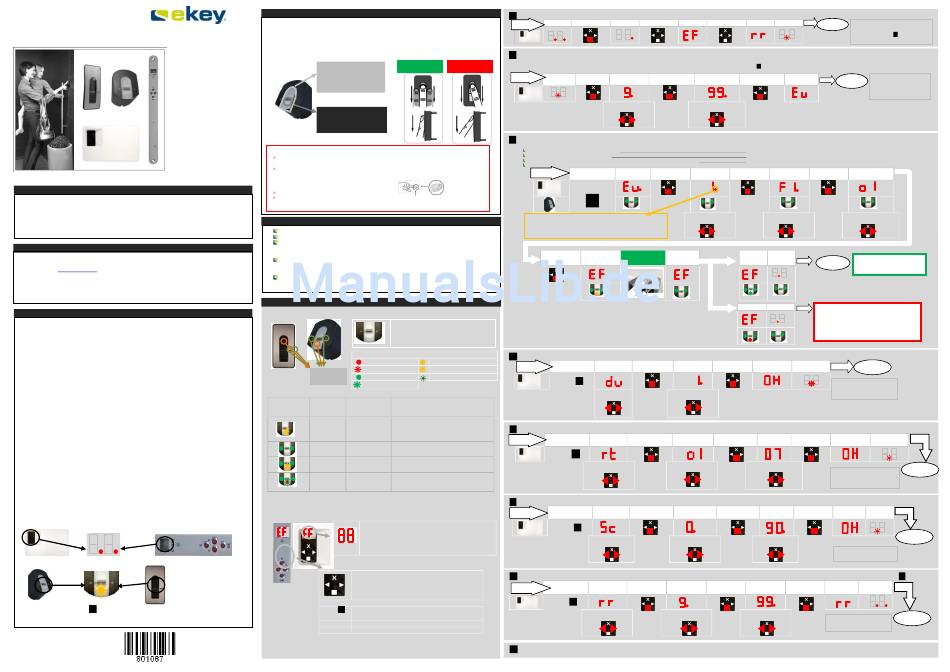

QUICK-START GUIDE
ekey home
Access system with fingerprint scanning
CONTACT
If you have any further questions, please contact our support team on the following telephone
numbers:
Austria and international: +43 732 890 500 1000
Germany: +49 6187 90696 28
Switzerland +423 235 0880
Our whole team will be happy to provide you with more information .
NOTE ON THE DOCUMENT
Both this quick-start guide and the additional information and instructions on the supplied
DVD are not subject to updating. You can find the most up-to-date version of these
documents on www.ekey.net. Subject to optical and technical amendments, as well as
printing and typing errors.
WARNING !
In addition to these instructions also observe the information on the supplied
DVD.
START-UP
Proceed as follows to start-up the device:
1.) Mount the devices in accordance with the supplied assembly
instructions
2.) Connect the wires in accordance with the wiring plan. (Contained in
the assembly instructions)
WARNING ! Do not yet connect the system to the mains!
The electrical connection of the system can only be carried out
by a specialist.
3.) Check the wiring.
4.) Close all the device casings properly, which you had to open for
wiring the system.
5.) Make sure you study the chapter "Operating the fingerprint
scanner" below. The correct operation (i.e.swiping the finger
over the sensor) of the fingerprint scanner is decisive for the
functioning of the whole system. Also see the film in folder
"Tips&Tricks" on the supplied DVD.
6.) Connect the power adaptor to the mains.
The ekey home control panel starts to count down from 44 in one
second intervals and after around 5 seconds two red dots light up.
The status display on the fingerprint scanner flashes yellow:
7.) Now start at point A: INITIALISE DEVICES of "Programming the
System"
801067: Version 4 vom 25.5.2010
OPERATING THE FINGERPRINT SCANNER
The correct operation of the fingerprint scanner is your
guarantee of the successful functioning of this product!
FUNCTION OF THE FINGER SCANNING: Place your finger in the finger recess and
move it down across the sensor applying a small amount of pressure and equal
speed. (=swipe finger)
FINGER RECESS: RIGHT
Please place your
finger here
correspondingly
SENSOR: an image of
your finger is recorded
over this sensor area.
Make sure that:
The finger is positioned straight in the finger recess and that the whole length of
the finger lies in the finger recess.
The finger does not stick out over the finger recess. Only the top part of the
finger should be recorded by the sensor. The starting position (sensor position)
is thereby the crease of the top knuckle
You only exert moderate pressure.
You swipe the finger over the sensor at moderate speed (duration of the swipe
approx. 0.5-1s)
TIPS & TRICKS
If none of your fingerprint scans are accepted in spite of this, please try the following:
Reduce the pressure when you swipe your finger
Save the same fingerprint in several locations if the above points do not help. You have
99 memory spaces available. In extreme circumstances you should use up to 10
memory spaces for one finger.
Wet fingers show different contours. If you often have wet fingers then save your
fingerprint in wet condition. Children's fingerprints are usually recognised, depending on
the body mass of the child, from the age of 5 - please also observe the above points.
If you continue to have no success, then you can find more information and a film piece
on correct finger swiping on the DVD supplied!
PROGRAMING THE SYSTEM
LED-DISPLAYS ON THE FINGERPRINT SCANNER
Symbol: The LED statuses shown on
the fingerprint scanner
during the programming process and
normal mode.
LED- statuses are displayed as follows:
Red light on Orange light on
Red light flashing Orange light flashing
LED
Green light on Red/green
POSITION
Green light flashing
FINGERPRIN Status Function Description
T SCANNER display display
standard
There is no connection to the ekey home
Orange light control panel. Please check the electrical
Off
flashing connections or carry out the start-up
procedure.
Left: green The system is online – all the components
Off
Right: green are communicating correctly.
Orange light Left: green
Fingerprint recognition: check in progress
flashing Right: green
Red/green
Left: green Firmware update in progress (with the
light
Right: green program TOCAUpdate)
flashing
IMPORTANT OPTICAL SIGNALS ON THE FINGERPRINT SCANNER
LED-DISPLAYS AND THE OPERATING ELEMENTS OF THE CONTROL PANEL
The control panel has 4 buttons for operation and programming and a LED display to
support in the menu navigation and the reporting of status information.
Symbol for the seven-segment display on the
CONTROL PANEL
This shows what is being displayed during the
programming process and operation on the control
panel.
Symbol for a key stroke on the CONTROL
PANEL
Shows that a key stroke is necessary during the
programming process. The key to be pressed is
marked red.
Key functions and allocation
Is used to enter the menu and confirm entry
OK =
> < Are used to browse through the menu
ESC = X Is used to cancel the current entry
A: INITIALISE THE DEVICES-
The devices have to be initialised. Only after this can the fingerprints be saved. Proceed as follows:
DISPLAY KEY STROKE DISPLAY
START
B: ENTERING THE SECURITY CODE
The security code is used to prevent unauthorised people having access to your system and thereby changing data. The factory setting for the code is "99": change this code straight after starting-up the
system in order to ensure protection from manipulation. The necessary entries to change the code can be found in section F:.
WRONG
DISPLAY KEY DISPLAY +
START
STROKE SETTING
Enter Digit 1 of the
security code
C: RECORD FINGERPRINTS (Eu)
With Enroll User the following occurs:
Allocation of a user to a memory space:
Selection of the fingerprint number:
Allocation of the fingerprint to a switching relay (with ekey home 2, 3 and PC):
Recording the fingerprint
Enter the DISPLAY
START
security code
SEE
B:
The red dot only lights up if the memory (a
USER or fingerprint had already been saved to
this position) is already occupied!
KEY STROKE DISPLAY Swipe the
USER FINGER
(standard)
D: DELETE USER (du)
Enter the DISPLAY + KEY STROKE
START
SETTING
security code
light flashing
SEE B:
Select MENU
POINT du
E: SWITCHING TIMES OF THE RELAYS (rt)
Enter the DISPLAY + KEY STROKE
START
SETTING
security code
SEE B:
Select the MENU
POINT rt
F: CHANGE THE SECURITY CODE (Sc)
Enter the DISPLAY +
START SETTING
security code
SEE B:
Select MENU
POINT Sc
G: RESET TO FACTORY SETTINGS (rr)
Enter the DISPLAY + KEY STROKE
START SETTING
security code
SEE B:
Select the
MENU POINT rr
H: Information (In) For the retrieval of serial numbers and version numbers see the operating instructions on the enclosed DVD
KEY STROKE DISPLAY KEY STROKE DISPLAY DISPLAY
X X
KEY STROKE DISPLAY + KEY STROKE DISPLAY
SETTING
Enter digit 2 of the
security code
0 - 99
F1 – F10 (F0)
o1 – o3; od (Relais 1 and 2 switch together with one finger)
KEY STROKE DISPLAY + KEY STROKE DISPLAY + KEY STROKE
SETTING SETTING
Select USER- Select FINGER-
NUMBER 0-99 NUMBER F1-F10
DISPLAY DISPLAY DISPLAY
DISPLAY DISPLAY
DISPLAY + KEY STROKE DISPLAY DISPLAY
SETTING
Select the USER
NUMBER
– The switching time of each relay can bis set from 1 sec to 99 sec..If 0 is set then the relay works as toggle relay.
DISPLAY + KEY STROKE DISPLAY + KEY STROKE
SETTING SETTING
Select RELAY Switching time in
seconds(1-99; or 0 )
KEY STROKE DISPLAY + KEY STROKE DISPLAY + KEY STROKE
SETTING SETTING
Change DIGIT 1 of Change Digit 2
the security code of the security
code
Warning! Allstored fingers are deleted! The system have to be re-initialised (see A:)
DISPLAY + KEY STROKE DISPLAY + KEY STROKE
SETTING SETTING
Digit 1 of security Digit 2 of security
code code
FINISHED The devices are now initialised.
You can start to enter the users->
see B:
Now you can make the
FINISHED
entries and data
changes in your
system.
DISPLAY +
SETTING
Selsct a RELAYS
o1-o3
Your user fingerprint
FINISHED
is now saved !
The USER FINGERPRINT WAS NOT
SAVED
(POOR FINGER IMAGE). Try again
and observe the guidelines on
CORRECT FINGER SWIPING!
FINISHED
The selected USER
has been deleted !
DISPLAY DISPLAY
FINISHED
The relay switching time for
the selected relay has been
set !
DISPLAY DISPLAY
FINISHED
The NEW security code
is now active !
DISPLAY DISPLAY
FINISHED
Your device is now back in
its delivered condition !
