17 Input modes: Frequency meter

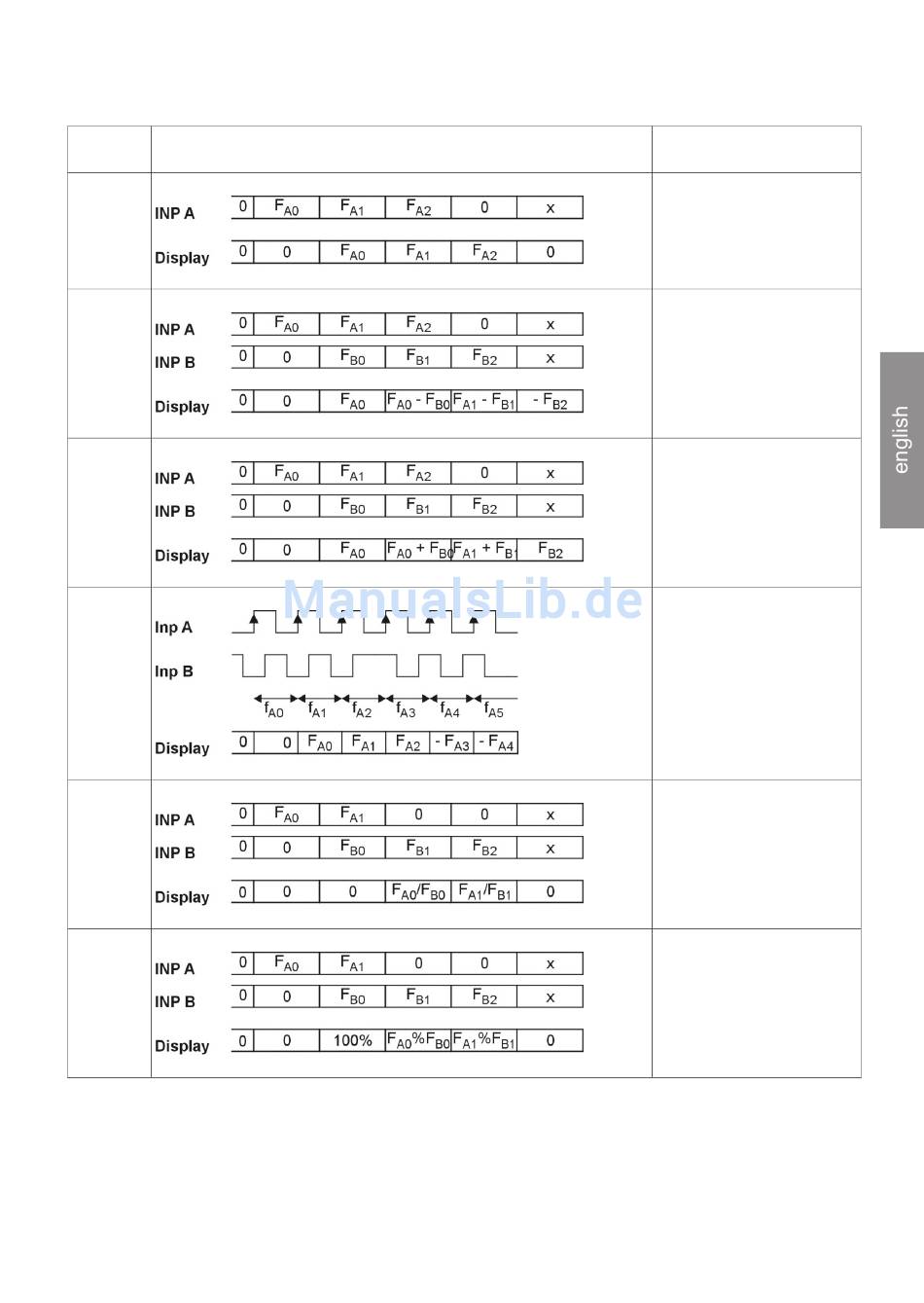

Function Diagram
A
A - B
A + B
QUAD
A / B
A % B
PNP: Count on rising edge
NPN: Count on falling edge
Inp A: Frequency input
Inp B: no function
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A - B
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A + B
A 90° B
Inp A: Frequency input 1
Inp B: Reverse direction
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A / B
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
(A – B)/A x100
Page 23
