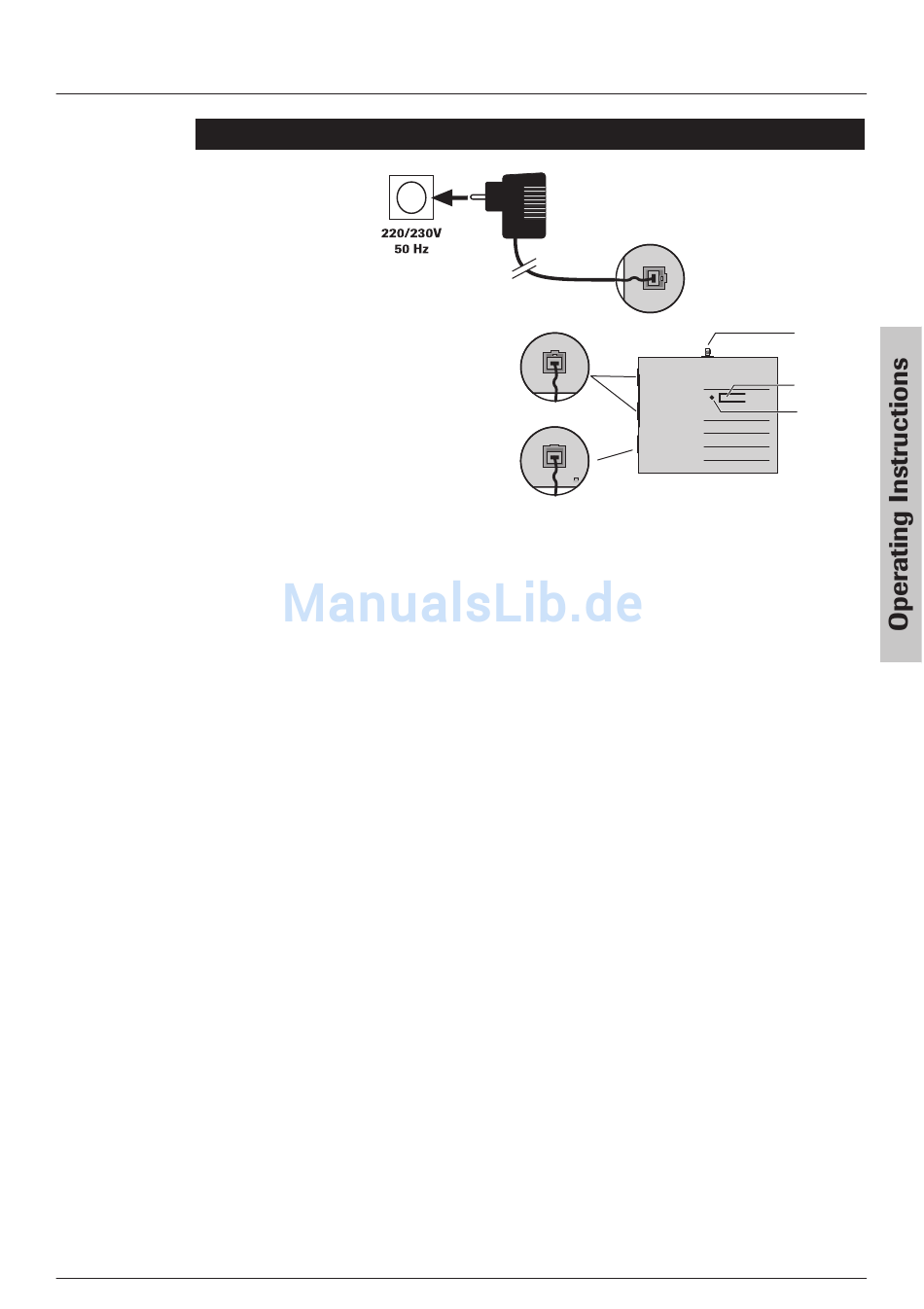

Connections and operating elements

Connections and operating elements
1
2
NOTE
3
4
5
6
7
NOTE
Line 1 and 2
Answering machine, faxmachine
Power supply jack at back side
AC adapter
Only use the supplied AC adapter.
Ensure that the AC adapter is unplugged before opening the
housing.
LED
Register button
Connection for telephone line 1 resp. 2. The RJ-11 jacks are
assigned to the two centre connections (pins 3 and 4).
Analogue port for fax machine etc. (distybase duo plus only)
The RJ-11 jack is assigned to the two centre connections
(pins 3 and 4).
Aerial connection (distybase duo exant only)
SMA aerial socket for connecting an external aerial.
Using a high-quality aerial cable and as short a cable as possible
minimises performance losses and optimises the coverage.
1
2
2 m
5
6
Backside
7
4
3
3
