Exsys EX -6611E Anleitung

HARDWARE INSTALLATION :
Because the designs of notebooks are different, only general installation instructions are
given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your notebook and any other connected peripherals.
2. Locate an available & correct ExpressCard expansion slot ( see compatibility at tech-
nical information above)
3. Align the card with the expansion slot, and then gently but firmly, insert the card. Make
sure the card is seated and oriented correctly.
4. Then connect the cable to the card
5. Never Insert the card into a PCMCIA slot
DRIVER INSTALLATION :
Windows ME
The drivers are already integrated in Windows and the card will be installed automatical-
ly.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entrys: <Texas Instruments OHCI conform IEEE1394 Hostcontroller>.
If you see this or a similar information the card is installed correctly.
Windows 2000 XP and Server2003
The drivers are already integrated in Windows and the card will be installed automatically.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entrys: <Texas Instruments OHCI conform IEEE1394 Hostcontroller>.
If you see this or a similar information the card is installed correctly.
Windows Vista/ 7/ 8 / 8.1/ 10
The drivers are already integrated in Windows and the card will be installed automatically.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entrys: <Texas Instruments OHCI conform IEEE1394 Hostcontroller>.
If you see this or a similar information the card is installed correctly.
MAC:
The drivers are already integrated in MAC OS and the card will be installed automatical-
ly. Only MacOS 8.6 do need a update before the card can be used. You can download
the update on the MacOS homepage (e.g. FireWire Support 2.8.x)
In doubt please refer to the installation manual from your MAC OS version!
LINUX:
Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction here. Please refer to the installation manual for
IEEE1394 ports from your Linux version !
5
Anleitung

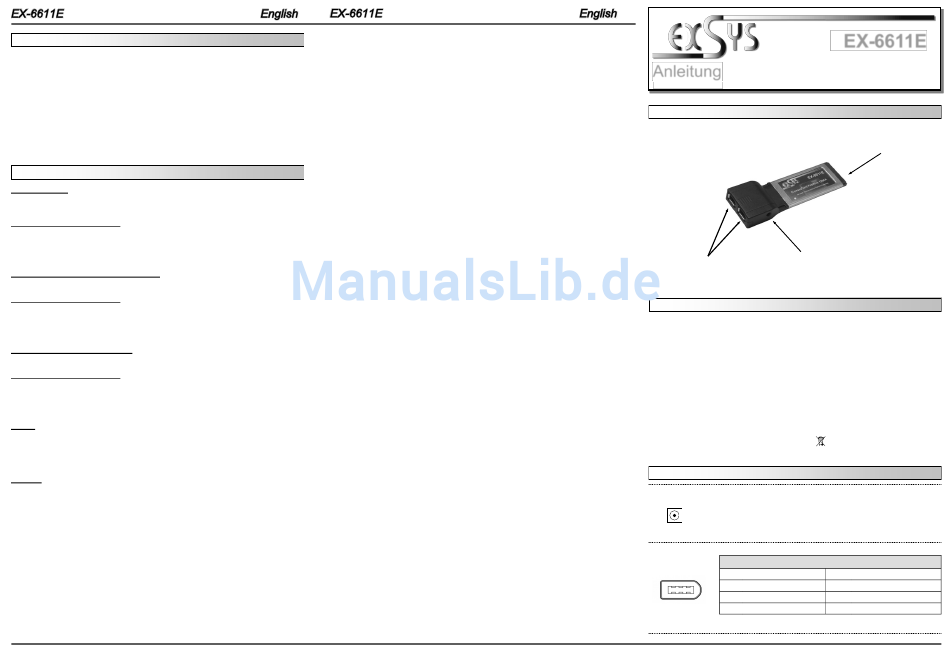

AUFBAU :
2 x FireWire 1394
6Pin Anschluss
für DV-Kamera, Externe
FireWire Laufwerke
BESCHREIBUNG & TECHNISCHE DATEN :
Die EX-6611E ist eine ExpressCard FireWire 1394a Karte mit zwei Ausgänge für den
Anschluss von Peripheriegeräten mit FireWire 1394 Interface (z.B. Digital Kamera,
Digital Aufnahmegerät, Scanner, Soundkarten usw.). In Verbindung mit dem schnellen
Texas Instruments Chip gewährleistet die EX-6611E eine sichere Datenübertragung
und exzellente Performance von bis zu 400Mbit pro Sekunde! Es ist nicht möglich die I/
O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte vom
System (BIOS) und beim Installieren des Betriebssystems automatisch vorgenommen
werden. Sie unterstützt die OHCI Spezifikationen (Open Host Controller Interface).
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
12 Volt Buchse:
6
Vers. 1.0 / 04.08.2015
Anschluss für ein Externes 12V
Netzteil EX-6992 (Optional erhältlich)
ExpressCard Slot 34mm
WinME/ 2000/ XP/ Server 2003/ Vista/ 7/ 8/ 8.1 /10 / MAC / Linux
2 x 9 Pin IEEE1394a Buchse
EX-6611E, Anleitung
CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
ACHTUNG !!!
Nur zur Verwendung mit optionalem Netzteil EX-6992 !!!
Stecker nie bei eingeschaltetem PC ein oder ausstecken!
6 Pin FireWire 1394A Buchse:
1 3 5
Pin Signal Pin
1 Power
2 GND
2 4 6
3 TPB-
1
EX-6611E
ExpressCard Slot
Signal
4 TPB+
5 TPA-
6 TPA+
