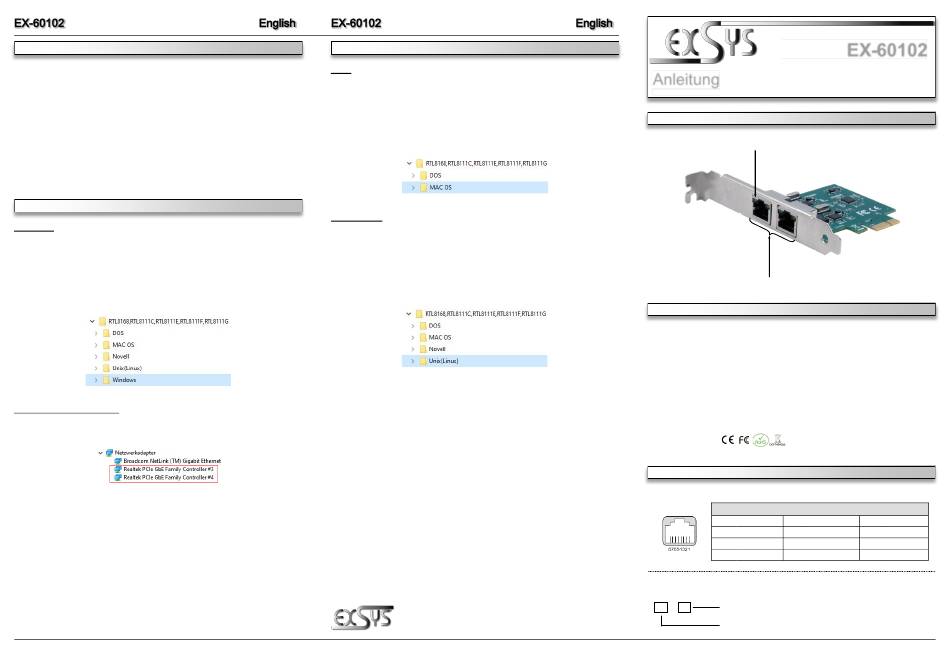

Exsys EX-60102 Anleitung

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-60102. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows
After the hardware installation is completed, the operating system automatically detects the card
and installs it! If the drivers should not be installed automatically, you can download the drivers
from our EXSYS website (www.exsys.de or www.exsys.ch). Enter the article number in the
search field and select the appropriate article. Below under "Available Downloads" select the
driver download. Now select the folder of your operating system and install the drivers (see
figure). Follow the installation instructions and complete the installation. Important! Restart your
PC after the installation.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Networkadapter" the following new
entries:
If you see these or a similar information, the device is installed correctly.
5
DRIVER INSTALLATION
MAC
After the hardware installation is completed, the operating system automatically detects the card
and installs it! If the drivers should not be installed automatically, you can download the drivers
from our EXSYS website (www.exsys.de or www.exsys.ch). Enter the article number in the
search field and select the appropriate article. Below under "Available Downloads" select the
driver download. Now select the folder of your operating system and install the drivers (see
figure). Follow the installation instructions and complete the installation. Important! Restart your
PC after the installation.
Linux / Unix
After the hardware installation is completed, the operating system automatically detects the card
and installs it! If the drivers should not be installed automatically, you can download the drivers
from our EXSYS website (www.exsys.de or www.exsys.ch). Enter the article number in the
search field and select the appropriate article. Below under "Available Downloads" select the
driver download. Now select the folder of your operating system and install the drivers (see
figure). Follow the installation instructions and complete the installation. Important! Restart your
PC after the installation.
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.1 / 11.05.23
AUFBAU
Status LED´s pro Anschluss
2x RJ45 Anschluss
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-60102 ist eine High-Speed Gigabit Ethernet PCI-Express Karte. Sie ist mit zwei exter-
nen RJ45 Anschlüssen ausgestattet. Die EX-60102 unterstützt alle PCI-Express Slots von x1
bis x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung des schnellen Realtek
Chipsatz. Die EX-60102 gewährleistet so eine sichere Datenübertragung und exzellente Perfor-
mance von bis zu 1 Gbit/s auf beiden Anschlüssen!
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
MAC / Linux / Unix / Novell
Anschlüsse: 2x RJ45 Gigabit Ethernet Anschluss
Lieferumfang: EX-60102, Low Profile Bügel, Anleitung
Zertifikate:
ANSCHLÜSSE & LED`S
RJ45 Anschluss:
RJ45 Anschluss
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
Status LED´s:
LINK / Connected
ACT LAN DATA
1
EX-60102
Pin Signal
7 BI_DD+
8 BI_DD-
