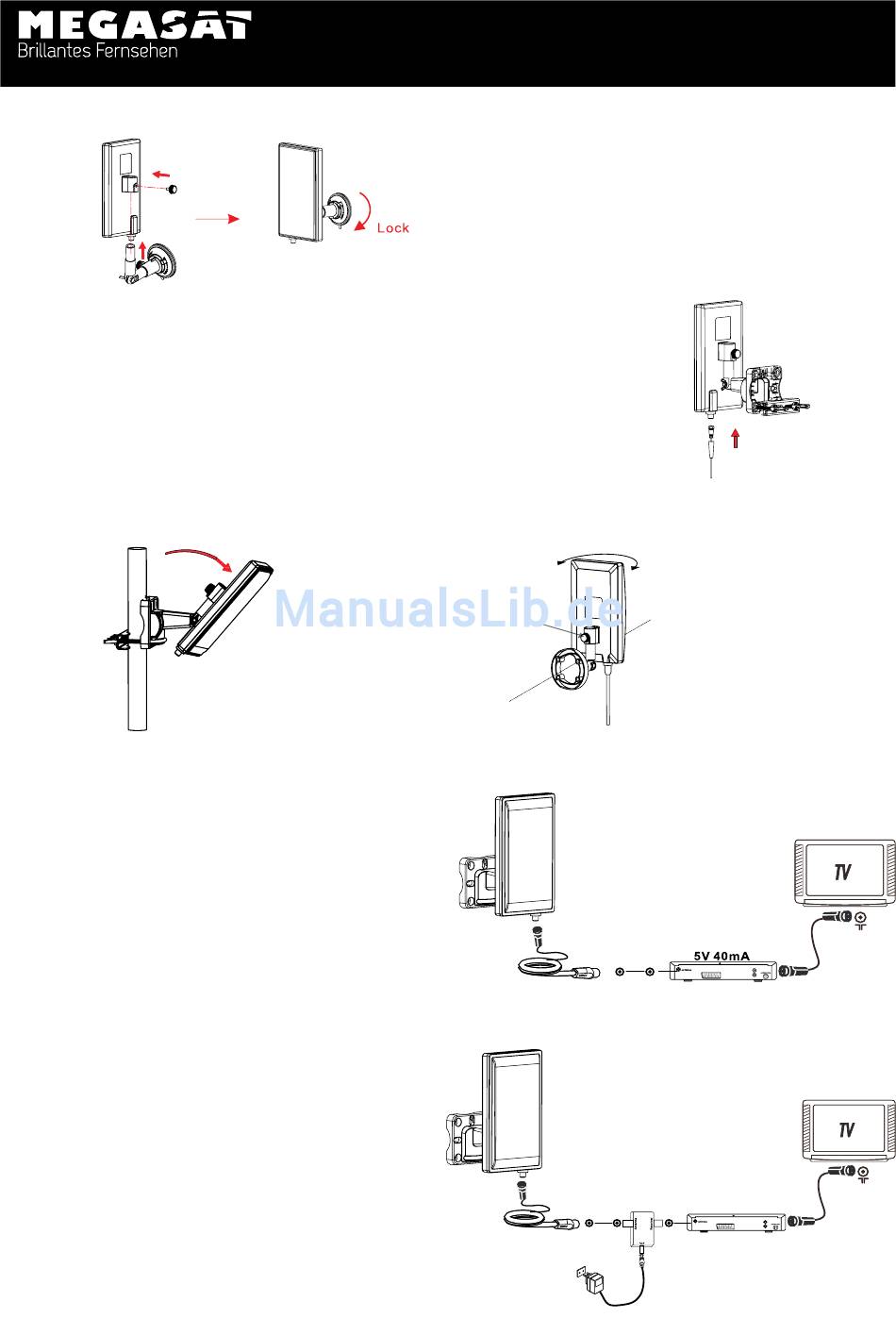

(Fig. 3) use the air-sucker bottom to fix the antenna on the window
Fig. 3
(Fig. 4) connect the „F" male connector of the coax cable to the „F" connector of the antenna,
and wear the water-proof cap to the end of the connected „F" connector.
Note: After the antenna mounting is finished, please move the
antenna to a best reception an then fix it. Please take reference of
following 2 different positioning way to adjust the antenna position.
(Fig. 5) through the fixing screw A to adjust the antenna position in vertical direction.
(Fig. 6) through the fixing screw B to adjust the antenna position in left or right in horizontal direction.
Fig. 5
Installation 1: Powered by DTV set-top-box (Fig. 7)
Make sure that your set-top-box can support coaxial cable 5V DC
powering via the IEC or F-connector to antenna.
Step 1: Connect the coax cable with antenna and DTV set-top-box.
Step 2: Connect the DTV set-top-box to your TV. Please make sure
the coax cable powering function of your STB is ON. (Please check
the operational manual of your STB for coax cable powering function)
Step 3: Adjust the antenna in the best position that can get clear TV
picture. then fix the antenna.
Step 4: Organize the coax cable for neat, tidy and safety.
Installation 2: Powered by AC/DC adapter (Fig. 8)
Step 1: Connect the coax cable with antenna and the power insert
(the side with „ antenna" text mark).
Step 2: Connect the other side of power insert to DTV set-top-box.
Step 3: Connect the DTV set-top-box to your TV.
Step 4: Connect the power adapter DC output jack to the DC input
connector of the power insert, and then plug the AC/DC power adapter
into the AC power socket.
Step 5: Adjust the antenna in the best position that can get clear TV
picture. then fix the antenna.
Step 6: Organize the coax cable for neat, tidy and safety.
DVB-T 40 Outdoor Powerantenne
Fig. 6
Fixing crew B
user manual #2/2
Fig. 4
Fig. 7
Fig. 8
