Introduction:
This is a special designed antenna for digital terrestrial TV broadcasting reception. It is the best solution for home reception and digital portable
TV reception. The antenna is an active antenna that can be used with TV or set-top-box which can be powered by coaxial cable or external power
adapter. Complete accessories are included for wall or pole mounting. With the anti-UV water proof housing, it can be used both indoor and
outdoor.
Technical Data:
• Frequency range: VHF 87.5 - 230 MHz
UHF 470 - 862 MHz
• Receiving range: UHF / VHF / FM
• Max. gain:
28 dB
• Output level:
max. 100 dBµV
• Out Impedance: 75 Ohm
• Noise figure:
< 3 dB
• Power supply:
via separate AC/DC adapter (DC 12V / 50mA)
or via DTV set-top-box (DC 5V / 40mA)
• Connector:
F-connector
Included in package:
Before start your installation, please check the contents.
1. Antenna main unit
2. wall mounting accessories
3. pole mounting accessories
4. Supporter for indoor use
5. Air-sucker bottom
6. AC/DC power adapter
7. DC power insert
8. Coax cable
9. Water-proof kit
Product Features:
• SMD circuit technology design
• Stylish and compact size design
• Shielded for minimum interference
• Built-In high gain and low noise amplifier
Operation Instruction:
Note: For the best reception, please check the following conditions.
1. Keep the antenna away from the sources of interference: Keep the
antenna away from those big power consumption devices, such as air
conditioner, elevator, hair dryer and microwave oven etc.
2. Place the antenna near windows when use the antenna in indoor
environment.
3. Install the antenna as high as possible: In digitalterrestrial reception,
if there are some interceptions between antenna and transmission
tower, it will cause the signal loss temporarily. So if the antenna is
installed as possible, those interceptions will be reduced.
Mounting the antenna:
Note: This antenna can be used outdoor, with the included mounting accesso-
ries, it can be mounted on the wall or the pole.
(Fig. 1) use the pole mounting accessories to fix the antenna on the pole
(Fig. 2) use the wall mounting accessories to fix the antenna on the wall
Fig. 1

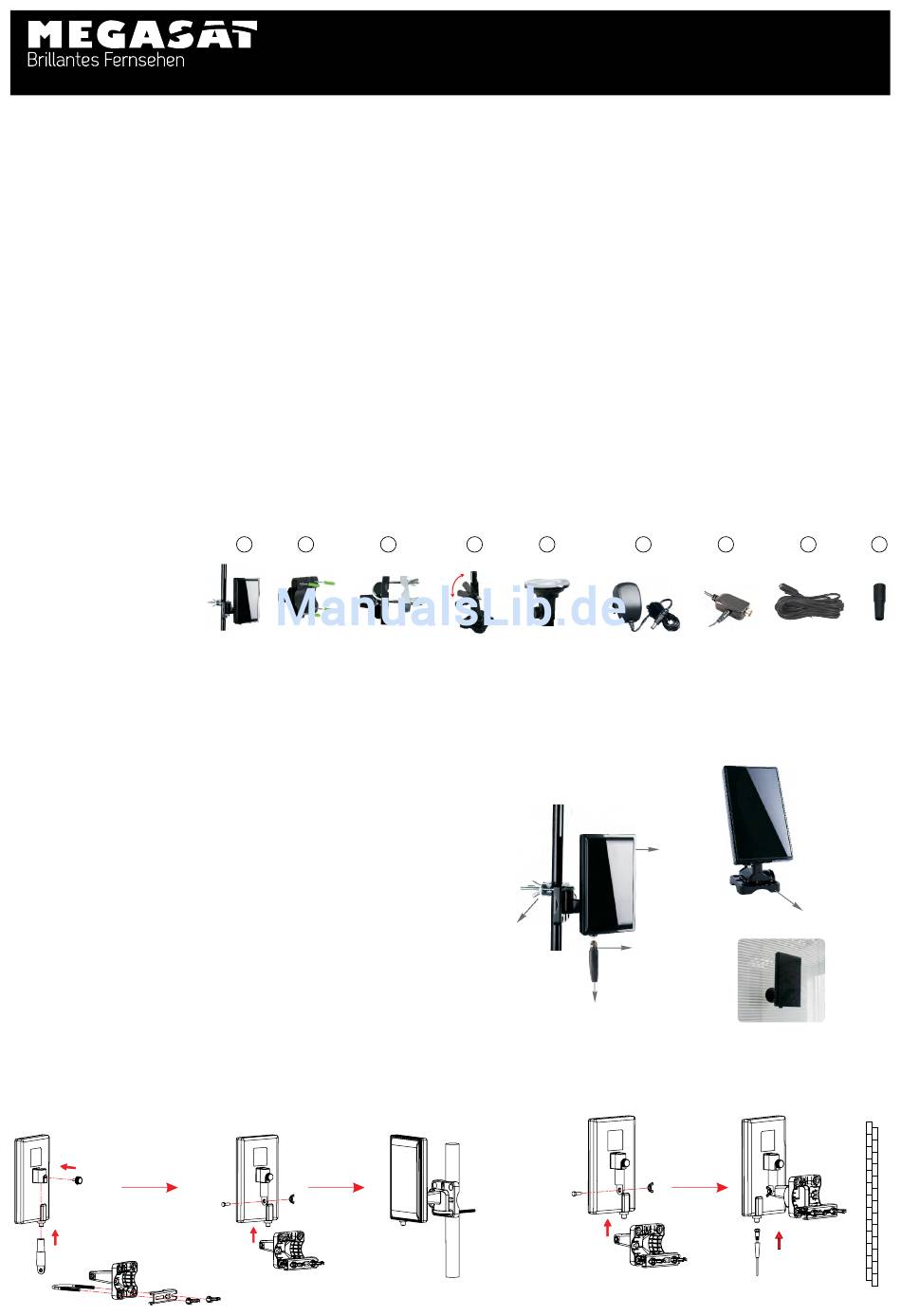

DVB-T 40 Outdoor Powerantenne
1
2
3
4
5
• Portable for mobile use (camping, boating, etc.)
• Anti-UV coating and water-proof design for durability
• Specially compatible with HDTV of various digital terrestrial signal
(DVB-T, ISDB-T, DMB-T/H, ATSC) and DAB/FM radios.
Pole mounting kits
water-proof kit
Fig. 2
user manual #1/2
6
7
Antenna
body
Supporter for indoor use
Coax cable
On the window
8
9
