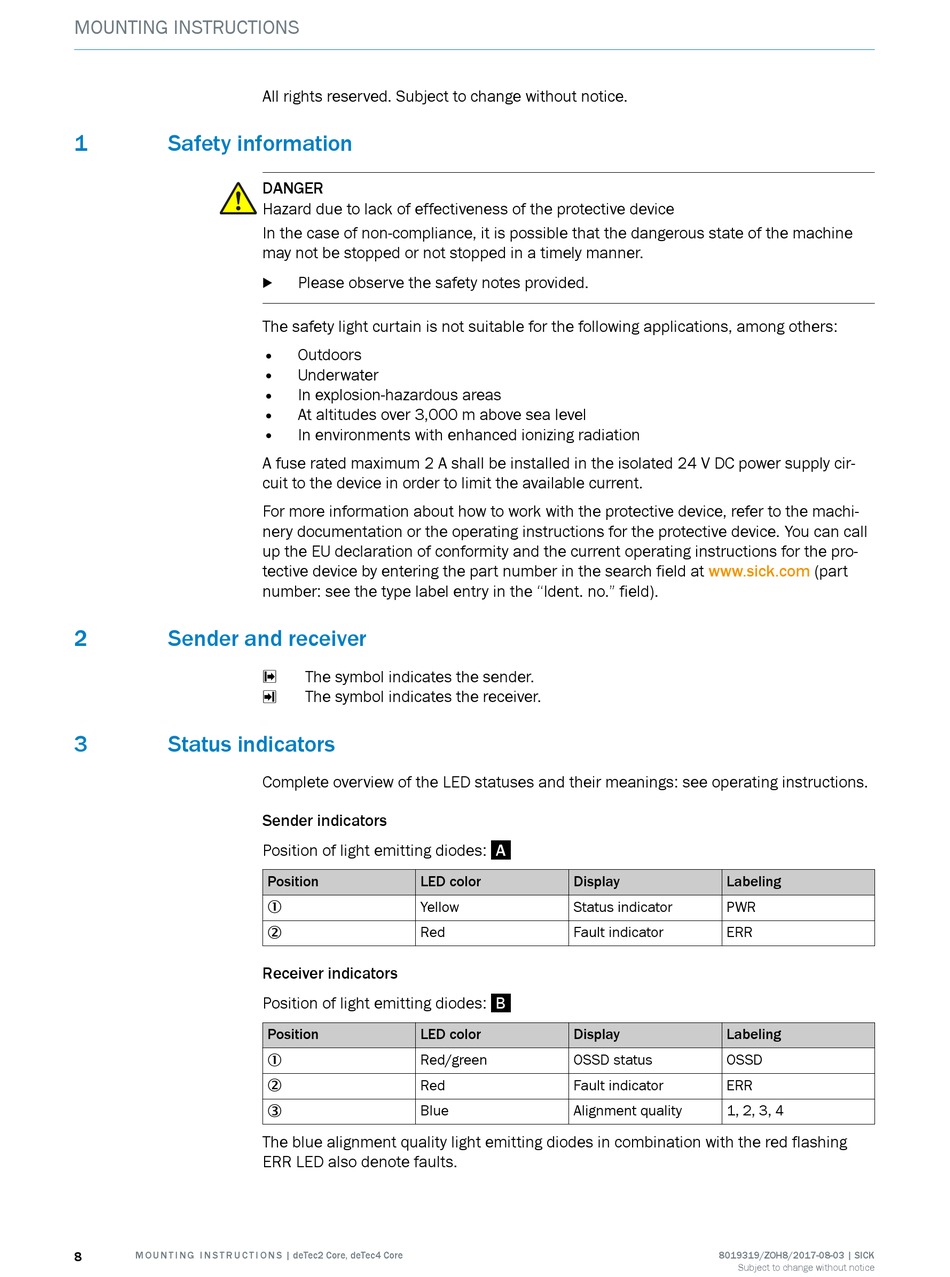

MOUNTING INSTRUCTIONS
1

Safety information

2 Sender and receiver
3

Status indicators

8 M O U N T I N G I N S T R U C T I O N S | deTec2 Core, deTec4 Core
All rights reserved. Subject to change without notice.
DANGER
Hazard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
Please observe the safety notes provided.
b
The safety light curtain is not suitable for the following applications, among others:
• Outdoors
• Underwater
• In explosion-hazardous areas
• At altitudes over 3,000 m above sea level
• In environments with enhanced ionizing radiation
A fuse rated maximum 2 A shall be installed in the isolated 24 V DC power supply cir‐
cuit to the device in order to limit the available current.
For more information about how to work with the protective device, refer to the machi‐
nery documentation or the operating instructions for the protective device. You can call
up the EU declaration of conformity and the current operating instructions for the pro‐
tective device by entering the part number in the search field at
number: see the type label entry in the "Ident. no." field).
The symbol indicates the sender.
s
The symbol indicates the receiver.
r
Complete overview of the LED statuses and their meanings: see operating instructions.
Sender indicators
Position of light emitting diodes:
Position LED color
Yellow
1
Red
2
Receiver indicators
Position of light emitting diodes:
Position LED color
Red/green
1
Red
2
Blue
3
The blue alignment quality light emitting diodes in combination with the red flashing
ERR LED also denote faults.
A
Display
Status indicator
Fault indicator
B
Display
OSSD status
Fault indicator
Alignment quality
www.sick.com (part
Labeling
PWR
ERR
Labeling
OSSD
ERR
1, 2, 3, 4
