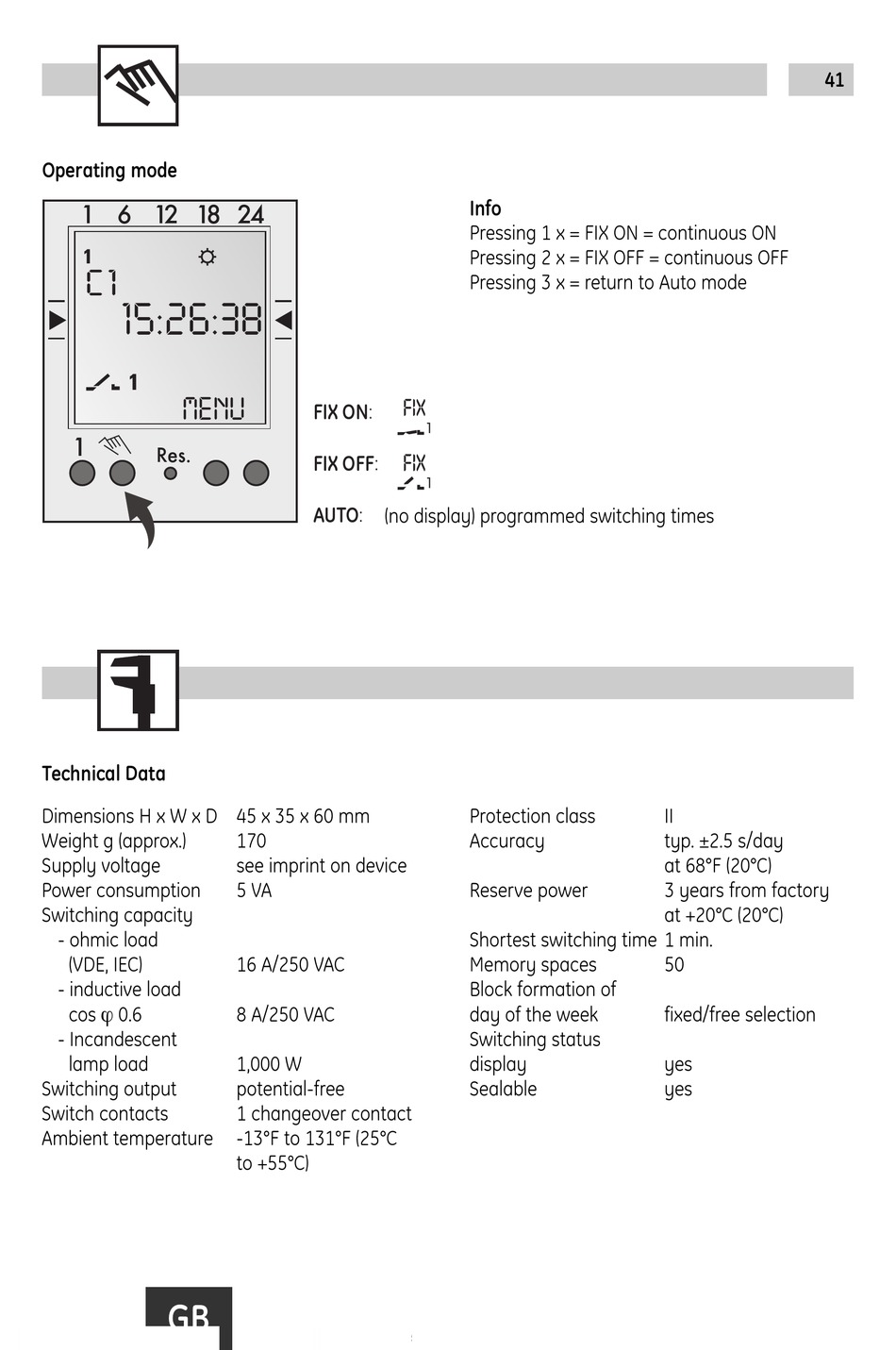

Grasslin Talento 671 plus Bedienungsanleitung Seite 41

Operating mode
1 6 12 18 24
C1
15:26:38
MENU
1
Res.
Technical Data
Dimensions H x W x D 45 x 35 x 60 mm
Weight g (approx.)
Supply voltage
Power consumption
Switching capacity
- ohmic load
(VDE, IEC)
- inductive load
ϕ
cos 0.6
- Incandescent
lamp load
Switching output
Switch contacts
Ambient temperature
GB
FIX
FIX ON:
FIX
FIX OFF:
AUTO: (keine Anzeige) programmierte Schaltzeiten
(no display) programmed switching times
170
see imprint on device
5 VA
16 A/250 VAC
8 A/250 VAC
1,000 W
potential-free
1 changeover contact
-13°F to 131°F (25°C
to +55°C)
Info
Pressing 1 x = FIX ON = continuous ON
Pressing 2 x = FIX OFF = continuous OFF
Pressing 3 x = return to Auto mode
Protection class
Accuracy
Reserve power
Shortest switching time 1 min.
Memory spaces
Block formation of
day of the week
Switching status
display
Sealable
41
II
typ. ±2.5 s/day
at 68°F (20°C)
3 years from factory
at +20°C (20°C)
50
fixed/free selection
yes
yes
