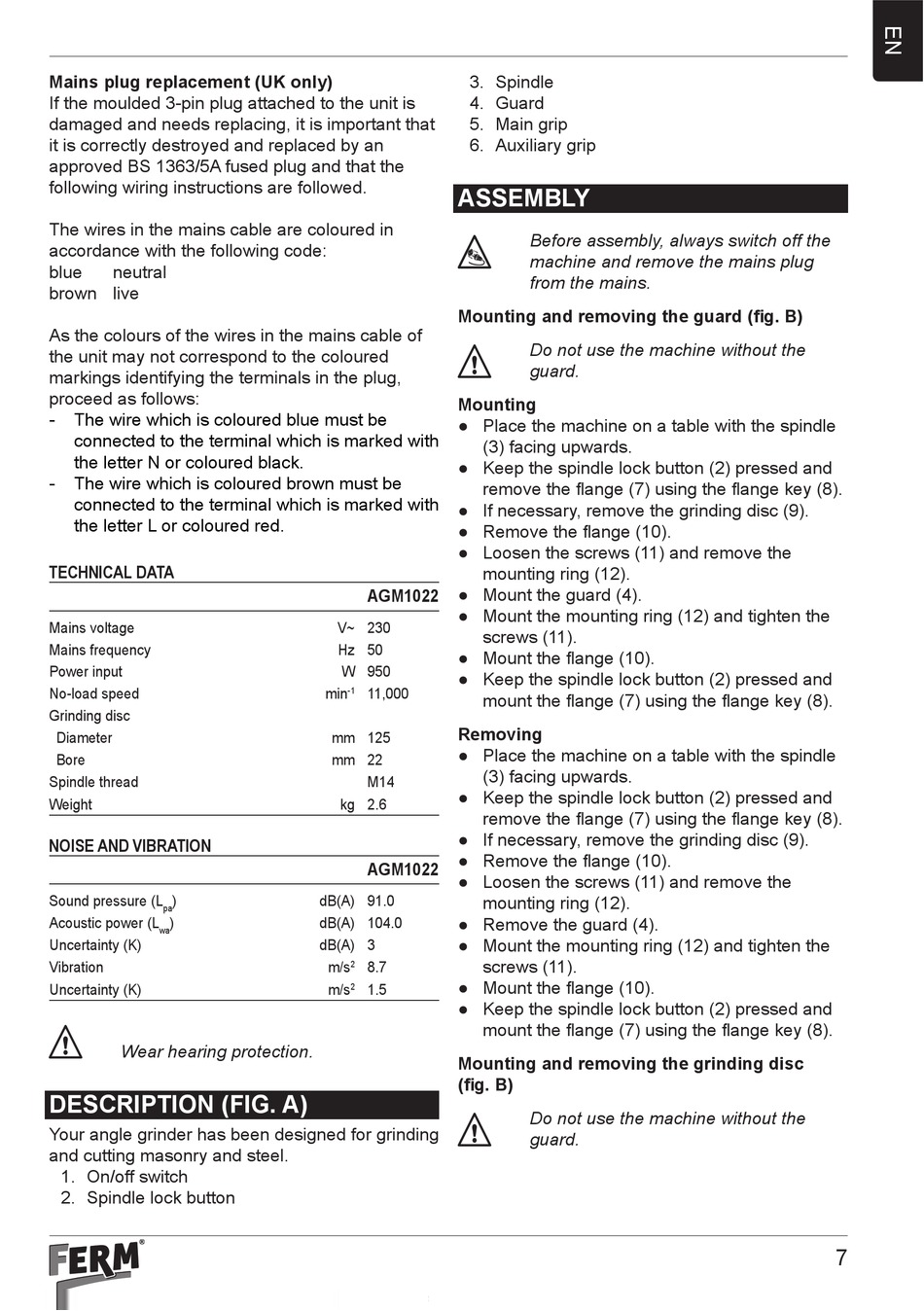

Mains plug replacement (UK only)
If the moulded 3-pin plug attached to the unit is
damaged and needs replacing, it is important that
it is correctly destroyed and replaced by an
approved BS 1363/5A fused plug and that the
following wiring instructions are followed.
The wires in the mains cable are coloured in
accordance with the following code:
blue neutral
brown live
As the colours of the wires in the mains cable of
the unit may not correspond to the coloured
markings identifying the terminals in the plug,
proceed as follows:
- The wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black.
- The wire which is coloured brown must be
connected to the terminal which is marked with
the letter L or coloured red.
TECHNICAL DATA
Mains voltage
Mains frequency
Power input
No-load speed
Grinding disc
Diameter
Bore
Spindle thread
Weight
NOISE AND VIBRATION
Sound pressure (L )
pa
Acoustic power (L )
wa
Uncertainty (K)
Vibration
Uncertainty (K)
2
Wear hearing protection.
DESCRIPtION (fIG. A)
Your angle grinder has been designed for grinding
and cutting masonry and steel.
1. On/off switch
2. Spindle lock button
3. Spindle
4. Guard
5. Main grip
6. Auxiliary grip
ASSEMBLy
4
Mounting and removing the guard (fig. B)
2
Mounting
● Place the machine on a table with the spindle
(3) facing upwards.
● Keep the spindle lock button (2) pressed and
remove the flange (7) using the flange key (8).
● If necessary, remove the grinding disc (9).
● Remove the flange (10).
● Loosen the screws (11) and remove the
mounting ring (12).
● Mount the guard (4).
AGM1022
● Mount the mounting ring (12) and tighten the
V~ 230
screws (11).
Hz 50
● Mount the flange (10).
W 950
● Keep the spindle lock button (2) pressed and
min 11,000
-1
mount the flange (7) using the flange key (8).
Removing
mm 125
● Place the machine on a table with the spindle
mm 22
(3) facing upwards.
M14
● Keep the spindle lock button (2) pressed and
kg 2.6
remove the flange (7) using the flange key (8).
● If necessary, remove the grinding disc (9).
● Remove the flange (10).
AGM1022
● Loosen the screws (11) and remove the
dB(A) 91.0 mounting ring (12).
dB(A) 104.0 ● Remove the guard (4).
● Mount the mounting ring (12) and tighten the
dB(A) 3
screws (11).
m/s 8.7
2
● Mount the flange (10).
m/s 1.5
2
● Keep the spindle lock button (2) pressed and
mount the flange (7) using the flange key (8).
Mounting and removing the grinding disc
(fig. B)
2
Before assembly, always switch off the
machine and remove the mains plug
from the mains.
Do not use the machine without the
guard.
Do not use the machine without the
guard.
