PG-C45X

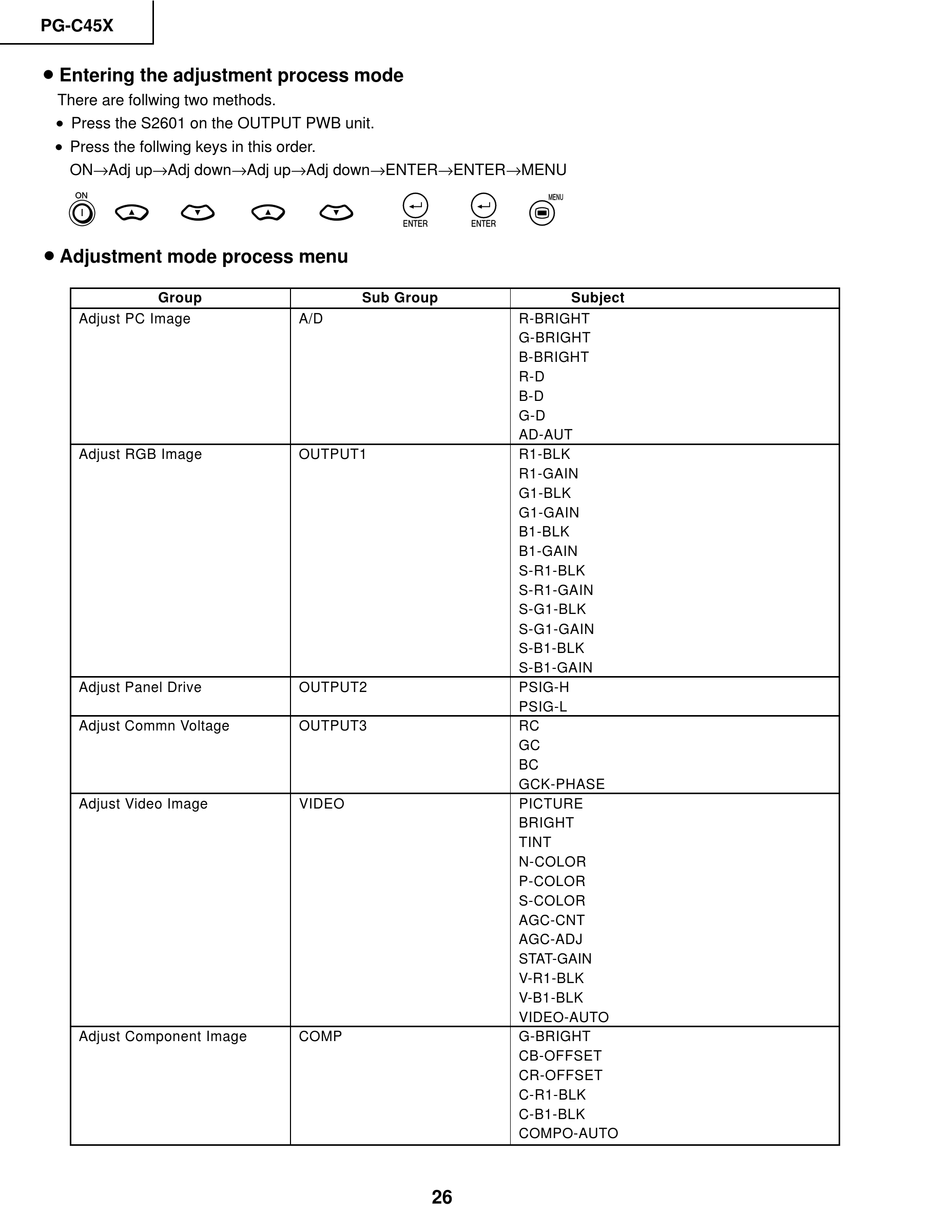

» Entering the adjustment process mode
There are follwing two methods.
» Press the S2601 on the OUTPUT PWB unit.
» Press the follwing keys in this order.
ON→Adj up→Adj down→Adj up→Adj down→ENTER→ENTER→MENU
» Adjustment mode process menu
Group
Adjust PC Image
Adjust RGB Image
Adjust Panel Drive
Adjust Commn Voltage
Adjust Video Image
Adjust Component Image
Sub Group
A/D
OUTPUT1
OUTPUT2
OUTPUT3
VIDEO
COMP
26
Subject
R-BRIGHT
G-BRIGHT
B-BRIGHT
R-D
B-D
G-D
AD-AUT
R1-BLK
R1-GAIN
G1-BLK
G1-GAIN
B1-BLK
B1-GAIN
S-R1-BLK
S-R1-GAIN
S-G1-BLK
S-G1-GAIN
S-B1-BLK
S-B1-GAIN
PSIG-H
PSIG-L
RC
GC
BC
GCK-PHASE
BRIGHT
TINT
N-COLOR
P-COLOR
S-COLOR
AGC-CNT
AGC-ADJ
STAT-GAIN
V-R1-BLK
V-B1-BLK
VIDEO-AUTO
G-BRIGHT
CB-OFFSET
CR-OFFSET
C-R1-BLK
C-B1-BLK
COMPO-AUTO
